Vizualogic VW Touareg System - Manual (Page 8)

Part Number:
Description:
Fitment:
Supplier:
Page 8 of 20
7L6 063 500 XXX
Rear Seat Entertainment
Touareg 2004+
Vizualogic
Publish Date: December, 01 2008

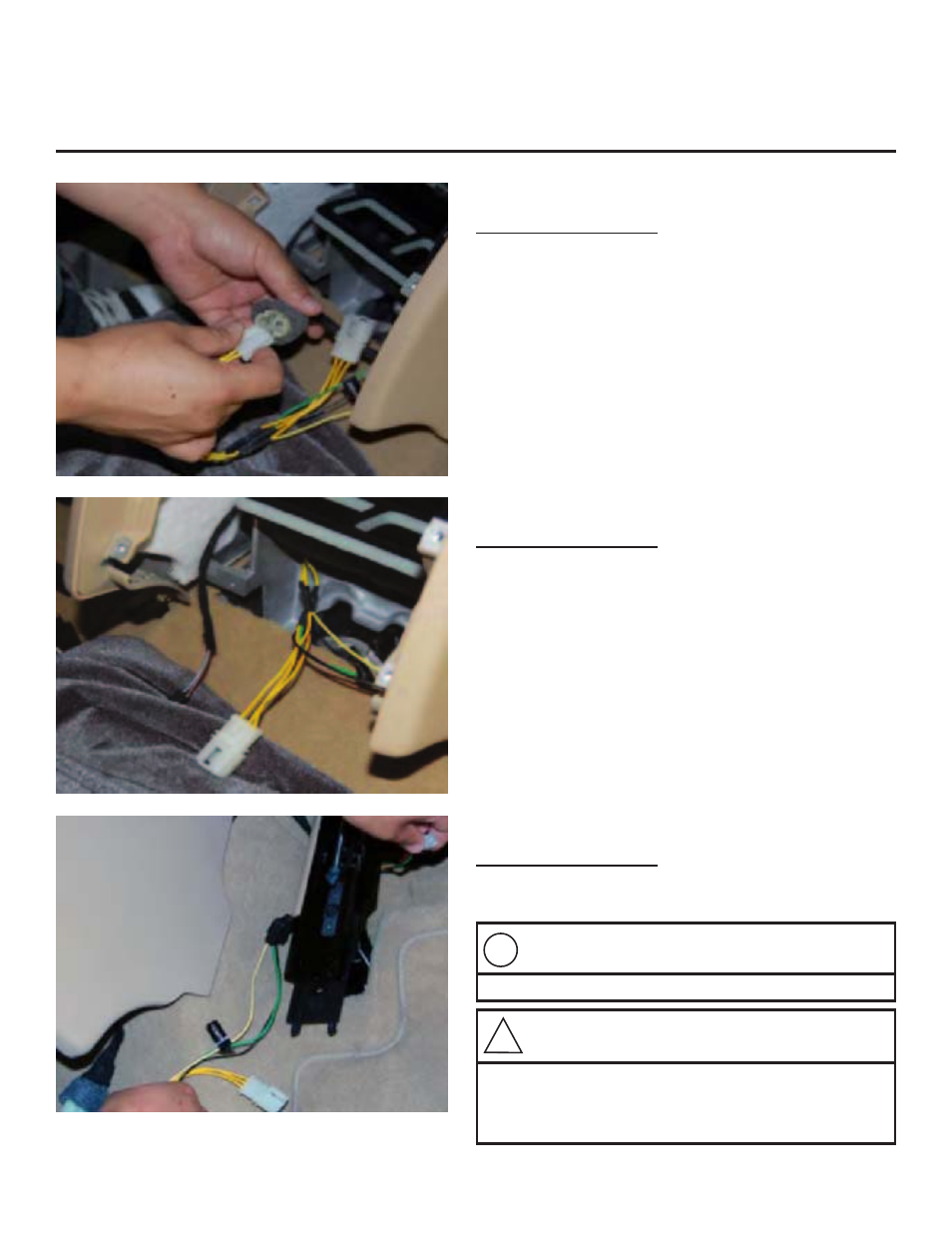

Step #11
A/V Box Installation:
Connect the MALE A/V plug to the FEMALE factory
plug.
Step #12
A/V Box Installation:
You will be left with the A/V FEMALE plug identical to
the factory plug as well as the factory Black plug.
Step #13
A/V Box Installation:
Route the Main A/V Power Harness under the left
(from the back) passenger side seat rail.
!
Note:
Removal of seat rail trim is optional.
!
Warning:
Pay attention to the routing of wires, wiring connections,
and harnesses. Keep clear of moving parts that could
cut, damage or crush them, resulting in damaged or
inoperative system.
