Vizualogic VW Touareg System - Manual (Page 14)

Part Number:
Description:
Fitment:
Supplier:
Page 14 of 20
7L6 063 500 XXX
Rear Seat Entertainment
Touareg 2004+
Vizualogic
Publish Date: December, 01 2008

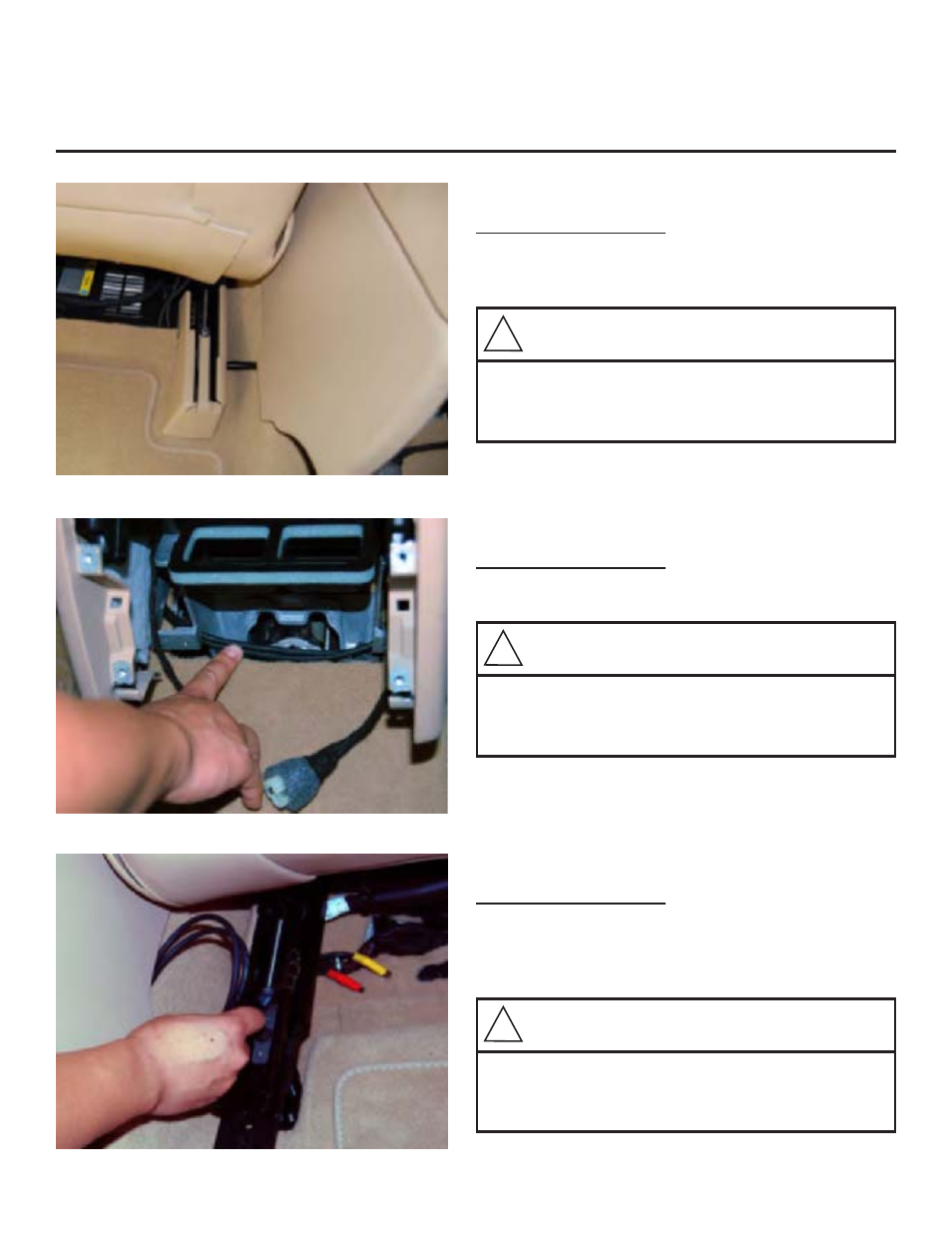

Step #29
Headrest Installation:
With the headrest mounted on the seat, route the
A/V cables under the right seat rail (Driver Seat)
and then under the center console.
!
Warning:
Pay attention to the routing of wires, wiring connections,
and harnesses. Keep clear of moving parts that could
cut, damage or crush them, resulting in damaged or
inoperative system.
Step #30
Headrest Installation:
Make sure to tuck the A/V cables under the carpet
inside the center console.
!
Warning:
Pay attention to the routing of wires, wiring connections,
and harnesses. Keep clear of moving parts that could
cut, damage or crush them, resulting in damaged or
inoperative system.
Step #31
Headrest Installation:
Pull the driver side A/V cables through the right side
of the center console. Route them under the right
seat rail (Passenger seat) as you did with the Main
A/V Power Harness.
!
Warning:
Pay attention to the routing of wires, wiring connections,
and harnesses. Keep clear of moving parts that could
cut, damage or crush them, resulting in damaged or
inoperative system.
