Vizualogic VW Touareg System - Manual (Page 16)

Part Number:
Description:
Fitment:
Supplier:
Page 16 of 20
7L6 063 500 XXX
Rear Seat Entertainment
Touareg 2004+
Vizualogic
Publish Date: December, 01 2008

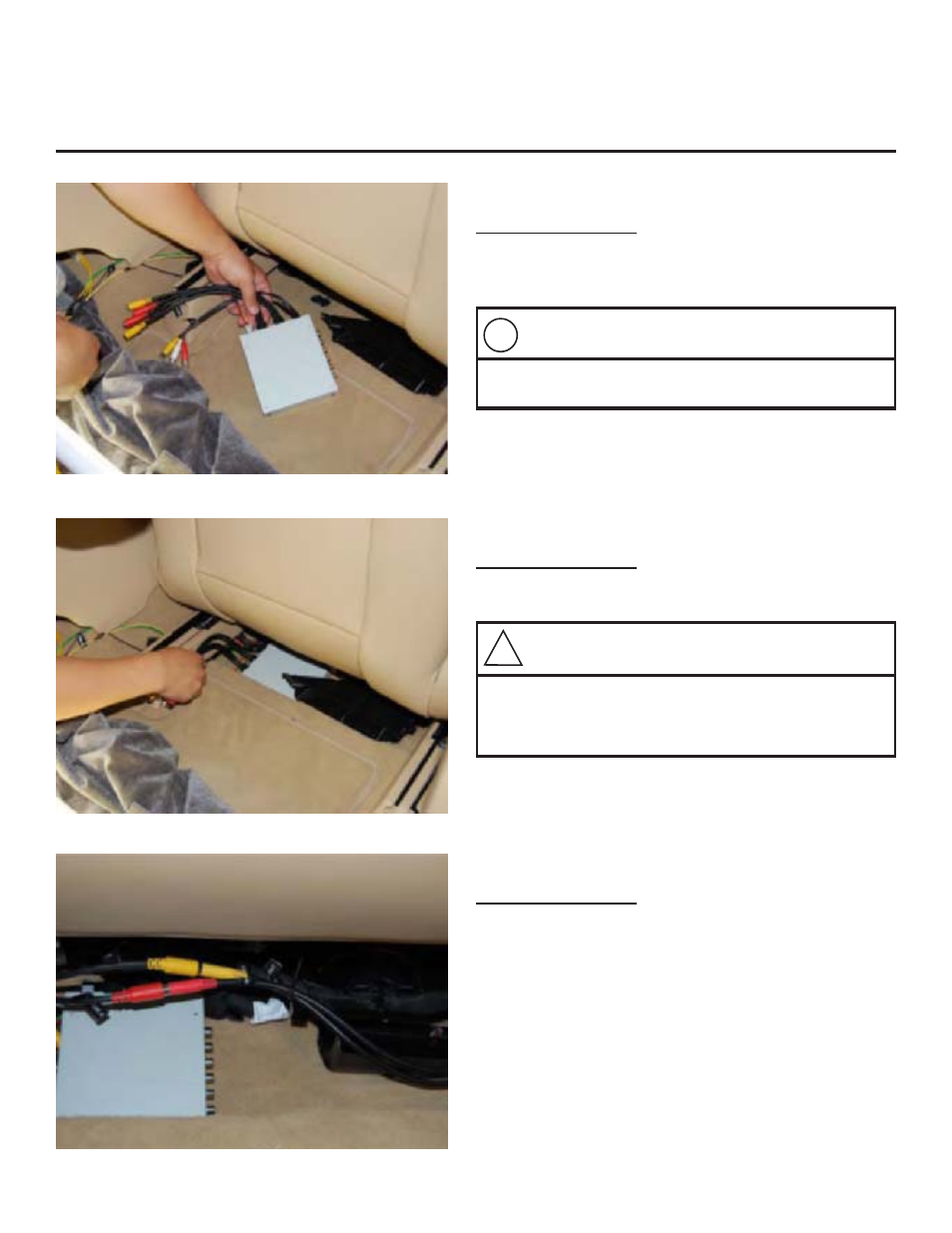

Step #35
A/V Box Location:
Once both headrests have been mounted, the A/V
box can now be tucked away under the passenger
seat next to the air vent.
!
Note:
Connect all power connections to the A/V box
at this time.
Step #36
A/V Box Location:
Connect the A/V cables to the A/V box and tuck
under the left seat rail.
!
Warning:
Pay attention to the routing of wires, wiring connections,
and harnesses. Keep clear of moving parts that could
cut, damage or crush them, resulting in damaged or
inoperative system.
Step #37
A/V Box Location:
Secure A/V cables to existing wire loom with wire
ties.
