Twin City Inline / Cabinet Ventilators - TL Series - Manual (Page 16)

MODELS • T2000L • T3500L
Page 4

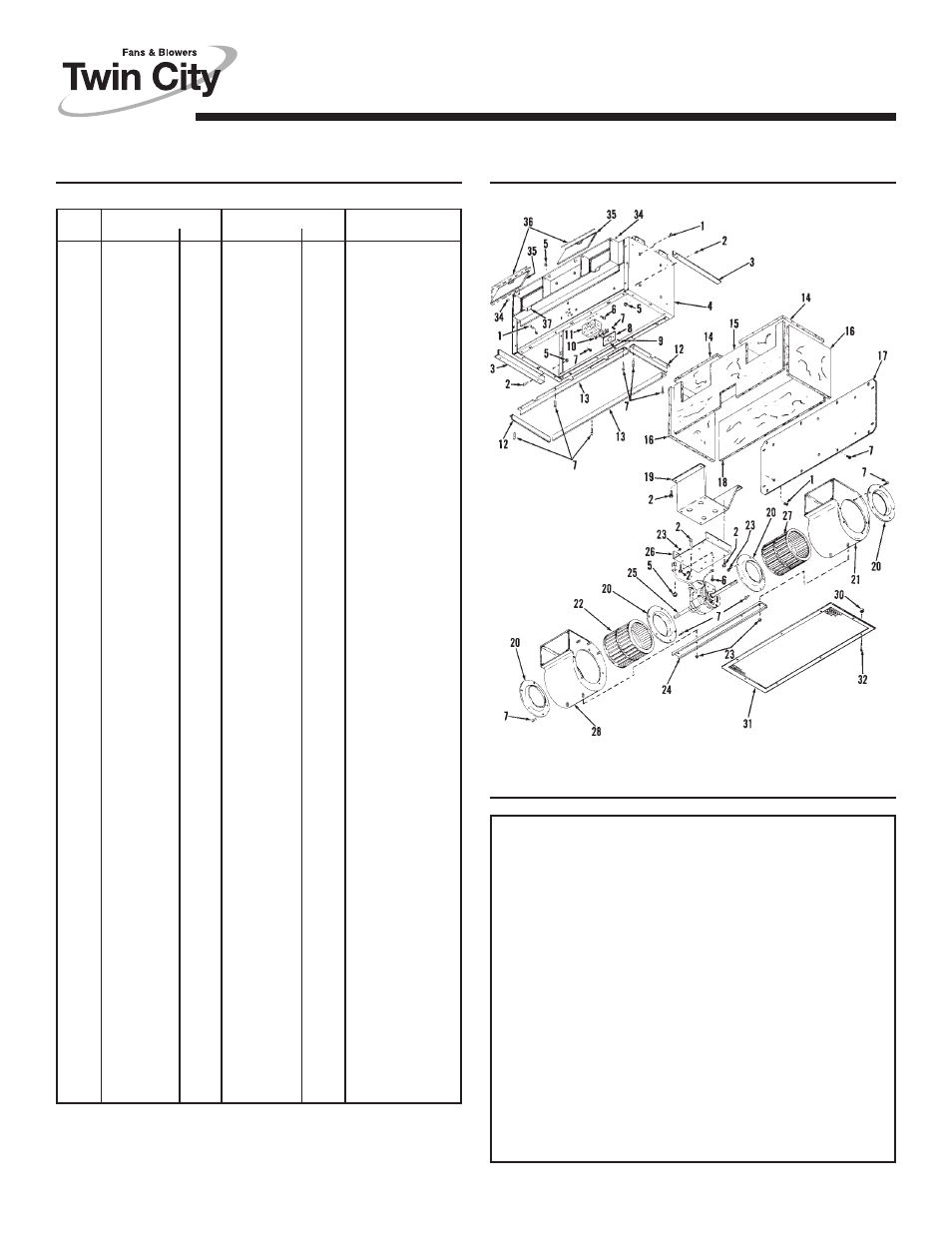

KEY MODEL T2000L MODEL T3500L
NO. PART NO. QTY. PART NO. QTY. DESCRIPTION
1 99420466 27 99420466 27 Insulation Clip
2 99170261 16 99170261 18 #5/16 - 18 x ½
Serrated Hex
Head Screw
3 98006462 2 98006462 2 Mounting Bracket
4 97008107 1 97008108 1 Cabinet Body
5 93260447 12 93260447 14 #5/16 - 18 Lock
Nut
6 99150471 2 ---- -- #10-32 x ½ Green
Ground Screw
7 99150490 42 99150490 44 #10B x 3/8
Serrated Pan
Head Screw
8 99270658 1 99270658 1 Outlet Box Cover
9 99160319 2 99160319 2 #6-32 x 3/8
Machine Screw
10 99270656 1 99270657 1 Receptacle
11 99270659 1 99270659 1 Outlet Box
12 98006364 2 98006376 2 Duct Inlet Flange -
short
13 98006363 2 98006375 2 Duct Inlet Flange -
long
14 99500335 2 99500339 2 Bottom Panel
Insulation
15 99500333 1 99500337 1 Back Panel
Insulation
16 99500334 2 99500338 2 End Panel
Insulation
17 98006699 1 98006700 1 Access Panel
18 99500336 1 99500340 1 Access Panel
Insulation
19 97007450 1 97007451 1 Blower Platform
20 98006475 4 98006476 4 Venturi Ring
21 97007453 1 97007455 1 Right Hand Scroll
22 99020172 1 99020174 1 Blower Wheel -
clockwise
23 99260477 10 99260477 12 ¼-20 Lock Nut
24 98006365 1 98006377 1 Blower Support
Channel
25 99080194 1 99080195 1 Motor
26 98006381 1 98006382 1 Motor Platform
27 99020173 1 99020175 1 Blower Wheel -
counter-clockwise
28 97007452 1 97007454 1 Left Hand Scroll
29 G-102 1 G-103 Grille Kit (contains
Key Nos. 30, 31
& 32)
30 99420470 8 99420470 8 Grille Nut
31 98006477 1 98006478 1 Grille
32 99150472 8 99150472 8 #8-18 x 1¼ Grille
Screw
33 D-100 1 D-101 1 Damper Kit
(contains Key
Nos. 34, 35, 36 &
37)
34 99100379 4 99100379 4 Damper Bushing
35 98006479 2 98006480 2 Damper Flap
36 98006481 2 98006472 2 Damper Rod
37 99760002 2 99760002 2 Damper Flap
Magnet
** 97007448 1 97007448 1 Parts Bag
(contains 4 ea. of
Key Nos. 2 & 5)
Order replacement parts by PART NO. - not by KEY NO.
** Not Shown
SERVICE PARTS SERVICE PARTS
WARRANTY
99042957B
Limitation of Warranties and Claims
Seller warrants to the original purchaser that the goods sold hereunder shall be free from de-
fects in workmanship and material under normal use and service (except in those cases where
the materials are supplied by the buyer) for a period of one year from the date of original
installation or eighteen (18) months from the date of shipment, whichever occurs first. The
liability of seller under this warranty is limited to replacing, repairing, or issuing credit (at cost,
F.O.B. factory and at seller’s discretion) for any part or parts which are returned by buyer during
such period provided that:
a. seller is notified in writing within ten (10) days following discovery of such defects by buyer,
or within ten (10) days after such defects should reasonably have been discovered, whichever
is less;
b. the defective unit is returned to seller, transportation charges prepaid by buyer.
c. payment in full has been received by seller or said products; and
d. seller’s examination of such unit shall disclose to its satisfaction that such defects have not
been caused by misuse, neglect, improper installation, repair, alteration, act of God, or acci-
dent.
No warranty made hereunder shall extend to any seller product whose serial number is altered,
effaced or removed. Seller makes no warranty, express or implied, with respect to motors,
switches, controls, or other components of seller’s product, where such components are war-
ranted separately by their respective manufacturers. THIS WARRANTY IS EXPRESSLY IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, WHETHER STATUTORY OR
OTHERWISE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. In no event shall seller be liable to buyer for indirect, inciden-
tal collateral, or consequential damages of any kind. (BUYER’S FAILURE TO PAY THE FULL
AMOUNT DUE WITHIN SIXTY (60) DAYS OF DATE OF INVOICE SHALL OPERATE TO RE-
LEASE SELLER FROM ANY AND ALL LIABILITY OR OBLIGATION ARISING PURSUANT TO
ANY WARRANTY, EXPRESS OR IMPLIED, WHETHER STATUTORY OR OTHERWISE, IN-
CLUDING ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE, MADE IN CONNECTION WITH ANY CONTRACT FORMED HEREUN-
DER. BUYER AGREES THAT SUCH FAILURE TO PAY SHALL CONSTITUTE A VOLUNTARY
WAIVER OF ANY AND ALL SUCH WARRANTIES ARISING PURSUANT TO SUCH CONTACT.)
TWIN CITY FAN & BLOWER, 5959 Trenton Lane, Minneapolis, MN 55442
