NOTES:
1. Dimension in ( ) is in millimeters.
2. Hook rigging shackles through holes in base rail, as shown in detail “A.”
Holes in base rails are centered around the unit center of gravity. Use
wooden top skid when rigging to prevent rigging straps from damaging
unit.
3. Unit weights do not include economizer. See Table 1 for economizer
weights.
All panels must be in place when rigging. Unit is not designed for handling
by a fork truck. Damage to unit may result.

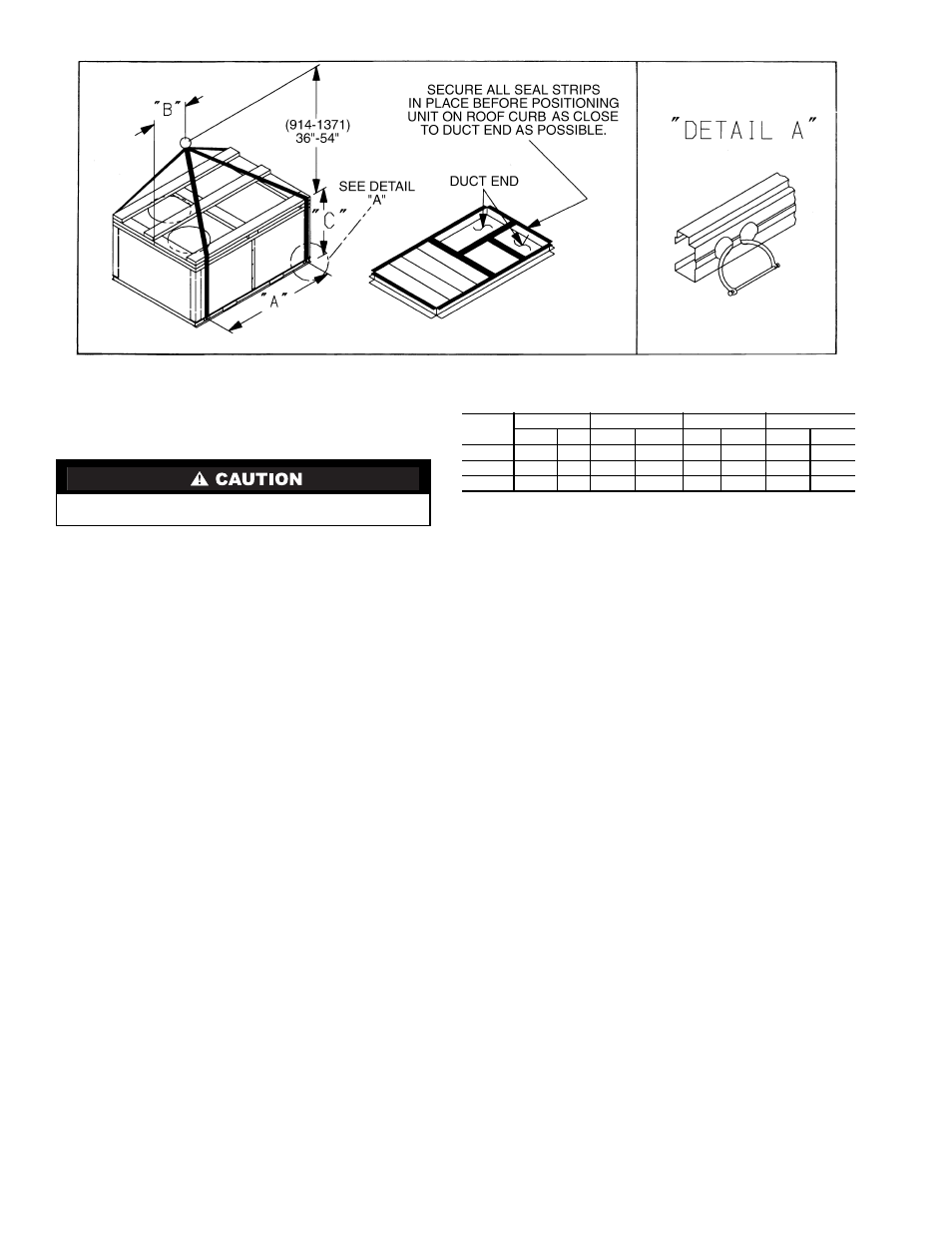

Fig. 5 — Rigging Details
50TFQ
WEIGHT A B C
Lb Kg in. mm in. mm in. mm
008 940 426 77.42 1966.5 41.5 1054 42.12 1070
009 965 438 77.42 1966.5 41.5 1054 42.12 1070
012 1015 460 77.42 1966.5 41.5 1054 42.12 1070
