9.2. Assembling the SR-RF8WP Rigging Frame

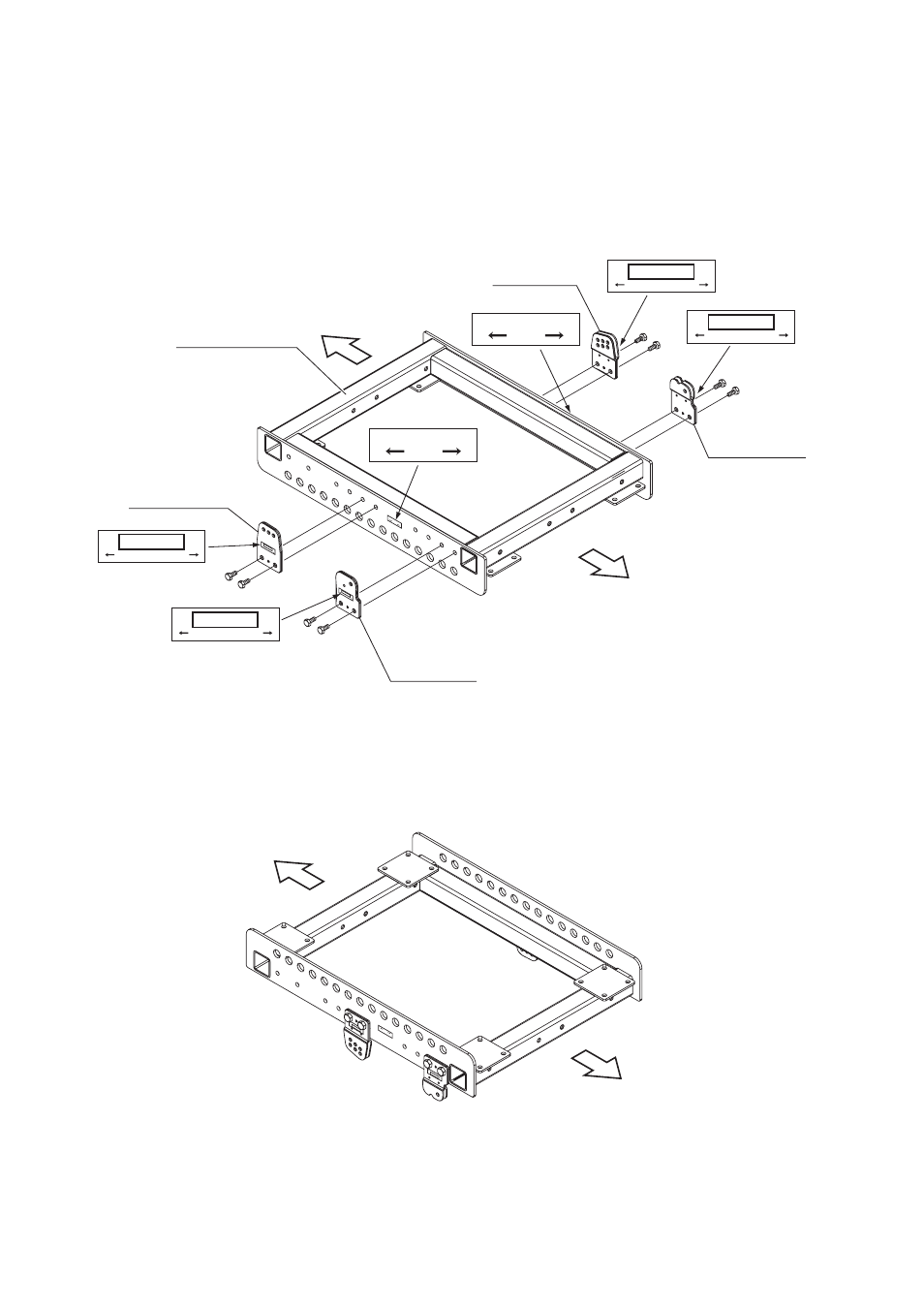

Assemble the rigging frame referring to the figure below.
Ensure that fixing plates are correctly secured using two bolts (including plain and spring washers) supplied
with the rigging frame for each plate.
Since each fixing plate has its own installation position and orientation, refer to the figure for correct assembly.
Be sure that the forward mounting holes are always used in flying applications.
