5.4. Removing the Front Grille
Be sure to use the front grille's three anti-slip pieces when
detaching the grille from the speaker. First carefully pull
the grille by hand from two positions, and then detach from
the one remaining position.
Caution
If you raise only one or two of the three anti-slip pieces,
the front grille may be broken. Be sure to pull its three
pieces out evenly and gradually.
Anti-slip piece
5.3. Mounting the Speaker Using Supporting Rails
The speaker system can also be mounted to walls or
ceilings using supporting rails. Mount the base frame to
the rails using four holes shown in the figure at right.
Follow Steps 2 and 3 on pages 5 – 7.

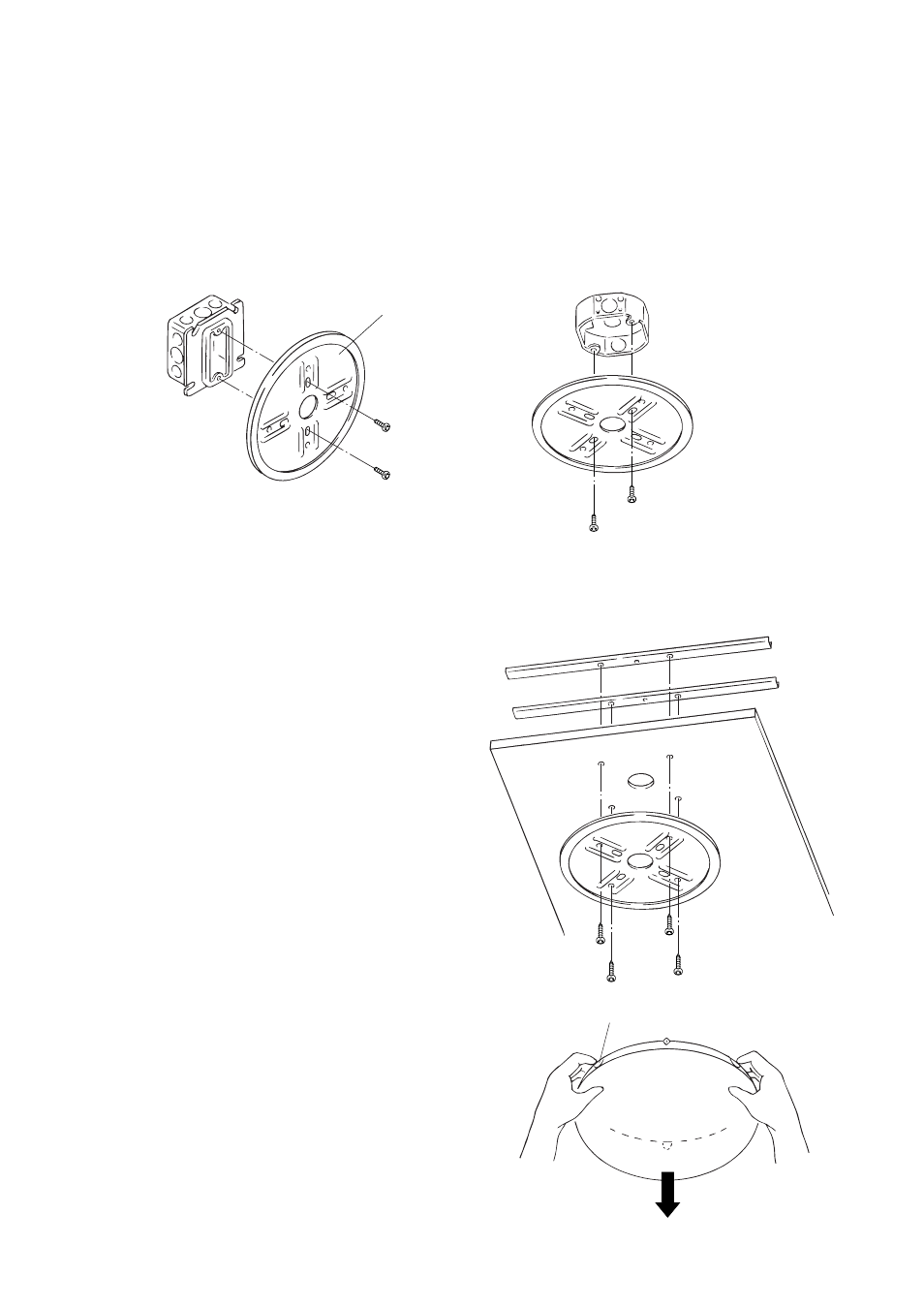

5.2. Mounting the Speaker Using a Electrical Box
The speaker system can be mounted to walls or ceilings using a electrical box*. Mount the base frame to the
electrical box using two holes shown in the figure below. Further mounting procedures are the same as
detailed in Steps 2 and 3 on pages 5 – 7.
* Distance between mounting holes: 69.9 mm (2 3 /
4
˝), 83.3 mm (3 9 /
32
˝) or 88.9 mm (3 1 /
2
˝)
• Mounting example 1 • Mounting example 2
Base frame
Memo
Electrical box mounting screws are attached to the speaker.
