Toa H-2WP - Manual (Page 4)

4
111
268
Front grille (grille frame)
Anti-slip piece
Aiming marker
Lock tab
Detachable input connector
Connector for impedance selection
Front grille (Grille)
5.6
76.4 (3")
21.6
181
69.9
(2
3
/ 4
")
88.9 (3 1 /
2
")
(For mounting to
an electrical box)
(For mounting to
a wall, ceiling or
supporting rail)
(For mounting to an electrical box)
83.3 (3 9 /
32
")
(For mounting
to an electrical
box)

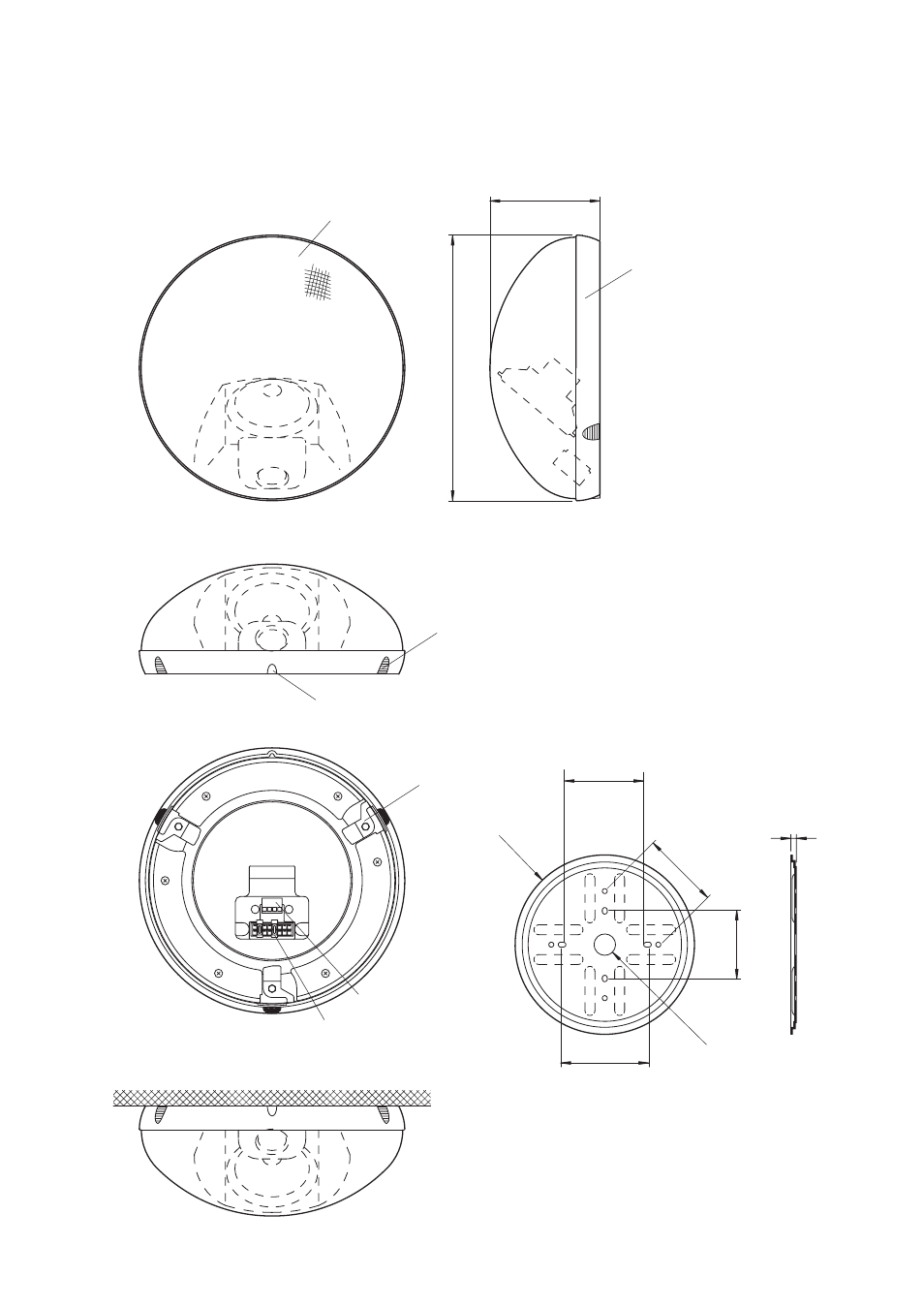

4. NOMENCLATURE
• Accessory (Base frame)
[Front Panel] [Side Panel]
[Side Panel]
[Rear Panel]
[Installation Example]
Unit: mm
