4. RACK ASSEMBLY
4.1. Cabinet Rack Assembly
Note
Be sure to check the name label ( ) attached to each part and the location of each part to be positioned
before assembly.

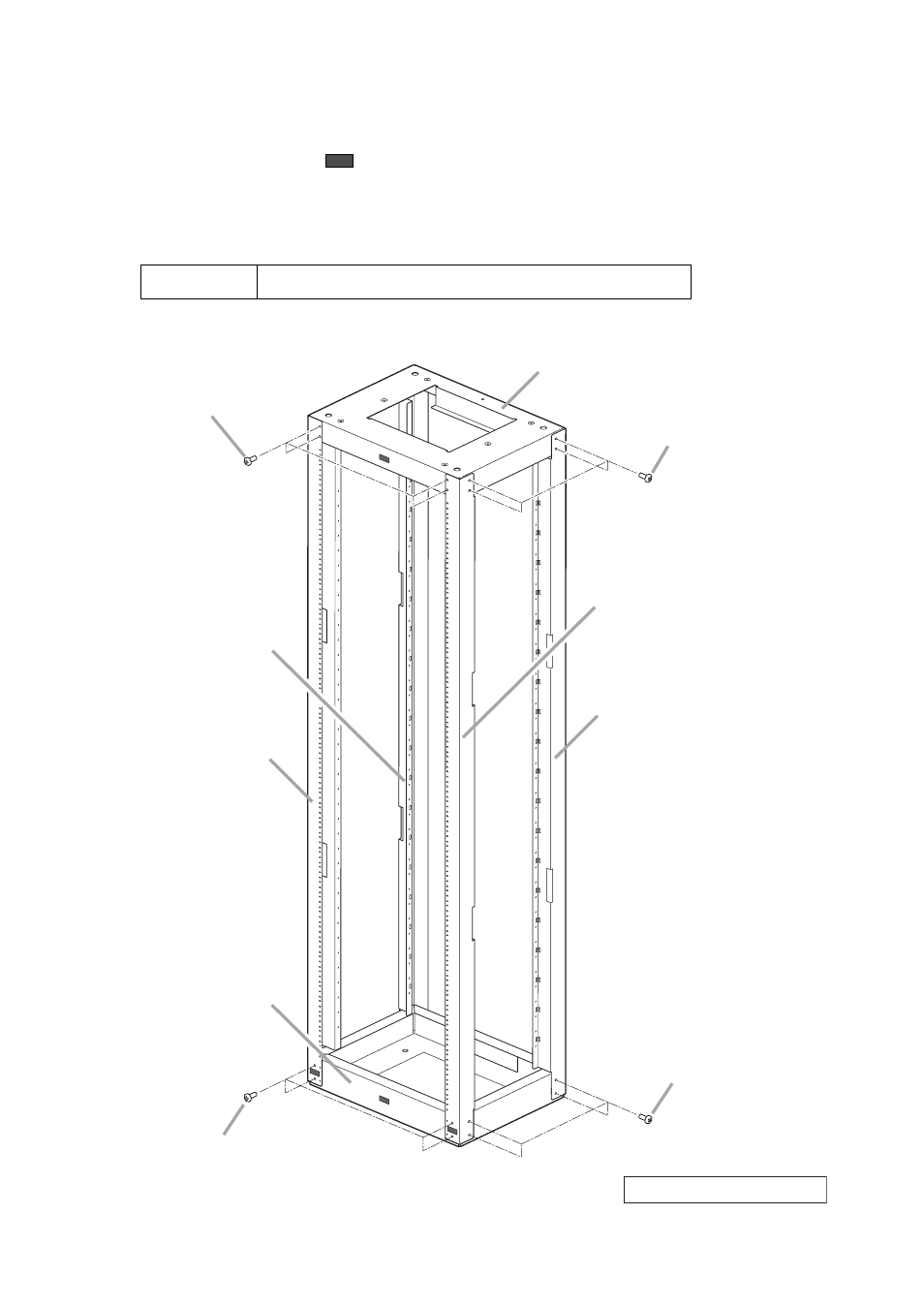

Step 1. Assemble the base, frames, and top plate.
Screws used Bind head taptite screw type B 5 x 12 ..... 32 pieces
Top plate
Rear left frame
Front left frame
Base
Front right frame
Rear right frame
Bind head taptite screw type B 5 x 12
(Use the same type of screw
for the rear side.)
Bind head taptite screw type B 5 x 12
(Use the same type of screw for the rear side.)
Bind head taptite screw type B 5 x 12
(Use the same type of screw
for the left side.)
Bind head taptite screw type B 5 x 12
(Use the same type of screw
for the left side.)
The figure shows the CR-413.
