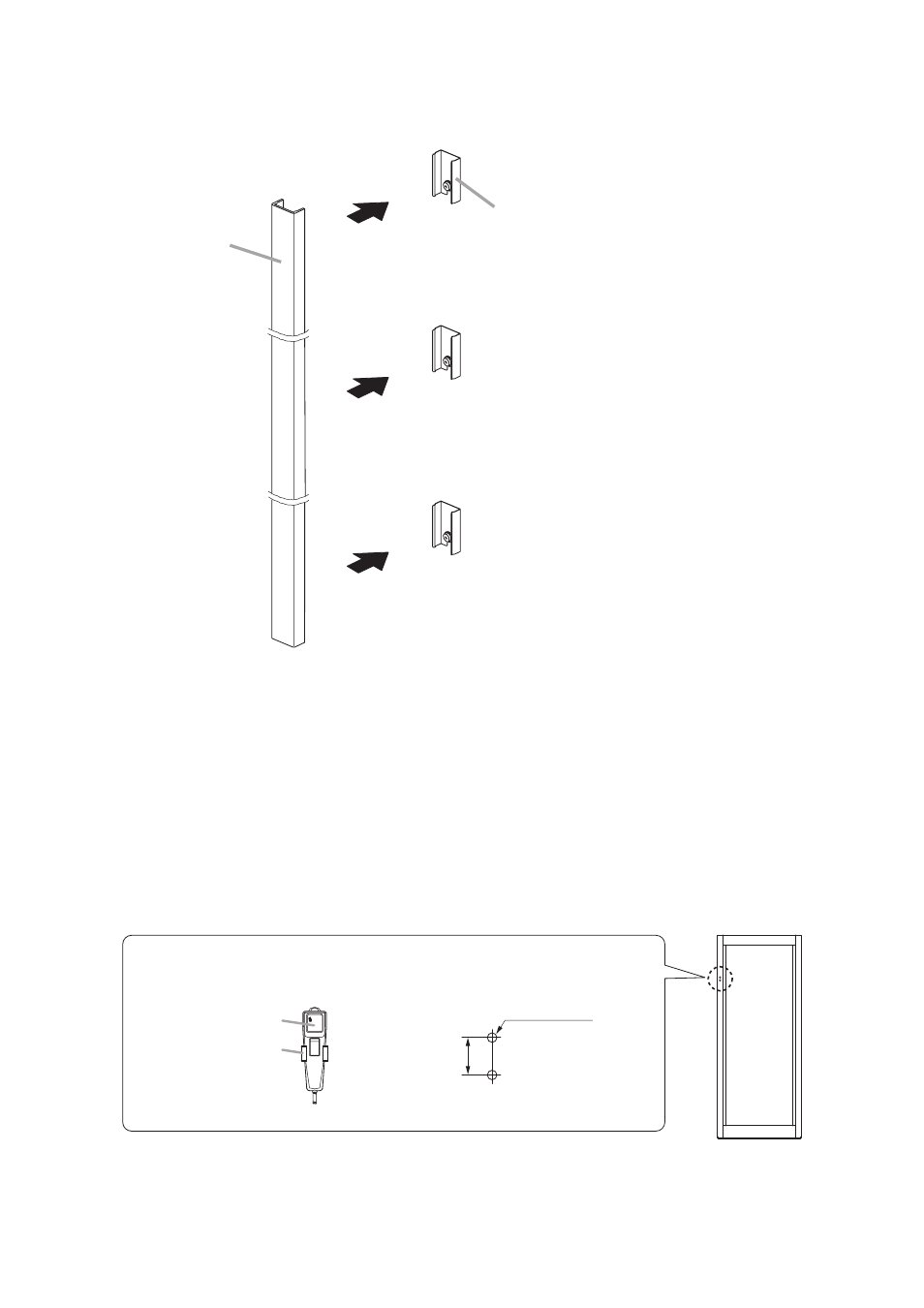

Step 2. Fit the supplied screw cover in the screw cover fittings.
Screw cover
(accessory)
Screw cover fitting attached to the component
CR-273: 6 pieces
CR-413: 8 pieces
4.5. 2202 Microphone Hanger (option) Installation
Install the optional 2202 Microphone Hanger to the rack's front frame to hang a handheld microphone.
Make holes in the desired position on the front frame referring to the figure below.
Note
Since no mounting screws are supplied with the microphone hanger, prepare two 4 x 10 tapping screws
separately.
12.6 (0.5)
2-ø3.2 (0.13)
[View with a microphone hung]
Microphone
Microphone hanger
[Mounting hole dimensional diagram
for the microphone hanger]
Unit: mm (inches)
