16

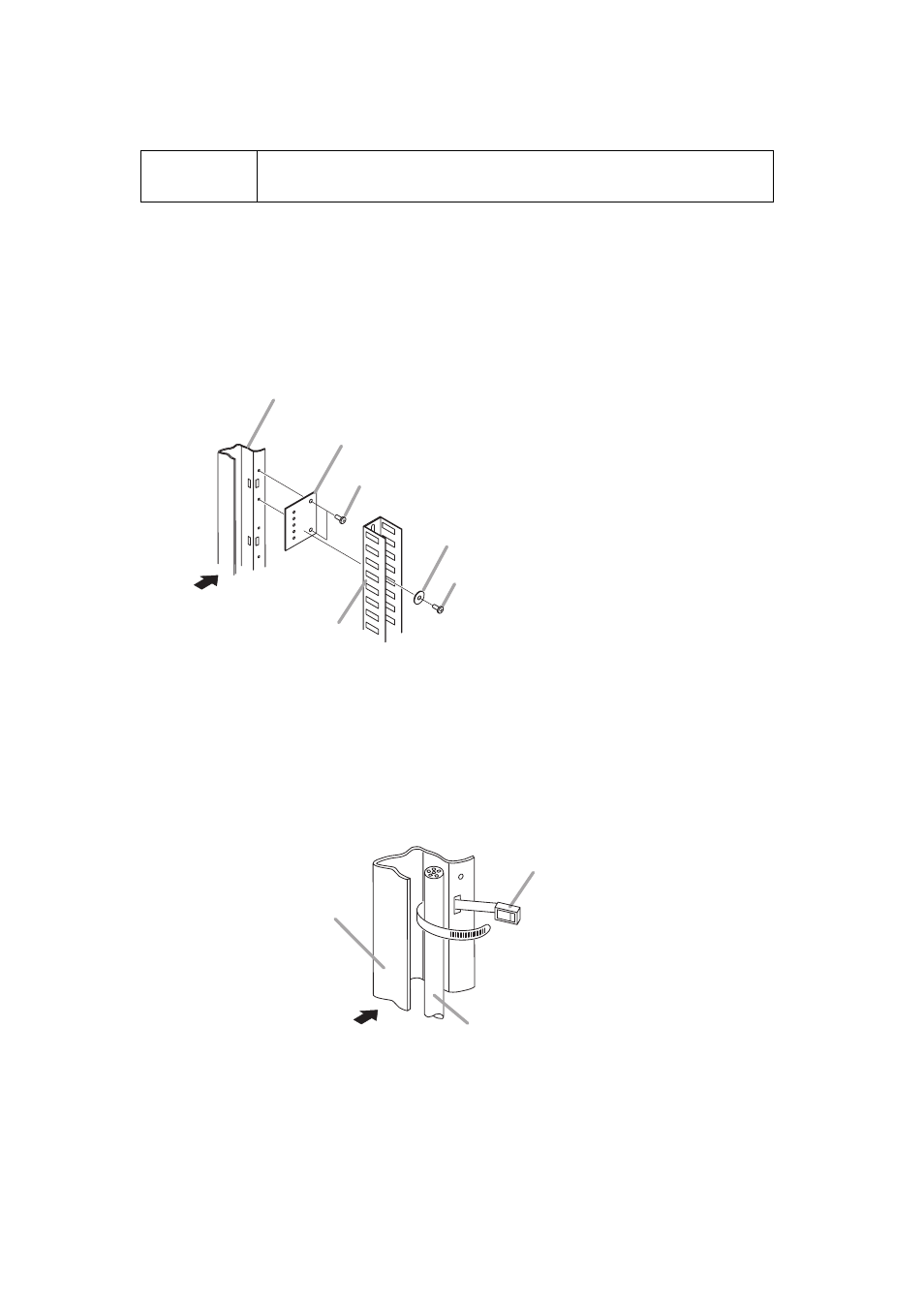

Step 1. Attach the duct mounting bracket to the appropriate position on the rear frame.
Step 2. Attach the cable duct to the duct mounting bracket.
Screws used 4 x 10 tapping screw ..... 3 (per duct mounting bracket)
Plain washer ................. 1 (per duct mounting bracket)
Notes
• The duct mounting bracket cannot be mounted at the place of the supporting runner. To mount, keep the
duct mounting bracket a bit apart from the runner, and attach it to the frame.
• Installing the cable duct reduces the mountable depth of the component to be installed in a rack to 360 mm
(1.18 ft) from the panel mounting surface.
1
2
Rear frame
Rear
Duct mounting bracket *
4 x 10 tapping screw *
4 x 10 tapping screw *
Cable duct *
Plain washer for M4 *
* Commercial items
Rear frame
Rear Cables
Cable tie (accessory)
4.7. Cable Binding
Bundle the cables of each component together using the supplied cable ties as shown below.
