5.5. Installing Eyebolts for Rack Suspension
Commercial suspension eyebolts can be installed on the top cover of the rack.
Note that following commercial parts are required.
M16 eyebolt ............................. 4
Nut for M16 .............................. 4
Plain washer for M16 ............... 4

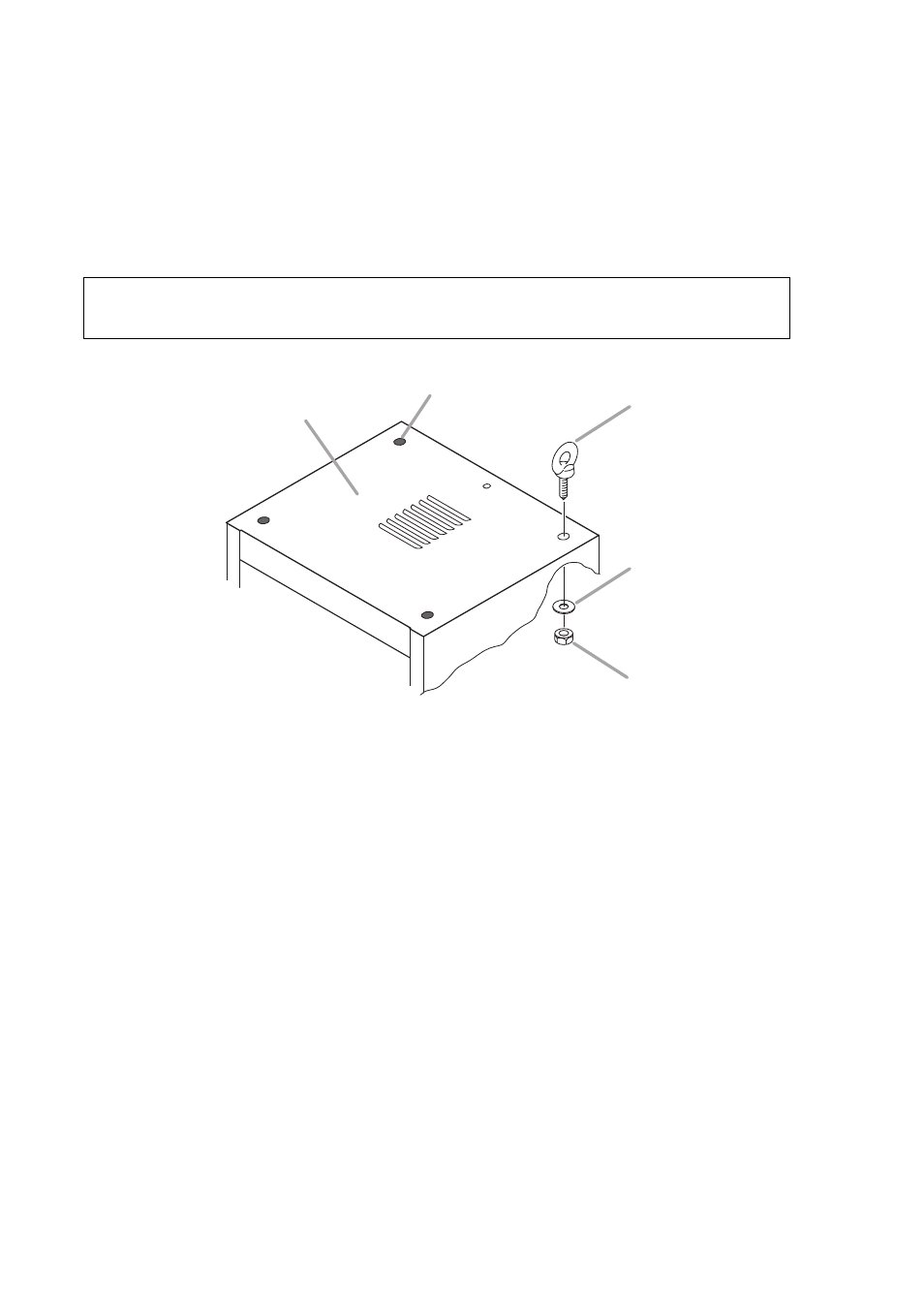

Remove 4 hole plugs on the top cover, then install the eyebolts as illustrated below.
5.6. Making Fine Height Adjustment of Rack
If the rack installed on the floor is unstable or its top cover is not kept horizontal, make fine adjustment of its
height by turning the height adjustment screws on the bottom surface of the base (see pages 5 and 6) using a
standard screwdriver.
5.7. Grounding
Use three M5 screws located at the back of the base for grounding.
Tip
Also, three M5 threaded holes are provided on the front of the base for your convenience.
Important
The total weight of the rack system that can be suspended must not exceed 300 kg (661.38 lb).
Remove 4 hole plugs.
M16 eyebolt
Plain washer for M16
Nut for M16
Top cover
for the CR-273 or CR-413
