Toa A-9240SHM2 - Manual (Page 127)

127

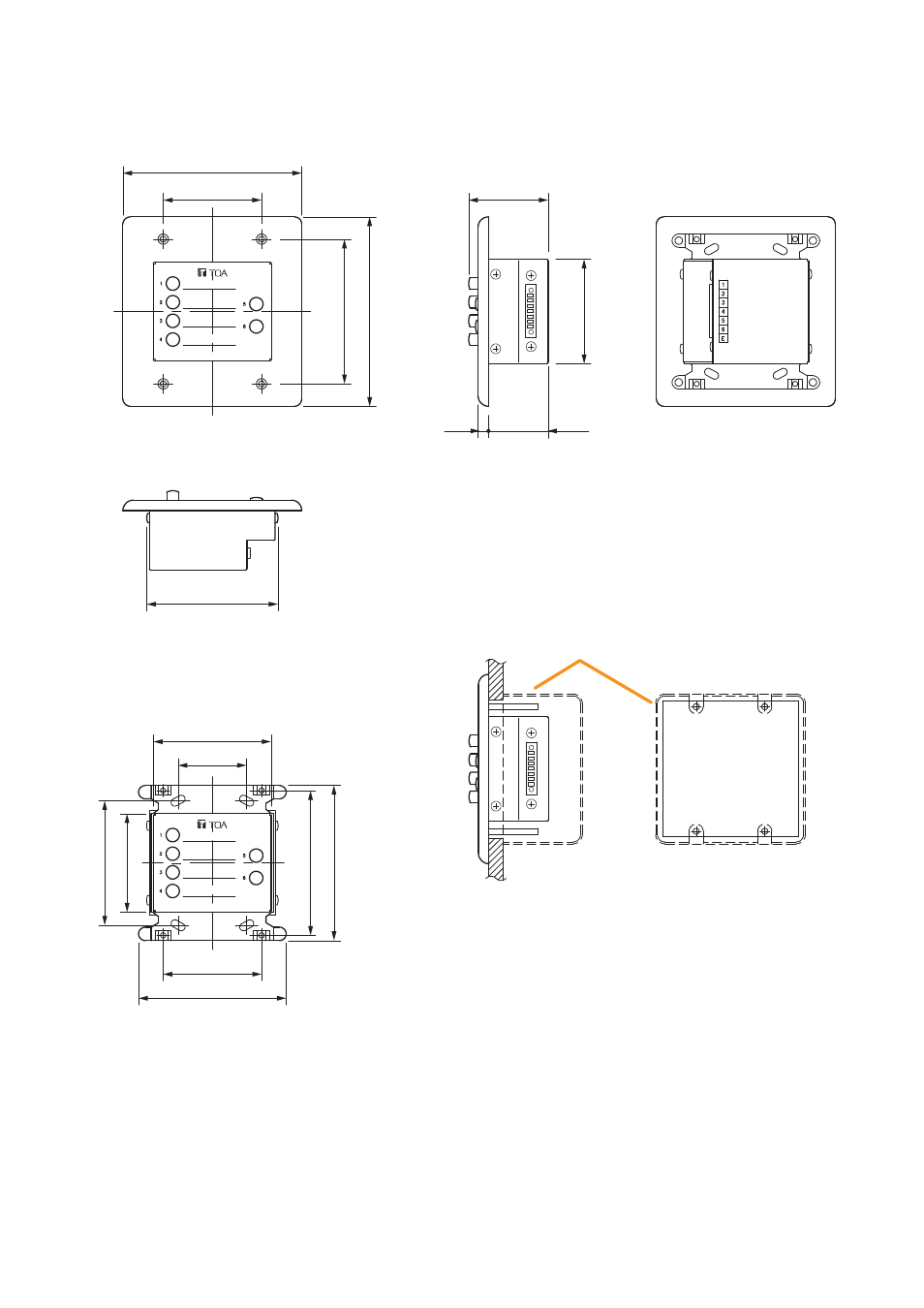

17.4. ZM-9003
Unit: mm (in)
120 (4.72)
53.3 (2.1)
40
(1.57)
7
(0.28)
2-gang electrical box
(American type, not supplied)
88 (3.46)
46 (1.81)
66 (2.6)
99 (3.9)
79 (3.11)
66 (2.6)
97 (3.82)
127 (5)
70 (2.76)
83.5 (3.29)
66 (2.6)
97 (3.82)
104 (4.09)
[Front]
[Bottom]
[Front view without panel]
[Figure when mounted]
[Side] [Rear]
