5. INSTALLATION PRECAUTIONS

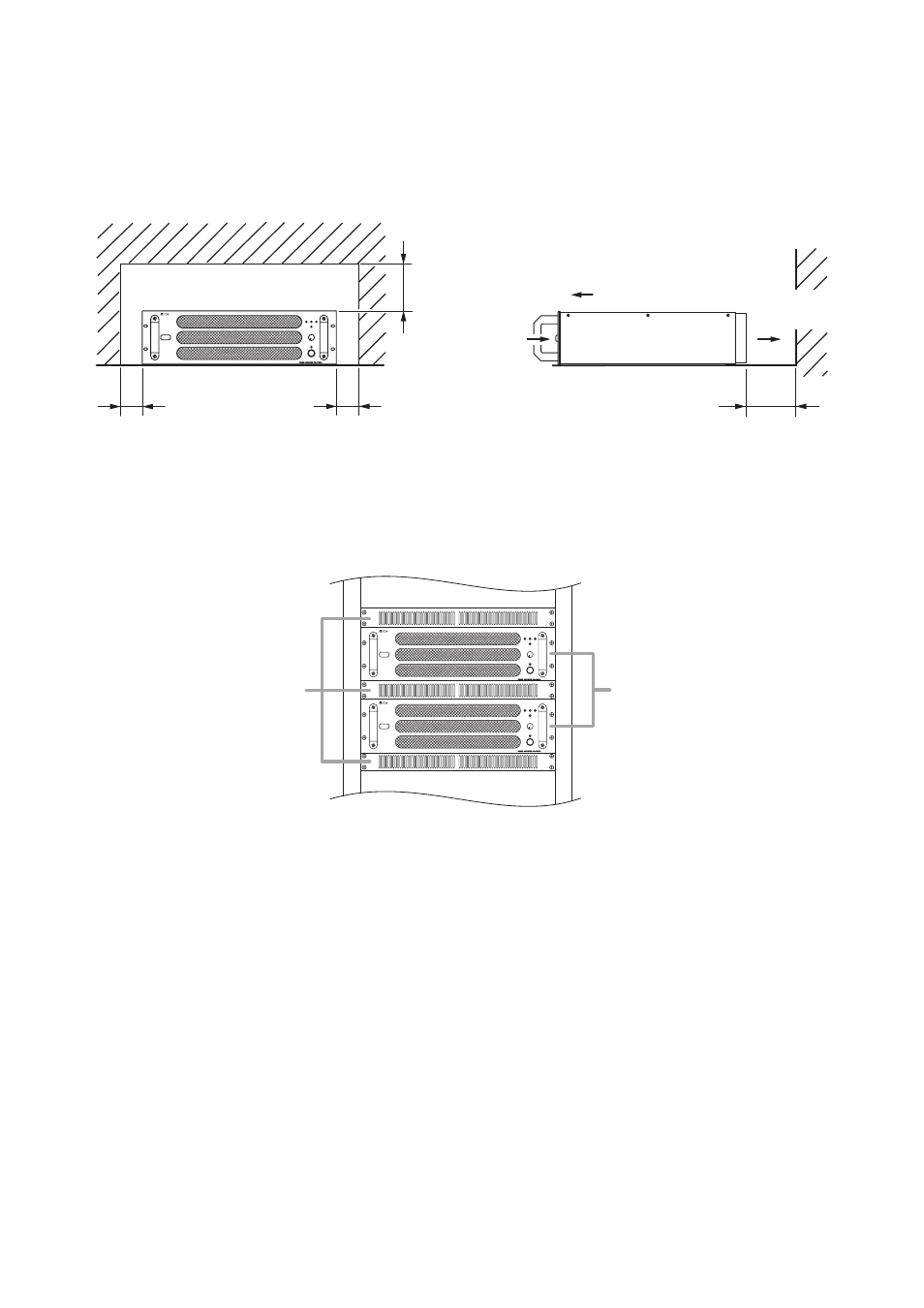

• To ensure proper ventilation and prevent excessive heat buildup, position the amplifier so that there is at
least 15 cm between the top and the ceiling, and at least 5 cm between the sides and any walls. Allow at
least 10 cm behind the amplifier to ensure that the fan air vent in the rear panel does not become
obstructed.
Over 5 cm Over 5 cm Over 10 cm
Over 15 cm
Air intake
vent
Front of amplifier
Air exhaust
vent
Perforated Panels Power Amplifiers
FS-7006PA/7012PA
• When mounting amplifiers in an equipment rack, be sure to space them with perforated panels -- above and
below -- that are each at least 1U (44.5 mm) in height, as shown in the figure below.
• When mounting amplifiers in an equipment rack, allow at least 10 centimeters behind the amplifier to ensure
that the fan air vent in the rear panel does not become obstructed.
• Because the amplifier is heavy (24.8 kg for FS-7006PA, 35.4 kg for FS-7012PA), be sure to reinforce the
fittings used to fix the amplifier in place when mounting in a rack and requiring extra strenght.
• Rack mounting screws are not supplied with the amplifier. Use screws that are appropriate for the specific
type of rack used.
