15
7.4. Removable Terminal Plug Connection
Cautions
• Avoid soldering cable conductor, as contact resistance may increase when the cable is tightened and the
solder is crushed, possibly resulting in an excessive rise in joint temperatures.
• Use cables of AWG 12 – 24.

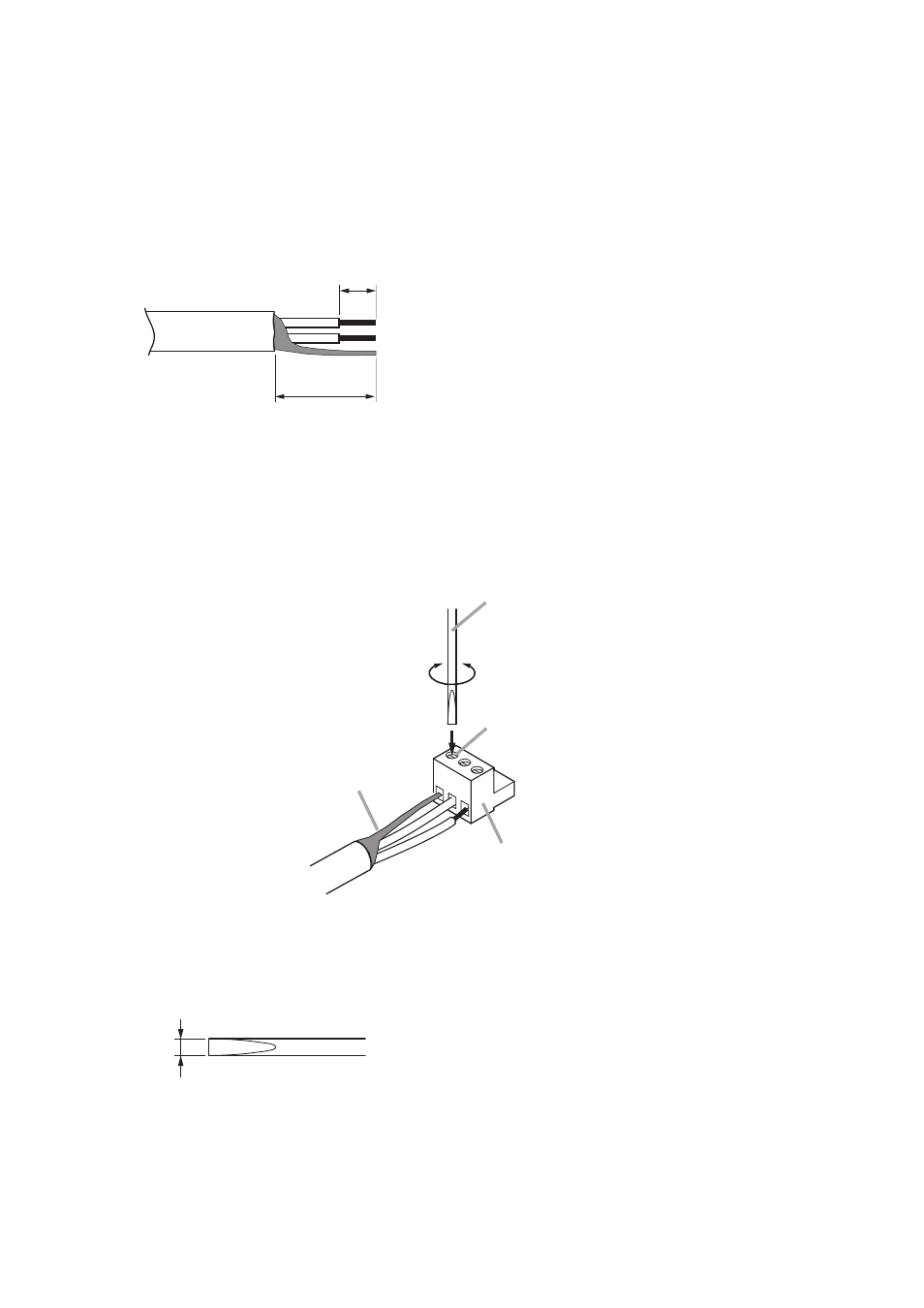

Cable end treatment
7 mm
20 mm
2-core shielded cable
Connector connections
Step 1. Loosen the terminal screw, then insert the cable.
Step 2. Retighten the terminal screw. (Pull on the cable to ensure it is securely connected.)
1
1
2
Slotted screwdriver
Loosens
Terminal screw
Tightens
Shielded cable
Removable terminal plug
Tip
Recommended slotted screwdriver type: Screwdriver with blade that is 3 mm in width
3 mm
