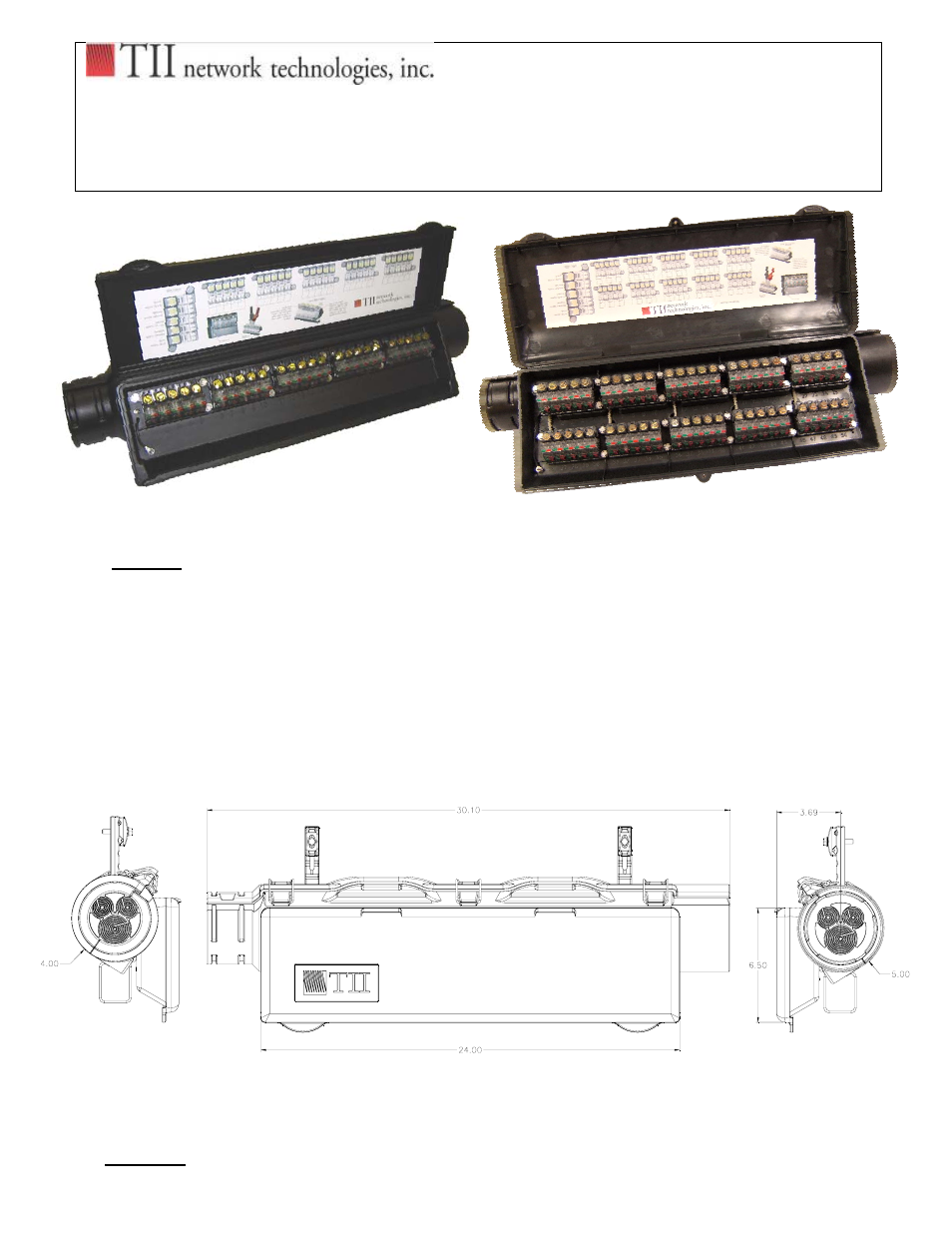

Tii 605 Series User Manual
Tii Equipment

TII P/N: 92221501
1385 Akron Street
TII 605 Series
Copiague, NY 11726
Aerial Terminal Enclosure
Customer Service/Sales 888-844-4720
Pat. Pending
Rev D 11/06
INSTALLATION
NOTE
1. General
1.1 The Series 605 Aerial Terminal Enclosure with external bonding hanger brackets are
designed for fixed count terminating, non-protected up to 50 pair. The 5” x 30” (127mm x
762mm) terminal is available empty to handle configurations of 5 thru 50 pair. It can
accommodate a 3” (76mm) diameter splice bundle and cable up to 1.75”(44mm) diameter.
1.2 The ADX-5T terminal block is filled with a gel sealing compound to provide environmental
protection.
1.3 Dimensions:
2. Warranty
Model 605-50
Model 605-5
