Tii 761S-4M User Manual
Front / rear panel features

P/N 92229201 • Rev B• 3/13/2008
Warranty: If this unit fails during the warranty period, contact tii customer service to authorize return. Unit may be returned prepaid.
Model 761-4M/761S-4M
Indoor Telephone Surface Mount Phone Jack
Installation Note
Description
1. The tii 761-4M is an indoor telephone surface
mount phone jack with two RJ-11 jacks and
one double IDC rocker.
2. The tii 761S-4M utilizes gel sealed insulation
displacement terminations that provide reliable
connectivity.
3. The tii 761-4 Series is for indoor use only.
4. IDC rockers are used to terminate 26-22 AWG
solid wire.
Installation
1. The 761-4 series should be mounted to a
standard single gang electrical wall box.
2. Locate the existing phone jack outlet box
where telephone wires enter the premises.
Disconnect the incoming telephone service to
the existing RJ-11.
3. Turn the 761-4 so the IDC rocker is facing you
(See Figure 1).
4. Pull up the top IDC rocker to the fully open
position, insert MTA wires as shown in Figure
1 until they bottom out, do not strip wires.
5. For Loop-Thru applications, insert premises
wiring to the bottom IDC as shown in Figure 1.
6. Push down the IDC rocker to the closed
position for termination.
Figure 1
7. Dress the wires properly inside the junction
box and secure the 761-4 to the junction box
using the supplied #6 oval head screw’s (See
Figure 2).
1
2
3
1

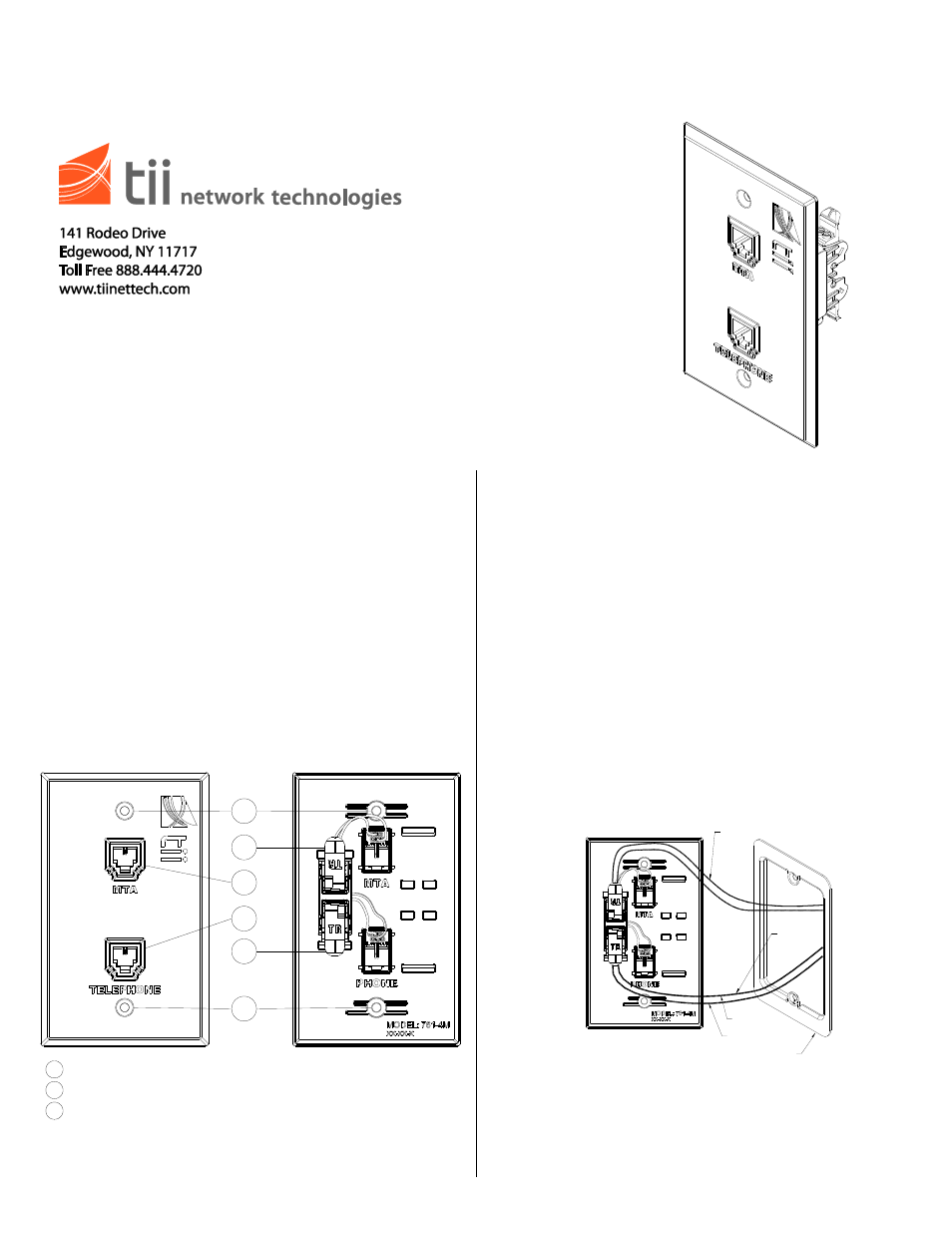

Front / Rear Panel Features
1 Mounting Holes - Use supplied #6 oval head screws to fasten to electrical wall box.
2 RJ-11 Jack - Customer wiring interface.
3 IDC Rockers - MTA wiring interface.
3
2
Red Wire
Green Wire
Existing Junction Box
Premises
Wiring
MTA
Wiring
