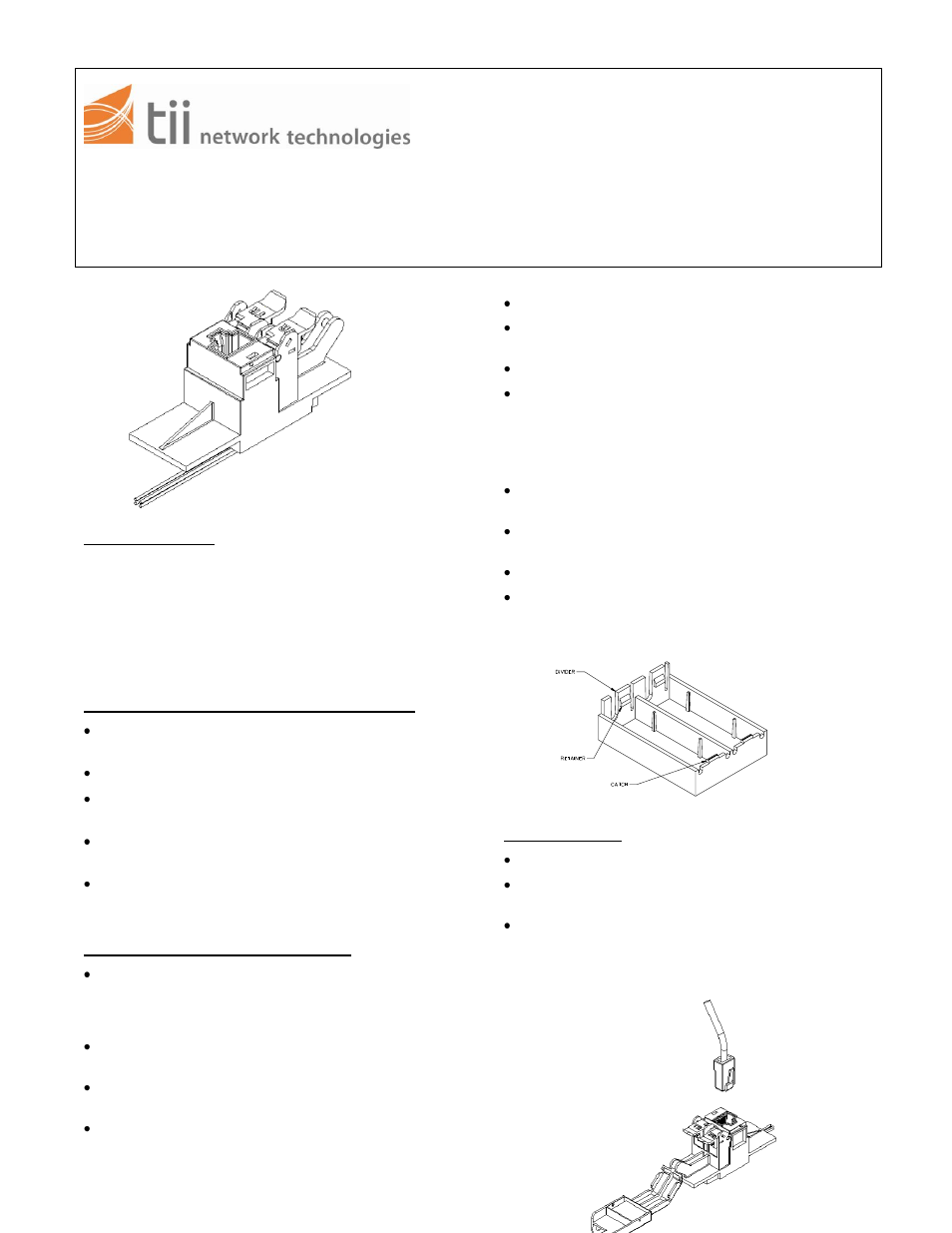

Tii 85 - Manual

141 Rodeo Drive tii 85
Edgewood, NY 11717 Sealed Subscriber Bridge with RJ45
Toll Free 888.844.4720 tii P/N: 92212501
www.tiinettech.com Rev C 01/08
INSTALLATION NOTE
BASIC OPERATION
The tii 85 Sealed Subscriber Bridge with RJ45 (Bridge)
maintains a constant direct connection between customer
and central office service provider. The Bridge is equipped
with a test jack and IDC terminations (see Figure 1). The
test jack is provided as an access for test equipment to
assure a signal is being received and transmitted
properly.
INSTALLING THE SEALED SUBSCRIBER BRIDGE
Remove the Bridge from plastic bag and inspect; if
damaged, replace with an undamaged Bridge.
Hold the Bridge with the cover pivot side on right.
Lower the pivot side edge inside the designated
installation cavity.
Engage the right end ledge under the catch. (See
Figure 2)
Push the left side end down until the latch snaps
closed.
SEALED SUBSCRIBER BRIDGE WIRING
The receive and transmit pairs are connected to the
Bridge. Customer has the option of installing a #10
Master lock around the customer lock hasp (see
Figure 1).
Do not strip wire insulation from wires to be
terminated to Bridge.
Dress terminating wires (to protector) over NID
divider (see Figure 3).
Insert and terminate receive and transmit pair of wires
into sealed IDC station protector (see protector
installation note for further details).
Open customer security cover on Bridge.
Lift both Bridge rockers to the open position as shown
(see Figure 1).
Dress wires around customer security cover.
Hold the customer receive pair wires between thumb
and index finger (approx. 1/8” separation between
wires).
NOTE: Wires should be aligned to the corresponding
holes.
Insert wires into wire guides at the same time until
they bottom out.
While holding wires in wire guides, terminate rocker
with thumb (lower rocker all the way).
Terminate transmit pair to rocker.
Assure both rockers are in the down position and
close customer security cover.
SIGNAL TESTING
Open customer security cover.
Using a portable data test set, insert dataline RJ-45
plug into customer test jack (see Figure 5).
Verify that the portable data test set is able to
communicate with central office.
NOTE: Both rockers must be in the fully lifted position to
complete testing of installation.
Figure 2
Figure 1
Figure 3
