Tii 83 User Manual
Tii Equipment

tii P/N: 92214101
141 Rodeo Drive
tii 83
Edgewood, NY 11717 Customer Bridge Module
Toll Free 888.844.4720
With Auto-Jack
®
RJ-11 Jack
www.tiinettech.com
01/08 Rev B
INSTALLATION NOTE
BASIC OPERATION
Inserting RJ-11 Plug automatically disconnects
customer equipment and connects to central office.
This operation is usually performed during testing of
the telephone line.
By removing RJ-11 plug, customer is automatically
connected to central office. This is the normal
operating mode.
INSTALLING CUSTOMER BRIDGE MODULE
Insert hinge side of module under tab on enclosure.
Dress wires to telco compartment. Pull back retainer
tab, push down module until it snaps in place.
Release retainer tab to hold module firmly in place.
CONNECTING CUSTOMER WIRING
NOTE: The two Tip (Green) and the two Ring (Red)
screws are electrically connected together to provide
increased inside wire connections.
A maximum of 4 telephone wires can be attached to
each wiring bridge screw. Insert wire through
grommet. Strip insulation from wire. Pass wires
behind
hinge
pin.
Connect
wire
to
color
corresponding terminals. (NOTE: If customer wiring
colors do not match Green and Red, inspect the first
jack in premise. Determine which wire colors
connect to Green and Red in jack.)
Connect same wire colors to Green and Red
terminal
screws
on
this
module.
(Example:
White/Blue stripe to Green; Blue/White to Red).
Wrap each clockwise between a washer on screw.
Insure excess wire ends are wrapped tightly around
screw. Tighten screws snugly. Tuck excess wire in
trough. Additional wires should be coiled and stored
in trough. Perform customary tests. Close and snap
cover securely. (NOTE: Use a Mater
®
Lock #10 or
equivalent (sold in local stores) when it is desirable
to lock individual covers.)
TESTING PHONE LINE
(CAUTION: INSERT A PLUG INTO TEST JACK
PRIOR TO ANY WIRING CHANGES)
Plug a working phone directly into the test jack.
WAIT ONE MINUTE. Lift receiver. If problem goes
*RJ11 Plug is not required for normal operation

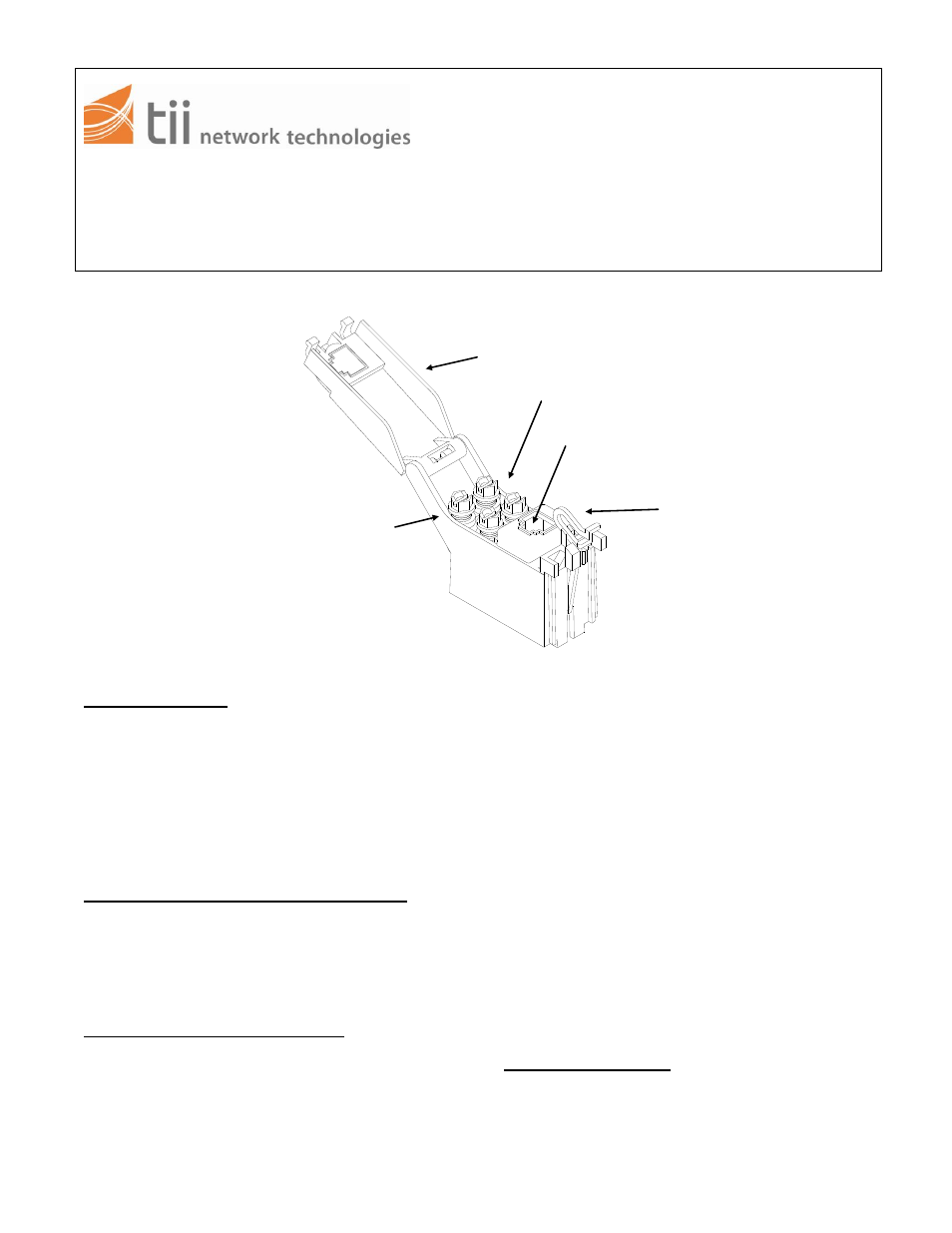

Customer Security Cover
Customer Test Jack (Auto-Jack
TM
)
Customer Lock Hasp
Customer Premise Connections
Customer Wiring Connectors
