Tii FET1 Series User Manual
Page 2
Wiring
1. Guide the Telco Drop Cable through the left
split entry grommet.
2. Splice the Telco Drop Cable and the Customer
Fiber Cable together as required.
3. Push the tie-wrap through the provided slots
on the slack tray, wrap over the FTTX Cable
and tighten the tie-wrap.
4. Wrap
excess
Customer Fiber Cable clockwise
around the slack tray.
5. Then insert the SC connector into the provided
SC Adapter.
6. Insert the SC Connector, Customer Out Fiber
Cable to the opposing side of the SC Adapter.
7. Guide the Customer Fiber Cable through the
right Customer Exit Grommet.
8. Close the cover until it snaps shut.

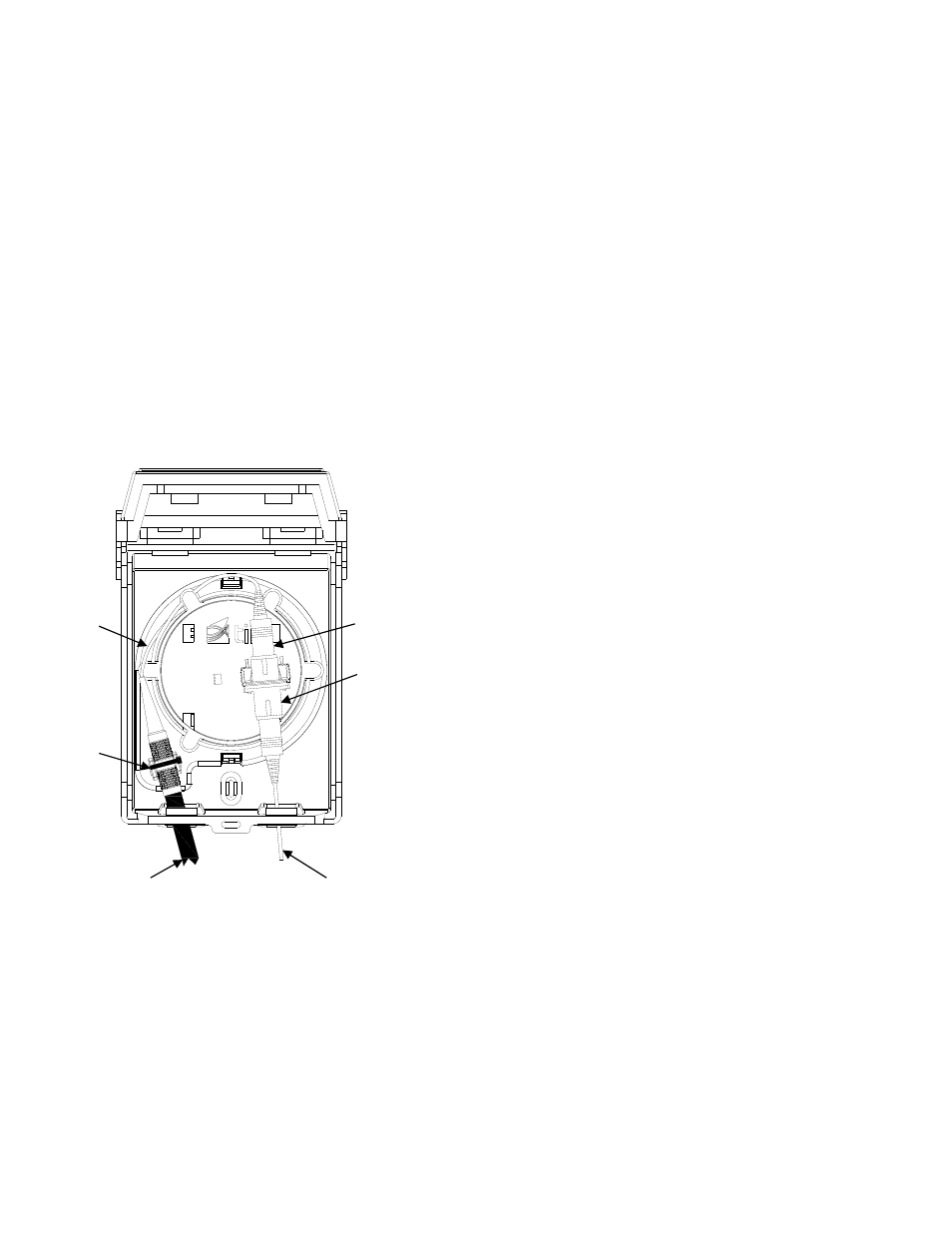

Figure 3
Tie-Wrap
Telco Drop
Cable
Customer Out
Fiber Cable with
SC Connector
SC Adapter
Provided
Customer Fiber
Cable with SC
Connector
Slack
