Tii 169F SERIES User Manual
Page 2
Wiring
1. Guide the Telco Drop Cable through the left
split entry grommet.
2. Using the FTTX Connector, splice the Telco
Drop Cable and the Customer Fiber Cable
together as required.
3. Install the already spliced FTTX Connector to
the slack tray strain relief using a tie-wrap.
Push the tie-wrap through the provided slots
on the slack tray, wrap over the FTTX
Connector and tighten the tie-wrap.
4. Wrap excess Customer Fiber Cable clockwise
around the slack tray.
5. Then insert the SC connector into the provided
SC Adapter.
6. Insert the SC Connector, Customer Out Fiber
Cable to the opposing side of the SC Adapter.
7. Guide the Customer Fiber Cable through the
right Customer Exit Grommet.
8. Close the cover until it snaps shut.

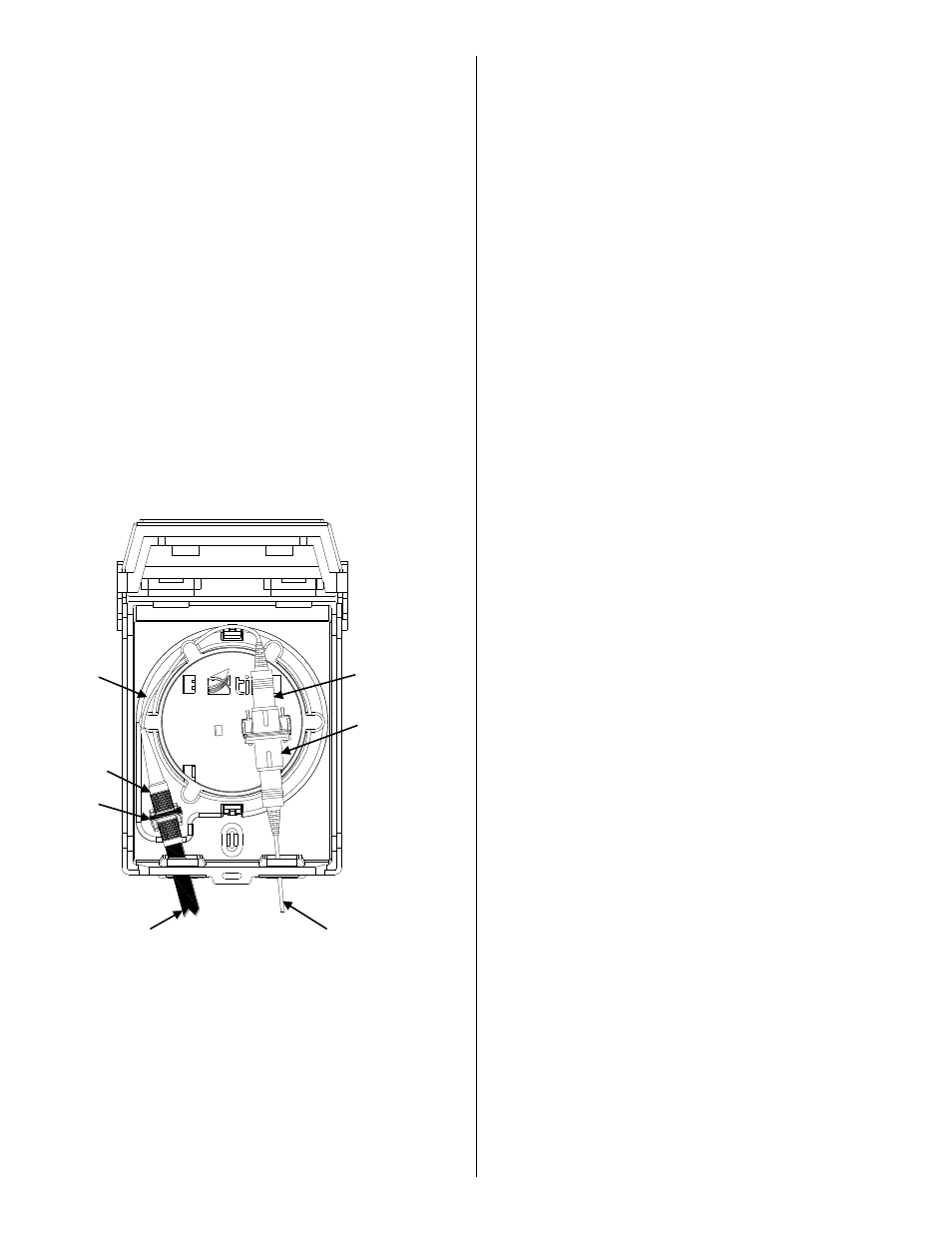

Figure 3
Tie-Wrap
FTTX
Connector
Telco Drop
Cable
Customer Out
Fiber Cable with
SC Connector
SC Adapter
Provided
Customer Fiber
Cable with SC
Connector
Slack Wire
