Strip and insert a #12 (minimum) ground wire into the hole
provided on the surge protector (Figure 3-1). Turn screw
until wire is compressed and tight connection is made.
Series 210FF
Mount protector to an appropriate ground block using
supplied hardware (Figure 2-2).

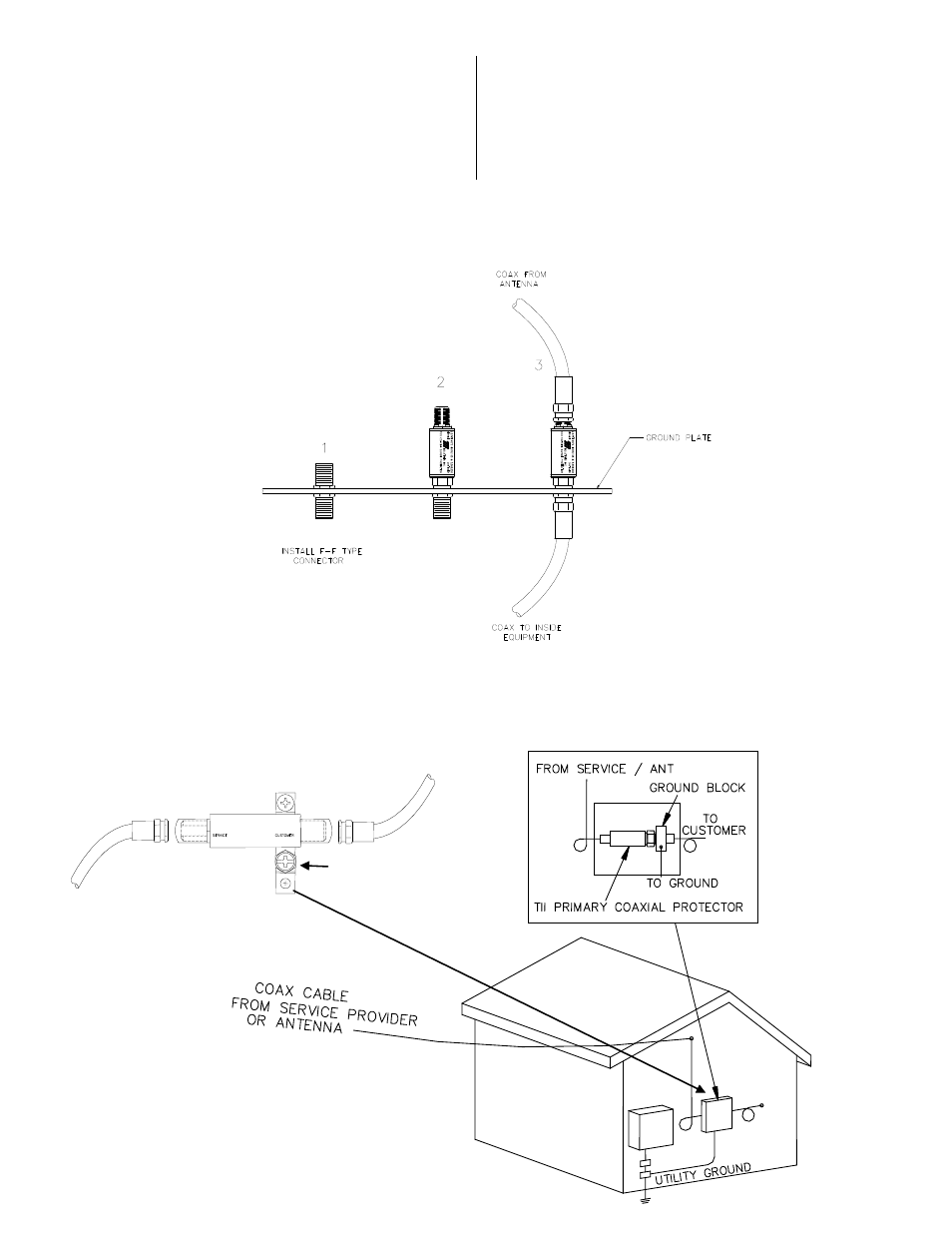

Attach drop cable to “SERVICE” side of the protector as
shown in Figure 3-2.
Attach customer cable to “CUSTOMER” side of the
protector as shown in Figure 3-2.
Strip and insert a #12 (minimum) ground wire into the hole
provided in the ground block. Turn screw until wire is
compressed and tight connection is made.
Figure 2
Figure 3-2
Figure 3
SERVICE
ANTENNAE
CUSTOMER
EQUIPMENT
GROUND
CONNECTION
Figure 3-1
