Tie Down Jet Rail - Manual (Page 7)

11. Assemble Winch Handle
Attach the winch handle to the winch. Turn clockwise until handle turns
gears. Place spring in handle shaft, followed by the nyloc nut supplied
with the winch. Tighten nut. Pictures 15
12. Attach Winch Strap to Winch
Using a three inch x 1/4" hex head bolt, washer & nyloc nut, attach the
winch strap to the winch as shown in pictures 16 & 17. Wind the winch
strap onto the winch using the winch handle.
Pull length of strap down side of tube, through the bow stop. Use a
3/8" x 4" bolt and the 3" x 3/4" strap roller in the remaining holes in the
bow stop. Winch strap should be between the mounting bolt closest to
the winch mount tube and the 3" x 3/4" roller. Picture 18
Parts required for this step.
# Stk. # Description Qty.
12 MWS15L 15" Winch Strap 1
16 45251 3" x 3/4" Strap Roller 1
28 BBB37500400 3/8" x 4" Hex Head Bolt 1
34 BBN375NL 3/8" Nyloc Nut 1
38 1/4" x 3" Hex Head Bolt 1
39 1/4" Nyloc Nut 1
40 1/4" washer 1

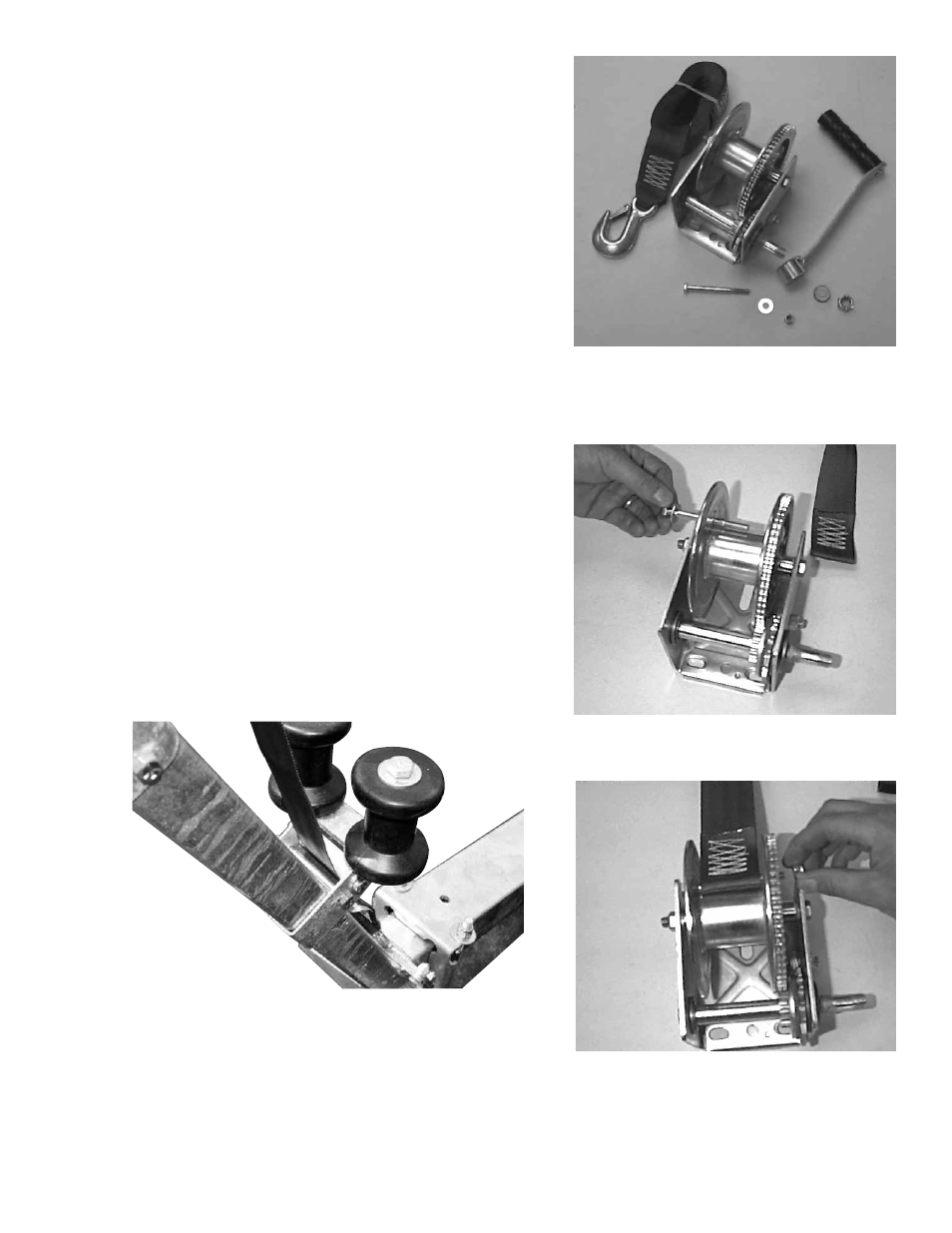

(Picture 15)
(Picture 16)
(Picture 17)
Mount Jet Rail with lag bolts or bolts through the dock floor. Check for obstructions under the dock before
drilling any holes. Rear mount should be close to edge of dock where you will be hoisting the Watercraft.
7
For questions or comments
on the Jet Rail assembly,
contact Mr. Sutton at
1-800-241-1806, ext 311.
(Picture 18)
NOTE: If your PWC does not have a bow eye and uses a hole in the
front deck, do not thread the winch strap through the bow stop. Use the
strap direct from winch to PWC using the "soft hook" provided. Also
see page 8 of these instructions.
