F ITTING T HE LH 1200 LH 1200 O PERATORS & F ITTING MANUAL
22 LH A GRO
FITTING THE SPEED SENSOR

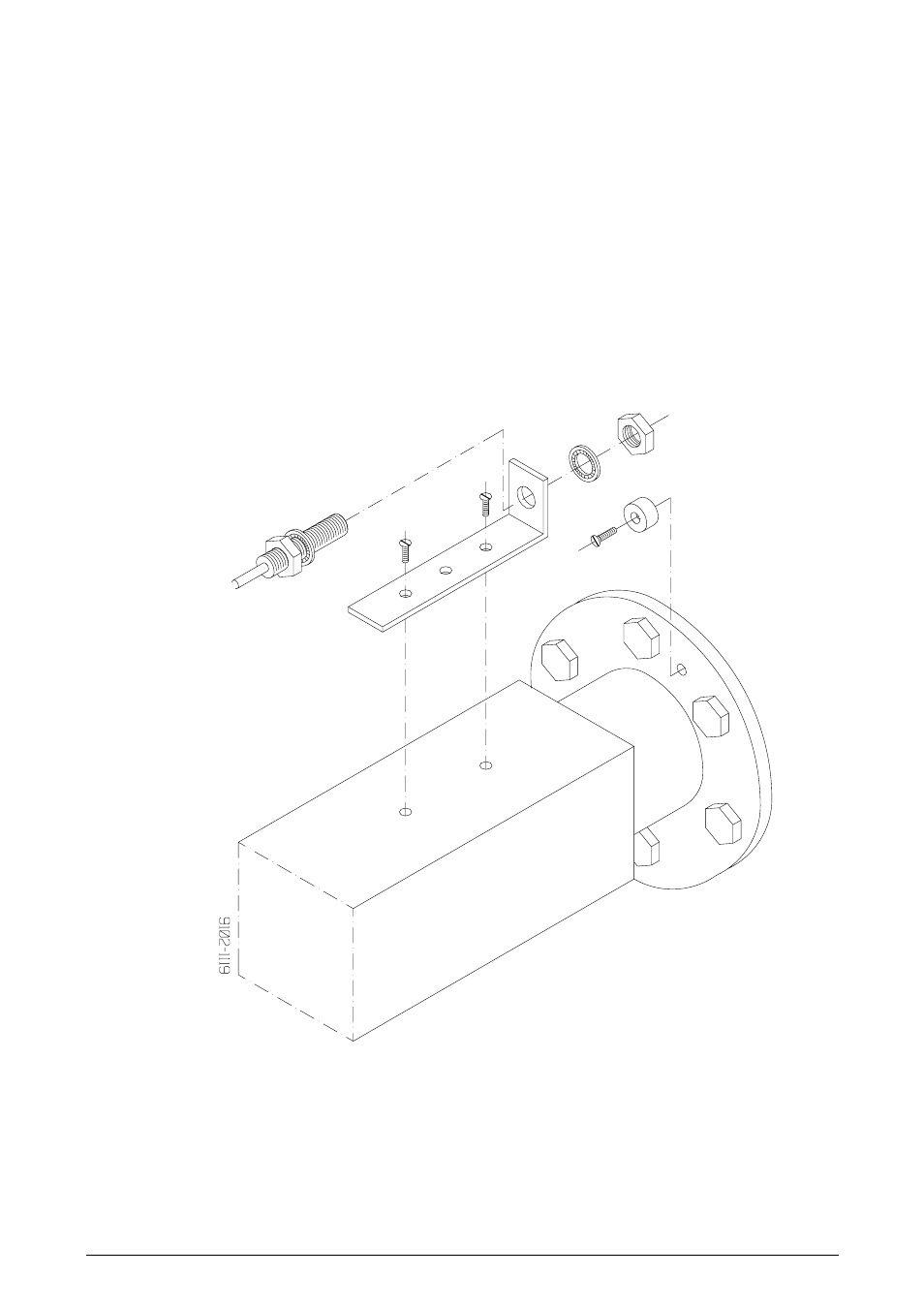

We recommend fitting the wheel sensor to the tractors right back wheel. See the
following diagram.
The distance between the magnets and the wheel sensor must not be greater than
5 mm. Fit 2 magnets if the effective wheel circumference is larger than 200 cm.
NOTE! The
magnets must be fitted with equal distance otherwise the displayed
forward speed will be erratic.
The magnets can, i.e. be fitted next to the wheel bolts.
Always fit the magnets with the “yellow dot” facing the sensor.
