TeeJet SmartPad II Quick Start Guide - Manual (Page 2)

Bulletin 98-01122
R3
2
INSTALLATION GUIDE
INSTALLATION INSTRUCTIONS
1. The Lightbar can be mounted inside or outside the cab. The lightbar is weather proof but not resistant
to high water pressures.
2. The GPS antenna must be mounted with a clear view of the sky. The tallest point on the vehicle is
preferred. When using a 2-way radio the GPS antenna and cables should be mounted as far away as
possible from the 2-way antenna and cables.
3. Midwest Technologies recommends that the power source come directly from the battery.
4. When using an existing switch in the cab to signal to the SmartPad that the application has begun,
two things must be done.
A. On the SmartPad under the guidance setup menu locate Status Detect
Status Detect - This must be set to 1 Section. See Page 5 of this bulletin.
B. See diagram above. When Status Detect is set to 1 Section 12v+
must be supplied to Input 2 when applying. Connect Input 2 (Blue Wire)
to the switched12v+ side of the master switch when the implement is applying.

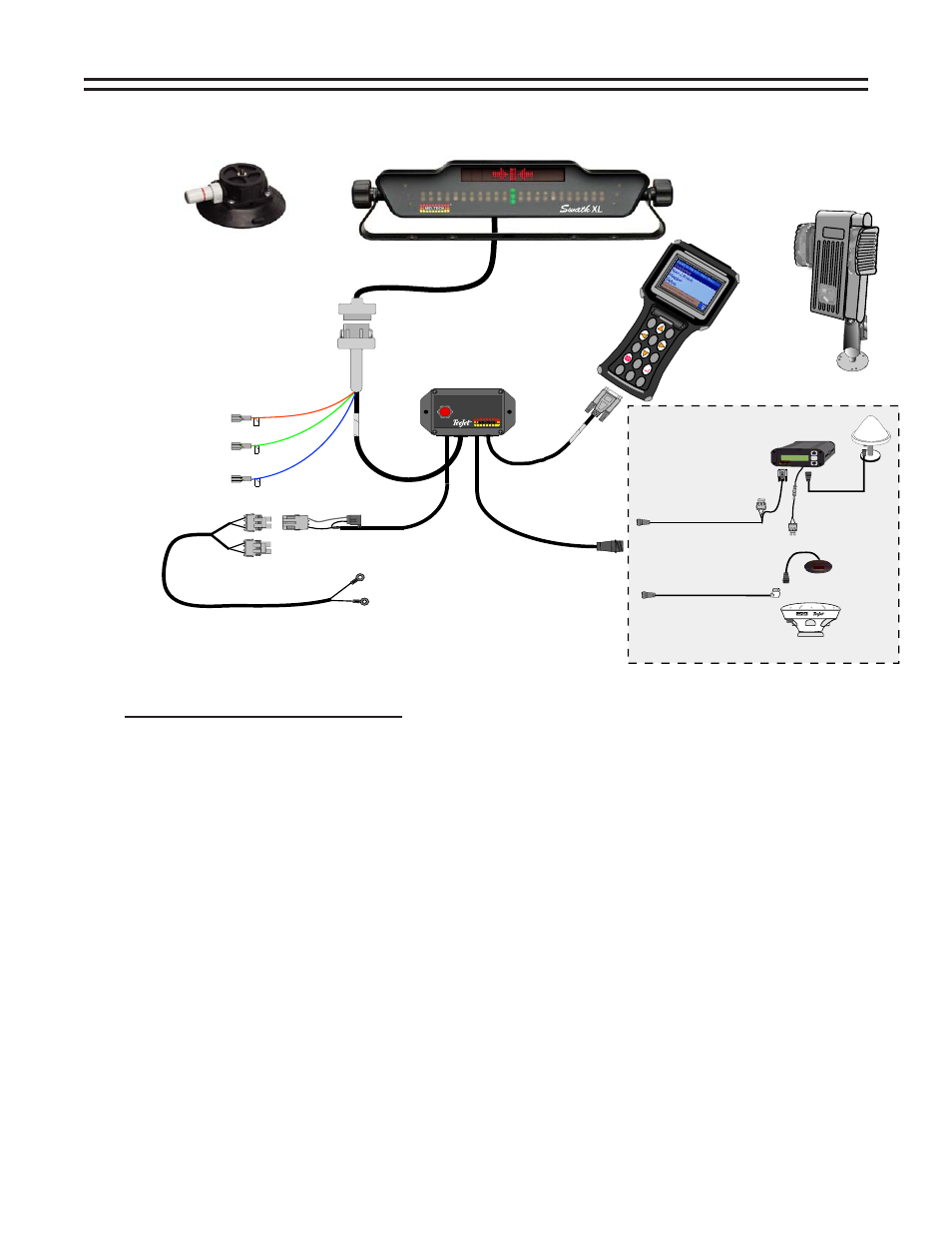

INTERFACE
SMARTPAD POWER
1
2
+V
Battery 45-05298
Power Cable
12'
5 Amp
Smartpad II Interface
78-05050
Lightbar
MT - 78-50058
TJ - 78-50075
Smartpad II
75-30005
®
Ram Mount
for Smartpad II
(Optional)
65-05108
R-A-M R-A-M
SH IFT CTR L
2N D ALT CA PS
CH G LO W BAT
12v+
(NOT USED) INPUT 1
WHEN STATUS DETECT IS ON
12v+ MUST BE SUPPLIED TO
INPUT 2 WHEN APPLYING
78-50105
RX 360p
GPS Receiver
78-50104
RX 350p
GPS Receiver
GPS Data Cable
45-05338
15’
Adapter Cable
45-05337
15’
RX 400p GPS Receiver
& Antenna
78-50062
ENTER
High Accuracy Differential GPS Receiver
Midwest Technologies, Inc.
Lat 5100.120 N+ Lon 11202.250 WH
MID-TECH
RX 400p RX 400p
Inline Fuse
1 1 / 2 Amp
RED
GREEN
BLUE
Lightbar
Suction Cup Mount
(Optional)
64-05006
