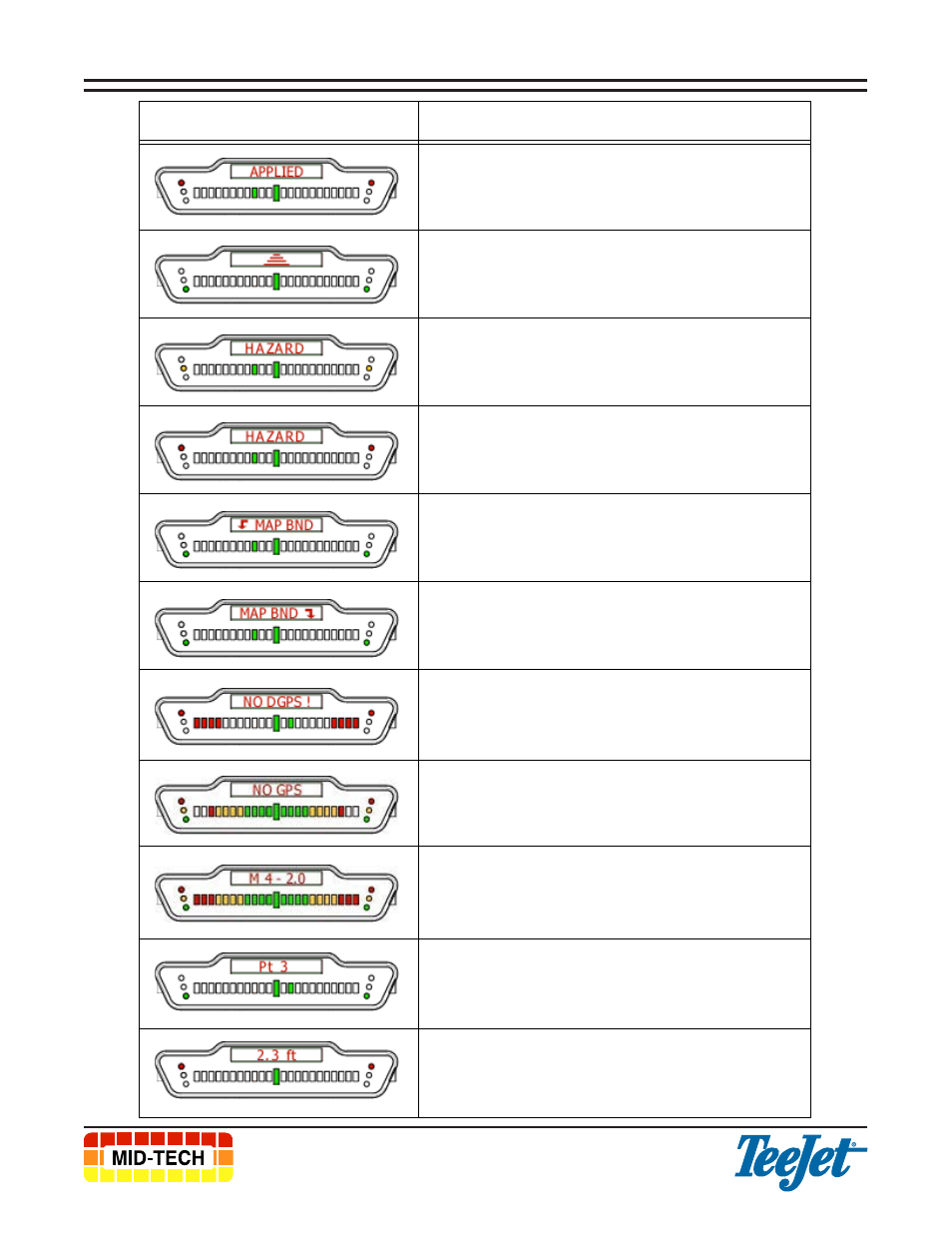

LIGHTBAR STATE DESCRIPTION
Applied Area Detection: This message is displayed when the vehicle is
with in a previously applied area. Note the Red stop lights are
illuminated. At this point an alarm will sound if the applied alarm setting
was turned on in the user setup.
Curved guidance information graphic. The four horizontal bars in the
text display represent a perspective view of the swath ahead of the
vehicle. The bars will skew left or right to represent the curved path
ahead.
Hazard Detection: The name of the hazard is displayed when the vehicle
is approaching an existing hazard. Note the yellow stop lights are
illuminated indicating the initial warning. Initial warning distance is
set in system setup under Hazard Range.
Hazard Detection: The name of the hazard is displayed when the vehicle
is approaching an existing hazard. Note the red stop lights are
illuminated indicating the final warning Final warning distance is
half the distance of the initial warning set in system setup under
Hazard Range.
Mapping Boundary: This message is displayed when the user is
mapping the field boundary. The arrow symbol on the left indicates
the field boundary is on the left side of the vehicle implement.
Mapping Boundary: This message is displayed when the user is
mapping the field boundary. The arrow symbol on the right indicates
the field boundary is on the right side of the vehicle implement.
System Warning: This message is displayed when there is a complete
loss of DGPS (differential GPS corrections). Guidance calculations
are stopped until differential corrections resume.
System Warning: This message is displayed when there is a complete
loss of GPS signal to the GPS receiver or SmartPad. Guidance calculations
are stopped until GPS signal resumes.
Lightbar Version Message: This message is displayed when the user
runs the Lightbar Test. M4 indicates the Lightbar model and the 2.0
indicates the lightbar protocol version number. This number varies and
is based on the lightbar version and model.
Point Number: This is displayed only when using the Nav2point feature.
Pt 3 indicates the number of the point the operator is navigating to.
Distance to Point: This is displayed only when using the Nav2Point
feature. The display indicates the distance to the point the user is
navigating to.
LIGHTBAR INDEX
®
