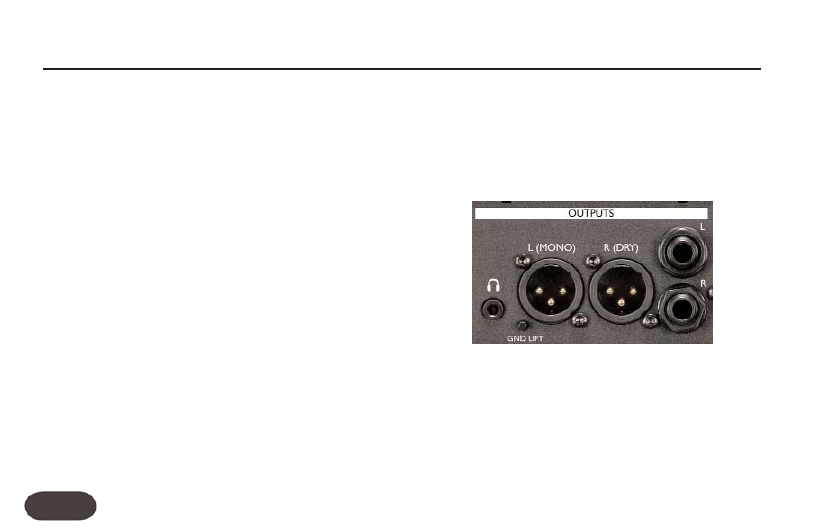

Step 3: Outputs

The typical setup for monitoring the output of VoiceLive
2 is to connect two 1/4” cables to a stereo channel in a
PA mixer. VoiceLive 2 can be set to output in mono if
preferred in the I/O tab of the SETUP menu.

If you are using a snake to connect to an offstage mixer,
then the XLR outputs can be connected without the
need for DI boxes. The output of the XLR jacks is the
same as the 1/4” jacks: line level (maximum +16 dBu).
Both the XLR and TRS output jacks can be used at the
same time when required.

If you prefer to monitor with headphones, the output
labelled with the headphones graphic will drive most
headphone types that are equipped with an 1/8” jack.

Now you can connect the power adaptor and press the
POWER switch to turn on the unit. NOTE: keep your PA
level off until you set the mic gain level in Step 4.
