SerialGate User Guide

14

Chapter 3. Hardware Description

This chapter provides hardware information including block diagram, layout, pin specification,

dimensions and other hardware-related issues.

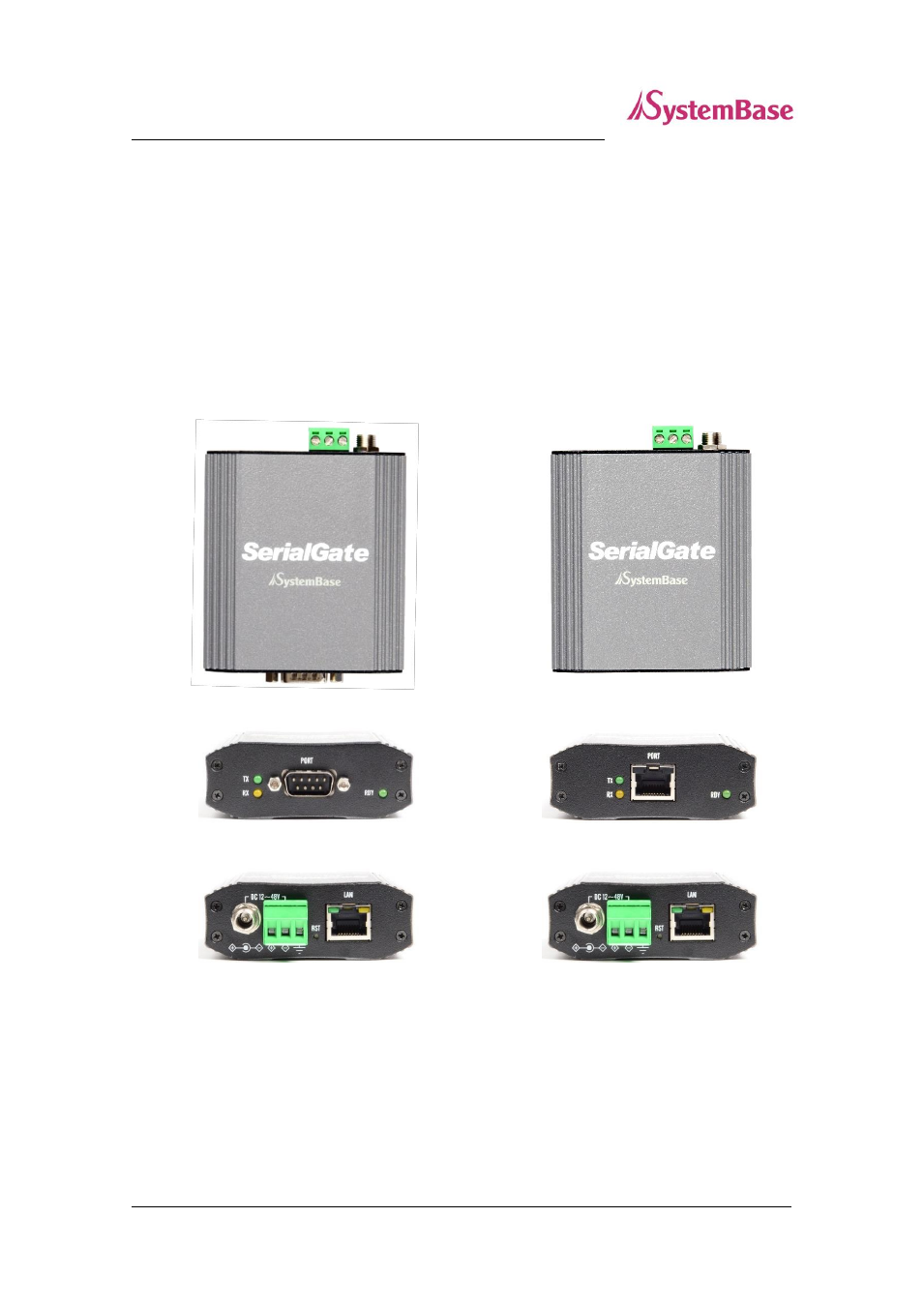

Exterior of SG-2011 Series

SG- 2011DIL/ALL, 232 Top SG-2011RIL/ALL, 232 Top

SG-2011DIL/ALL, 232 Front SG-2011RIL/ALL, 232 Front

SG-2011DIL/ALL, 232 Rear SG-2011RIL/ALL, 232 Rear
