SerialGate User Guide

16

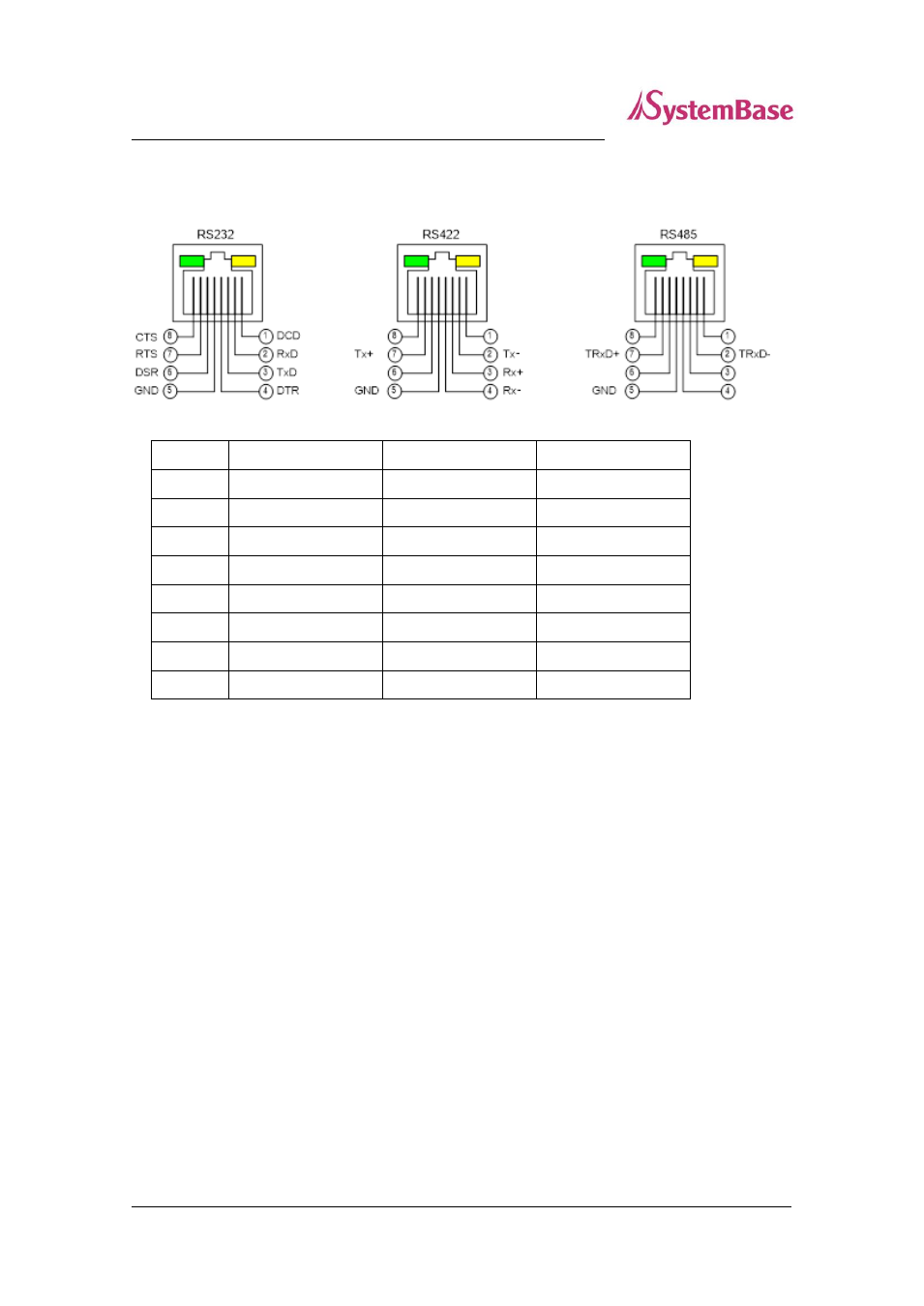

Pin Specification

Pin No.

RS-232

RS-422

RS-485

1

DCD

-

-

2

RxD

Tx-

TRxD-

3

TxD

Rx+

-

4

DTR

Rx-

-

5

GND

GND

GND

6

DSR

-

-

7

RTS

Tx+

TRxD+

8

CTS

-

-
