24

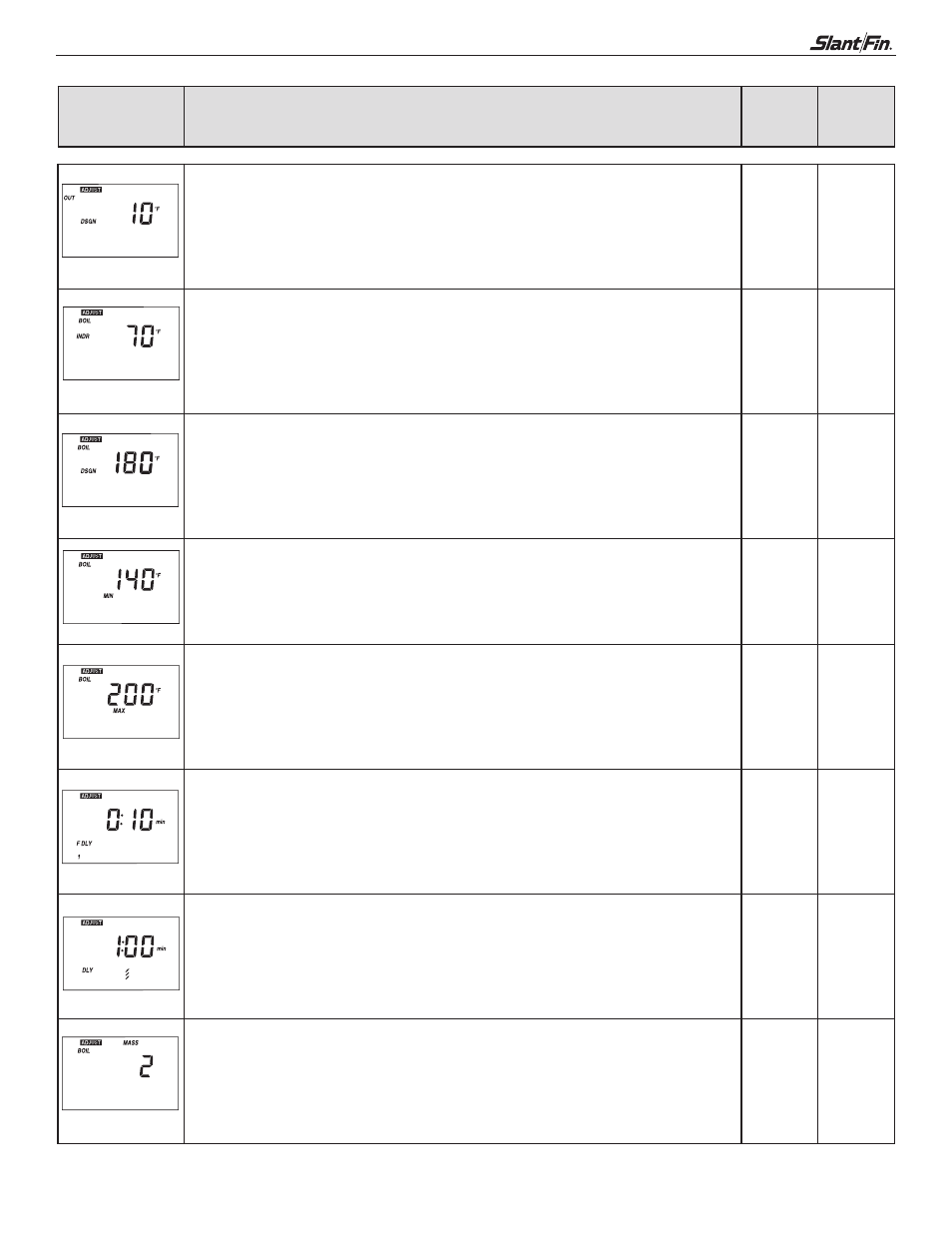

Outdoor Design - The design outdoor air temperature used in the heat loss
calculations for the heating system.
This item is only available if the External Input/Stand Alone DIP switch is set to
Stand Alone.
Range Available: -60˚ to 45˚F (-51˚ to 7˚C)
10˚F
(12˚C)
Boiler Indoor - The design indoor air temperature used in the heat loss calculation for
the heating system.
This item is only available if the External Input/Stand Alone DIP switch is set to
Stand Alone.
Range Available: 35˚ to 100˚F (2˚ to 38˚C)
70˚F
(21˚C)
Boiler Design - The design supply water temperature used in the heat loss
calculations for the heating system.
This item is only available if the External Input/Stand Alone DIP switch is set to
Stand Alone.
Range Available: 70˚ to 220˚F (21˚ to 104˚C)
180˚F
(82˚C)
Boiler Minimum - The minimum allowed boiler target temperature
Range Available: OFF, 80˚ to 180˚F (OFF, 27˚ to 82˚C)
140˚F
(60˚C)
Boiler Maximum - The maximum allowed boiler target temperature
Range Available: 120˚ to 225˚F, OFF (49˚ to 107˚C, OFF)
200˚F
(93.5˚C)
Fire Delay 1 - The time delay the control can expect between the time that the relay
contact closes to fire the first stage of the boiler and the burner actually fires.
Range Available: 0:00 to 3:00 minutes (1 sec increment)
0:10
min
Combustion Air Damper Delay - The time allowed for the combustion air damper to
open before the first stage is fired.
This item is only available if the Alarm / C.A. DIP switch is set to C.A.
Range Available: 0:00 to 3:00 minutes (1 sec increment)
1:00
min
Boil Mass - The thermal mass characteristics of the boilers that are being used.
Range Available: 1 (Lo), 2 (Med), 3 (Hi)
2
Display Description
Default
Setting
New
Setting
SPACE HEATING WITH DHW WITH SETPOINT CONTROL
