SK-FFT Installation and Operation Manual
3-8
54711
3.6 DIP switch settings on SK-FFT
This section describes how to configure the DIP switch setting on the SK-FFT.
1. Refer to Figure 2-1 for location of the DIP switches on the SK-FFT board.
2. Configure the SK-FFT module by adding it to the system through JumpStart
feature. See Section 6.3 for JumpStart Operation. Table 3-1 list possible DIP switch
configurations.
3.6.1
DIP Switch

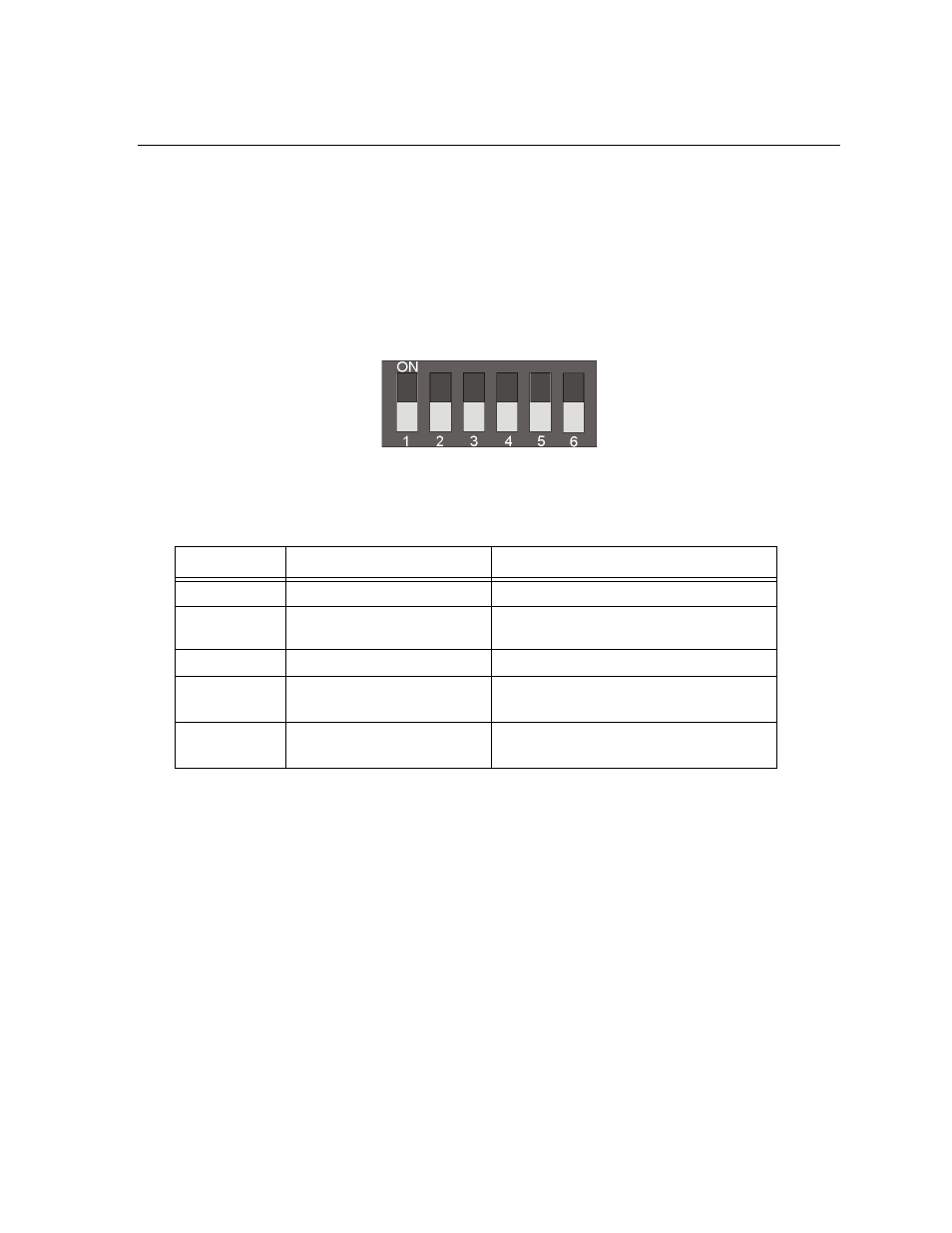

Figure 3-9 DIP Switch
Table 3-1 SK-FFT DIP Switch Configurations
DIP Switch
ON
OFF
1
SLC Devices Installed
SLC Devices not Installed
2
Trouble PZT Enabled
Trouble PZT Disabled
3
SLC Class A Supervision SLC Class B Supervision
4
Phone Circuit Class A
Supervision
Phone Circuit Class B Supervision
5
First FFT-24 Expander
Installed
First FFT-24 Expander not Installed
