Installation
54711 3-3
4. Place the trim ring around the cabinet. See Figure 3-3.

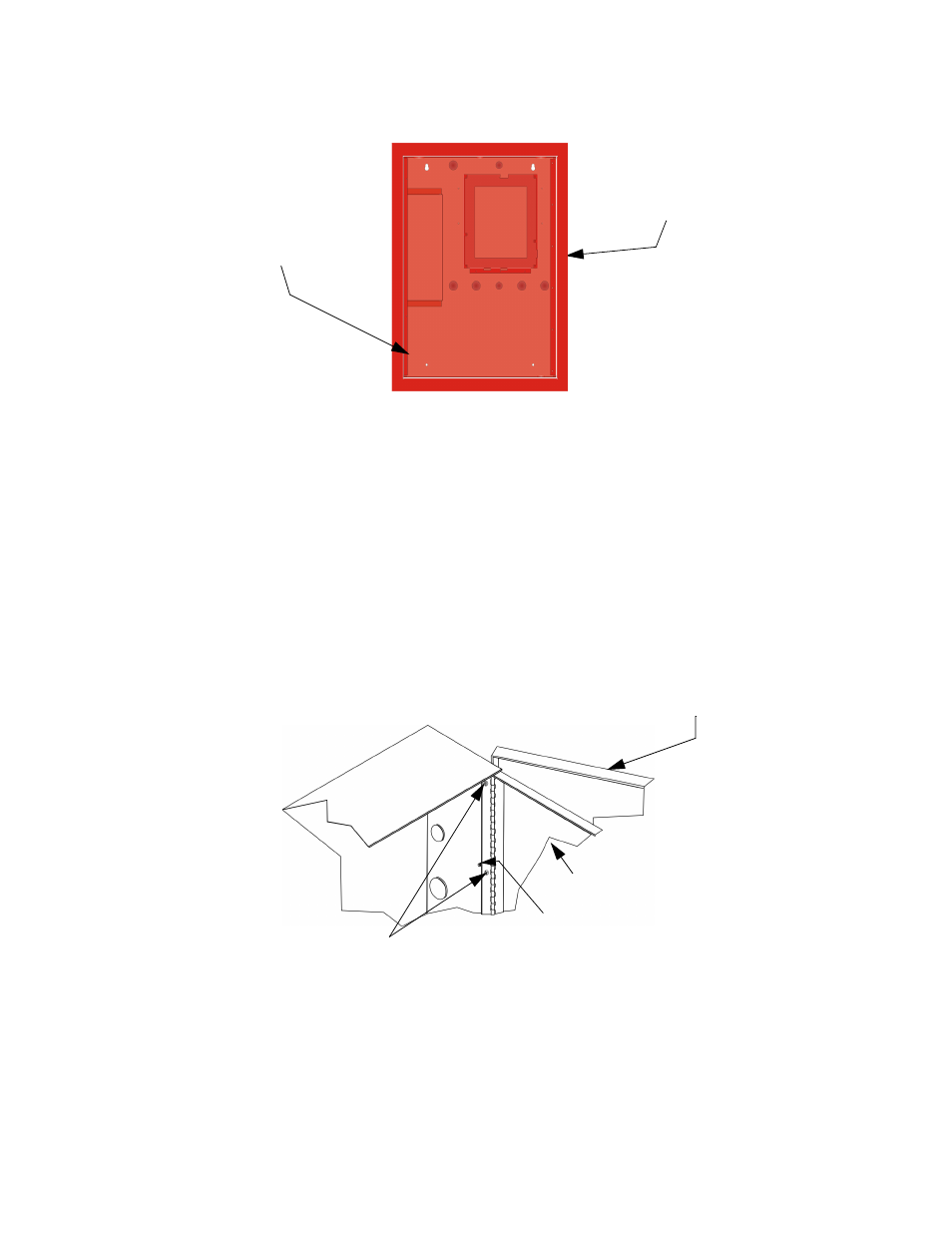

Figure 3-3 Trim Ring Around cabinet
5. Secure the trim ring to the cabinet using the self-tapping sheet metal screws from
the inside of the cabinet into the trim ring.
6. Re-attach the cabinet door assembly.
3.1.2.1 Cabinet Door and Dead Front Removal
While installing the cabinet it may be necessary to remove the cabinet door and the
dead front panel. This section provides instructions on how to remove the door and
dead front panel.
1. Using a Phillips head screw driver, remove the six screws that hold the dead front
panel in place. See Figure 3-4.
Figure 3-4 Cabinet Door and Dead Front Panel Removal
2. Using a 1/4” Hex drive, remove the six Hex nuts that hold the cabinet door in
place. See Figure 3-4.
Trim Ring
Cabinet
Cabinet Door
Dead
Front Panel
Dead Front
Panel Screws
Cabinet Door
Hex Nuts
