64 www.sigsauer.com
P0 03/11/10 JAT PRELIMINARY RELEASE
SCALE: NONE
CHECKED BY:
SHEET : OF
DRAWN BY:
SIZE DRAWING
NO.
ENG APPR:
REV.
WEIGHT:
TITLE:
ECO DATE DESCRIPTION REV
REVISION HISTORY
D
MFG APPR:
MAT'L'S APPR:
QA APPR:
ALL DIMENSIONS ARE INCHES APPROVALS DATE
ENG
APPR
DRAWN
BY
JAT 03/11/10

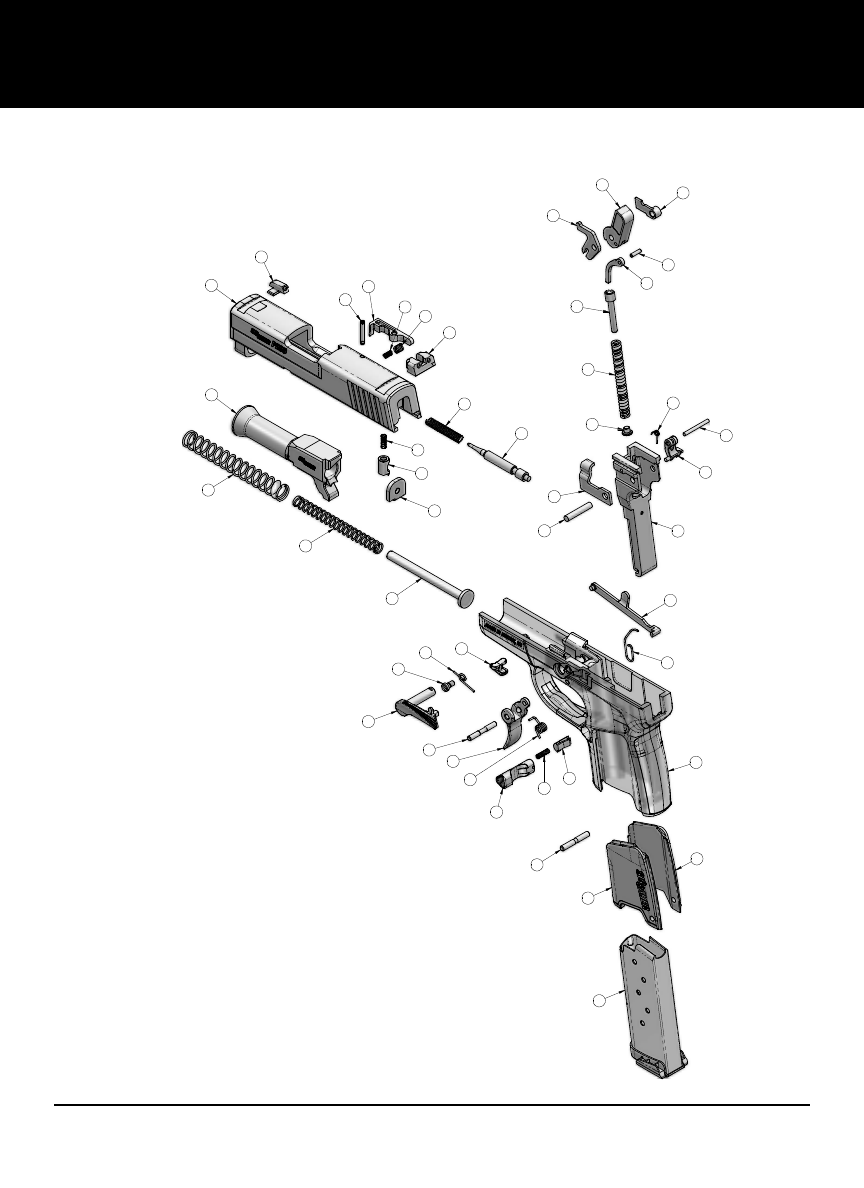

MICRO PISTOL EXPLODED
1100000 EX P1
1 1
THIRD ANGLE
PROJECTION
NEXT ASSY USED ON
18 Industrial Drive Exeter, NH 03833
D
C
8 7
B
A
6 5 4 3 1 2
8 7 6 5 4 3 1 2
D
C
B
A
THIS ENTIRE DOCUMENT AND ALL INFORMATION THEREON IS PROPRIETARY
AND IS THE EXCLUSIVE PROPERTY OF SIG SAUER, INC. EXETER, NH, U.S.A. AND
SHALL NOT BE REPRODUCED, DUPLICATED OR COPIED IN WHOLE OR IN PART,
DISCLOSED OR MADE AVAILABLE TO ANY OTHER PERSON, FIRM,
CORPORATION, OR ENTITY OR OTHERWISE USED WITHOUT THE PRIOR
WRITTEN PERMISSION OF SIG SAUER, INC.
THIS DRAWING OR PRINT MUST BE RETURNED TO THE OWNER UPON
COMPLETION OF THE PURPOSE FOR WHICH SUCH PERMISSION MAY BE
GRANTED.
THE INFORMATION CONTAINED WITHIN THIS DOCUMENT MAY CONTAIN
INFORMATION THAT IS ON THE U.S. MUNITIONS LIST AND AS SUCH MAY BE
GOVERNED BY THE INTERNATIONAL TRAFFIC IN ARMS REGULATIONS. USERS
ARE WARNED NOT TO EXPORT THIS DOCUMENT UNLESS IN CONFORMANCE
WITH THE APPROPRIATE REGULATIONS.
CONFIG
MANAGER:
P1 11/11/10 SH UPDATED DRAWING AND
PARTS LIST TO MATCH
290-9-BSS
13
14
16
43
45
46
38
37
31
32
40
36
34
30
18
29
21
20
22
25
27
26
17
28
44
1
9
11
12
6
7
15
39
19
35
42
47
41
24
23
5
2
3
8
33
4
10
47 1100050 MAGAZINE 1
46 1100012 RIGHT GRIP 1
45 1100011 LEFT GRIP 1
44 1100038 REAR HOUSING PIN 1
43 1100007 MOLDED RECEIVER 1
42 38000060 MAGAZINE CATCH STOP 1
41 34221185 MAGAZINE CATCH SPRING 1
40 1100018 MAGAZINE CATCH 1
39 1100053 TRIGGER SPRING 1
38 1100014 TRIGGER 1
37 1100015 TRIGGER PIVOT PIN 1
36 1100021 SLIDE STOP & TAKEDOWN LEVER 1
35 1100055 TAKEDOWN SPRING SCREW 1
34 1100022 SLIDE STOP & TAKEDOWN LEVER SPRING 1
33 1100070 LASER PLUG 1
32 1100017 TRIGGER BAR SPRING 1
31 1100016 TRIGGER BAR 1
30 1100024 REAR HOUSING 1
29 1100027 HAMMER PIVOT PIN 1
28 1100037 EJECTOR 1
27 1100032 SEAR PIVOT PIN 1
26 1100033 SEAR SPRING 1
25 1100031 SEAR 1
24 1200730 MAINSPRING HOUSING PIN LOCK 1
23 1100065 HAMMER SPRING 1
22 1100030 MAINSPRING SEAT 1
21 1100028 HAMMER STRUT 1
20 1100029 HAMMER STRUT PIVOT PIN 1
19 1100054 TRIGGER BAR DISCONNECTOR 1
18 1100026 HAMMER 1
17 1100034 FIRING PIN DISCONNECTOR 1
16 1100006 OUTER RECOIL SPRING 1
15 1100052 INNER RECOIL SPRING 1
14 1100005 RECOIL SPRING GUIDE 1
13 1100075 BARREL 1
12 1100046 FIRING PIN STOP 1
11 1100044 FIRING PIN BLOCK 1
10 1200961 FIRING PIN BLOCK SPRING 1
9 1100042 FIRING PIN 1
8 1100043 FIRING PIN SPRING 1
7 1100048 EXTRACTOR PIN 1
6 1100047 EXTRACTOR 1
5 1201058 OUTER EXTRACTOR PSRING 1
4 1100071 INNER EXTRACTOR SPRING 1
3 P00008-08 REAR SIGHT 1
2 P00007-06 FRONT SIGHT 1
1 1100039 SLIDE 1
ITEM PART NUMBER DESCRIPTION QTY
PARTS LIST
PRELIMINARY RELEASE - REVISION P1
13.1 Parts diagram
