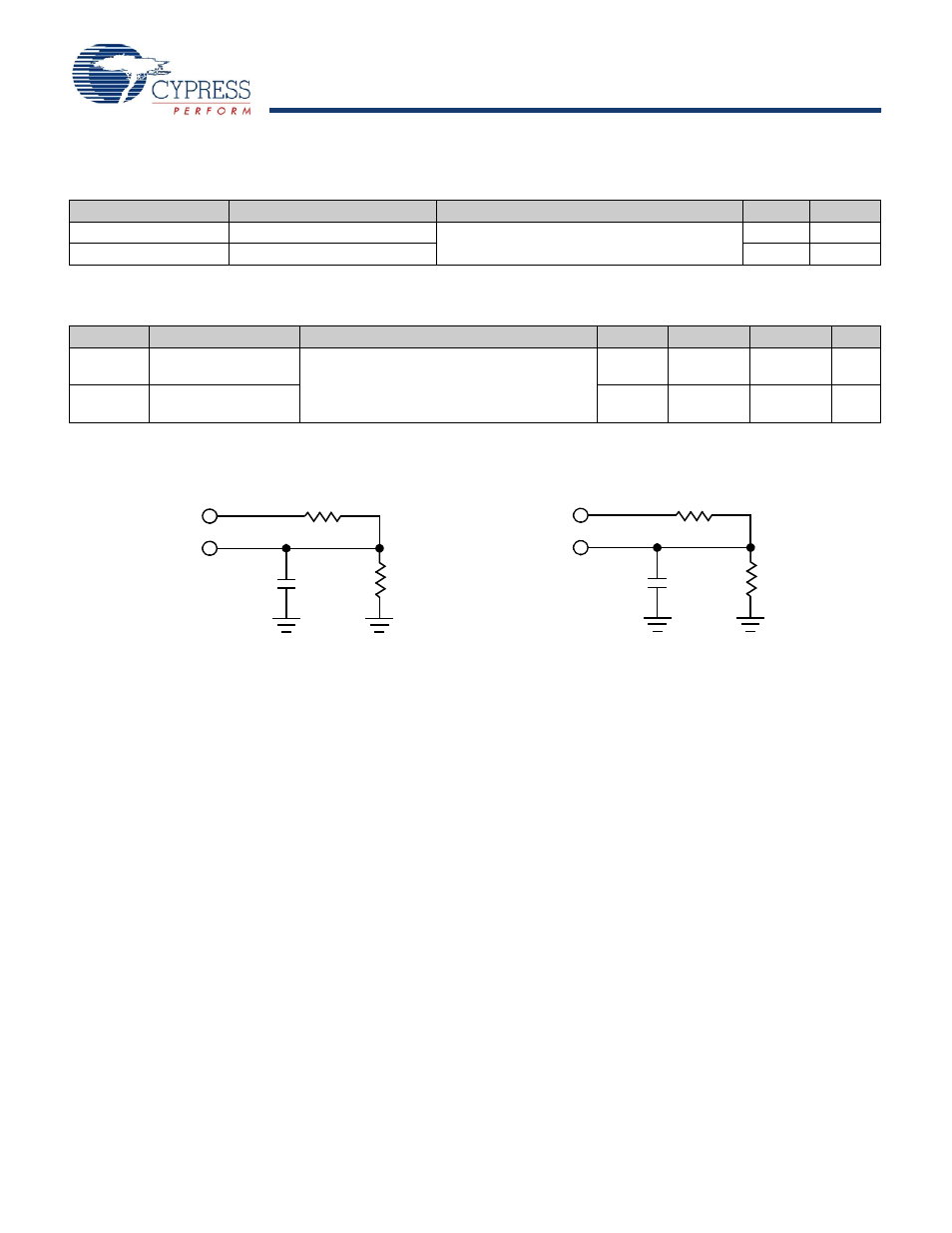

background image

ADVANCE

CY14B108L, CY14B108N

Document Number: 001-45523 Rev. *A

Page 8 of 20

AC Test Conditions

Input Pulse Levels ....................................................0V to 3V

Input Rise and Fall Times (10% - 90%) ........................ <5 ns

Input and Output Timing Reference Levels .................... 1.5V

Capacitance

In the following table, the capacitance parameters are listed

[9]

.

Parameter

Description

Test Conditions

Max

Unit

C

IN

Input Capacitance

T

A

= 25

°C, f = 1 MHz,

V

CC

= 0 to 3.0V

14

pF

C

OUT

Output Capacitance

14

pF

Thermal Resistance

In the following table, the thermal resistance parameters are listed

[9]

.

Parameter

Description

Test Conditions

48-FBGA 44-TSOP II 54-TSOP II

Unit

Θ

JA

Thermal Resistance
(Junction to Ambient)

Test conditions follow standard test methods
and procedures for measuring thermal
impedance, in accordance with EIA/JESD51.

28.82

31.11

30.73

°C/W

Θ

JC

Thermal Resistance
(Junction to Case)

7.84

5.56

6.08

°C/W

Figure 4. AC Test Loads

3.0V

OUTPUT

5 pF

R1

R2

789

Ω

3.0V

OUTPUT

30 pF

R1

R2

789

Ω

for tri-state specs

577

Ω

577

Ω

Notes

9. These parameters are guaranteed but not tested.
