REDLINK BRIDGE OPERATION GUIDE

955-0064, REV-B | 11

This chapter explains how to install and power the REDLINK Bridge.
NOTE: The REDLINK Bridge is HOT SWAPPABLE, meaning you CAN remove or install the module while the

camera is powered on.

DOCK THE REDLINK BRIDgE

1. Slide the REDLINK Bridge over the V-Mount on the back of the DSMC BRAIN or compatible rear module.

You will hear a click, which indicates that the REDLINK Bridge is securely attached.
The REDLINK Bridge is automatically powered when connected.

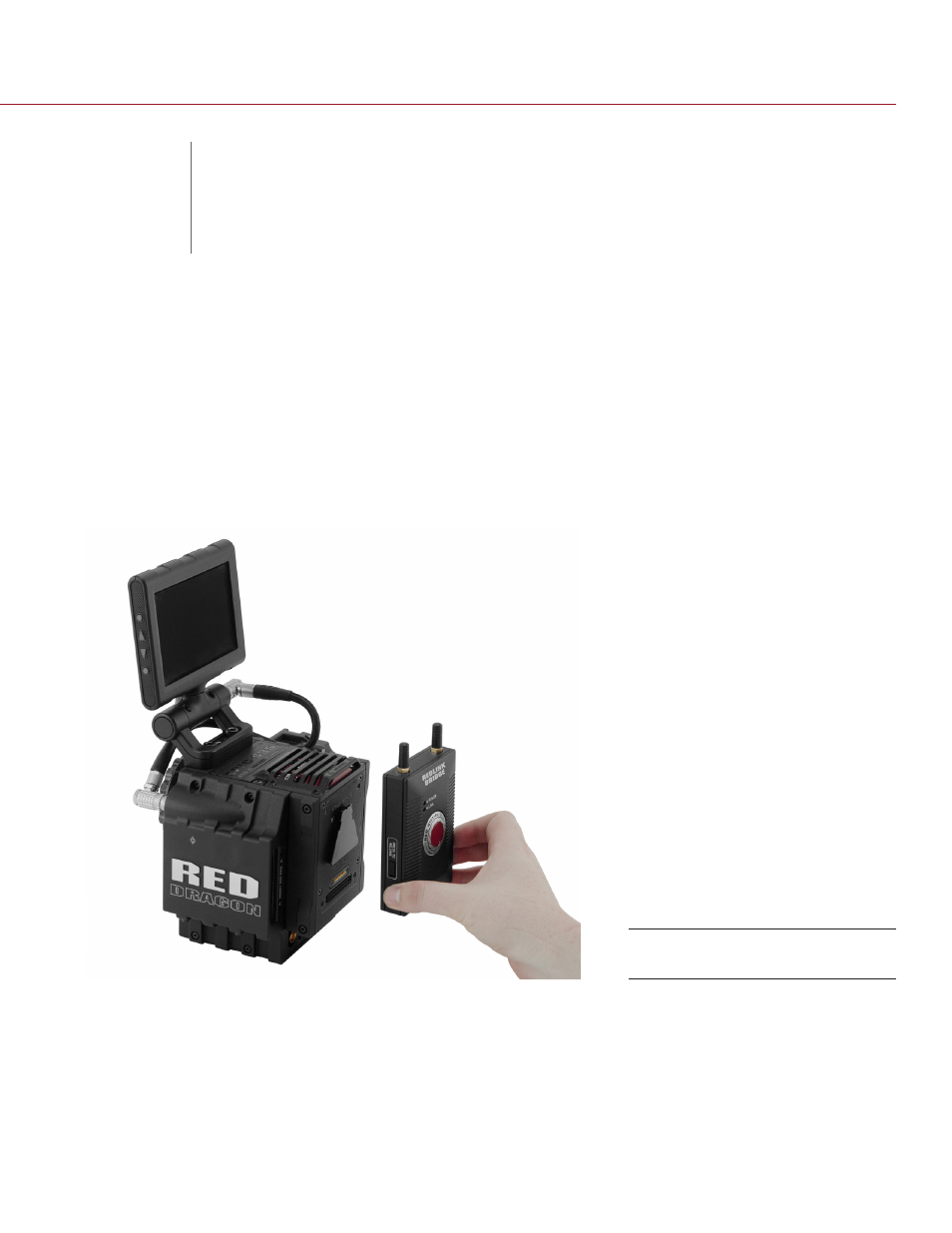

Dock the REDLINK Bridge

INSTALL THE

REDLINK BRIDgE
