21
4.7.2 Expansion Block Assembly
1. Remove the four 4MBP plugs from the 3
station valve block (Figure 25).
2. Coat the four o-rings in hydraulic oil
and install them into the expansion
block. Ensure the o-rings are seated
properly.
3. Attach the expansion block to the 3
station block using the included spring
washers and bolts.
4. Tighten the bolts to 31 ft-lbs.

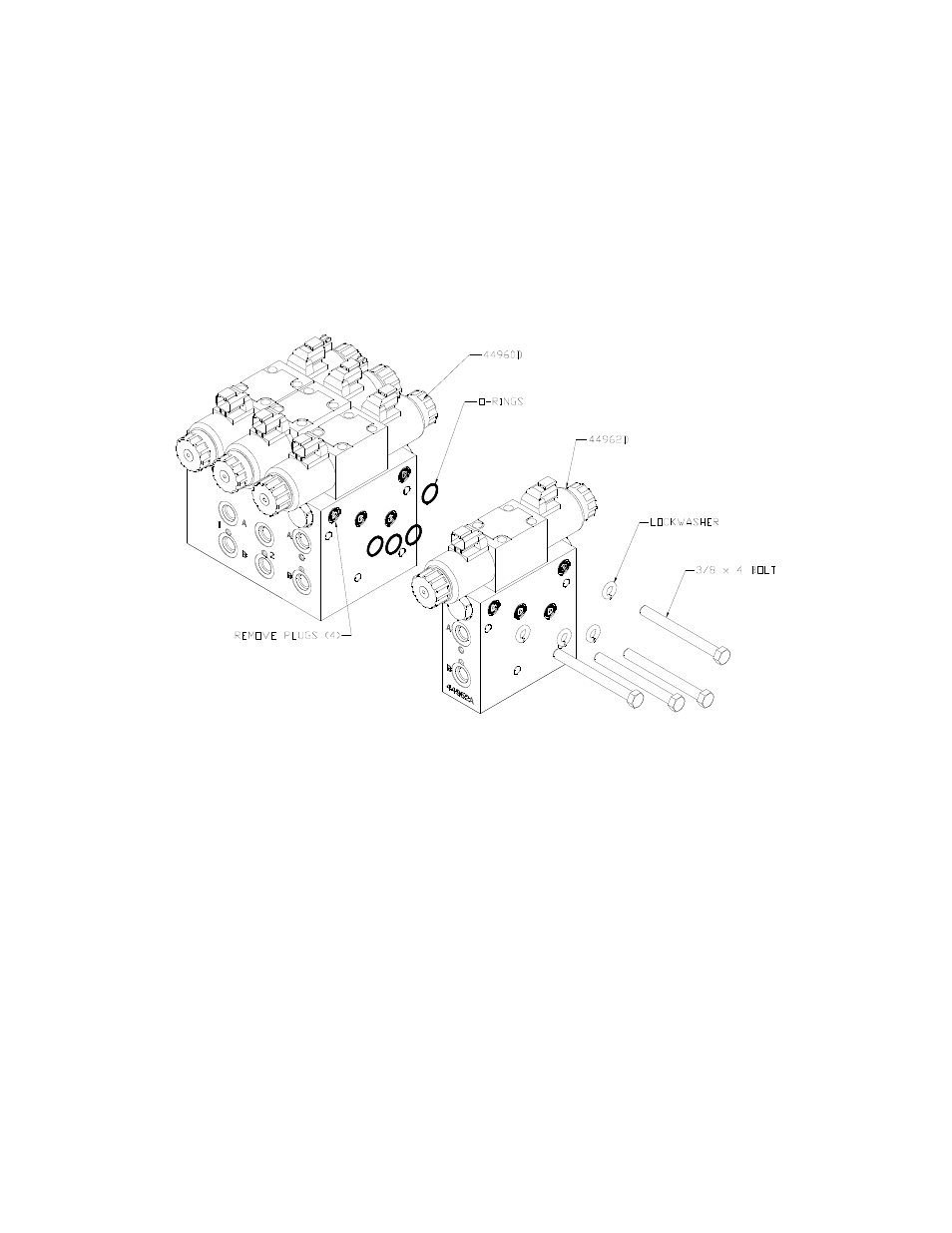

Figure 25: NORAC Expansion Block Assembly
