15
4.5 R
OLL
S
ENSOR
I
NSTALLATION
For this installation, the roll
sensor is only being used for
temperature compensation.
1. Mount the roll sensor to the provided
roll sensor bracket.

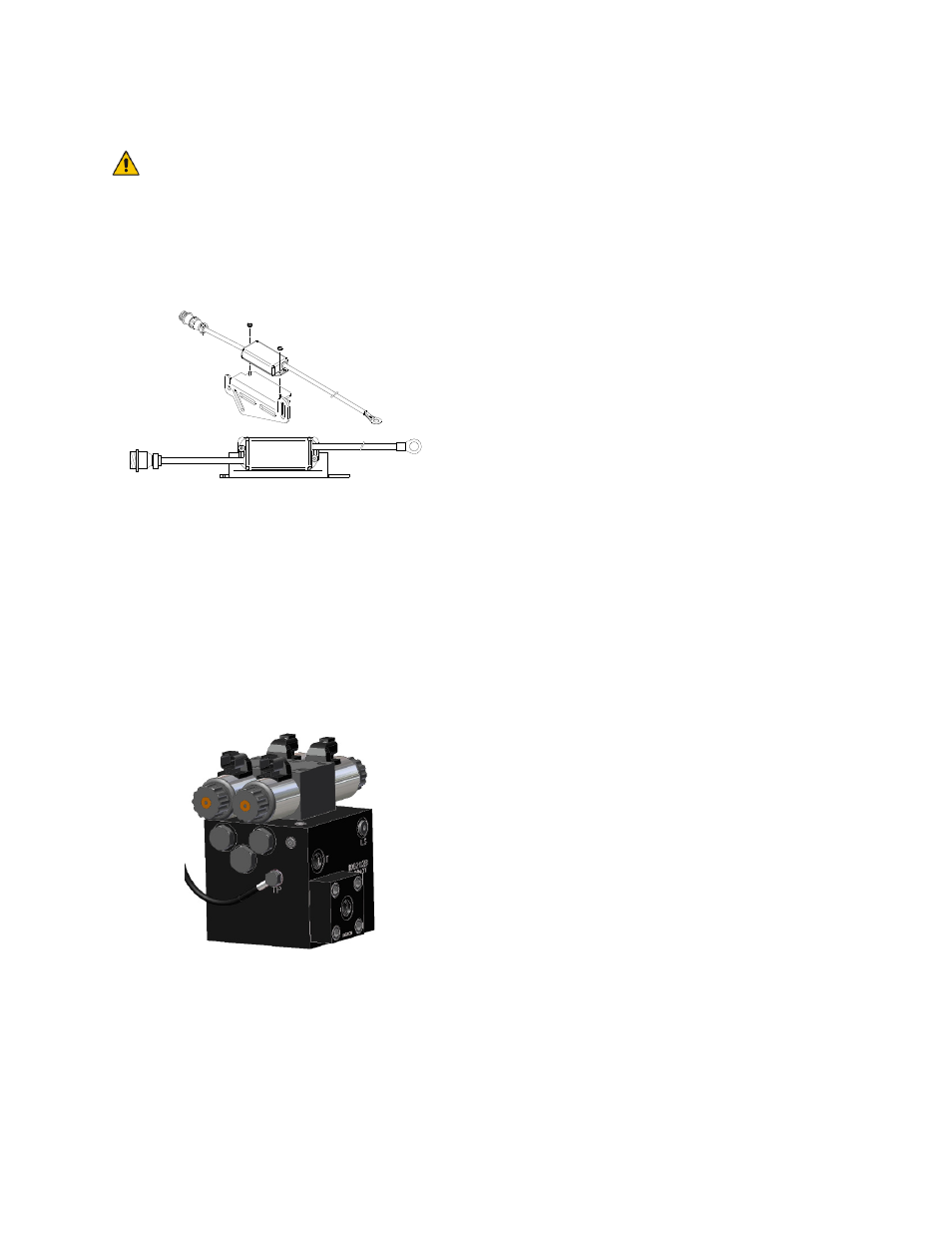

Figure 13: Mounting the Roll Sensor
to the Roll Sensor Mounting Bracket
2. Attach the roll sensor and roll sensor
bracket to the boom, near the NORAC
valve block using the provided cable ties.
3. Attach the temperature probe on the
roll sensor to the side of the NORAC
valve block, using the provided 3/8” bolt.
Figure 14: UC4+ Valve Block with
Temperature Probe Installed
