S T E P O N E
2
1
The Westwood Arbor
Connect Arch System to Side Panels
www.edenarbors.com

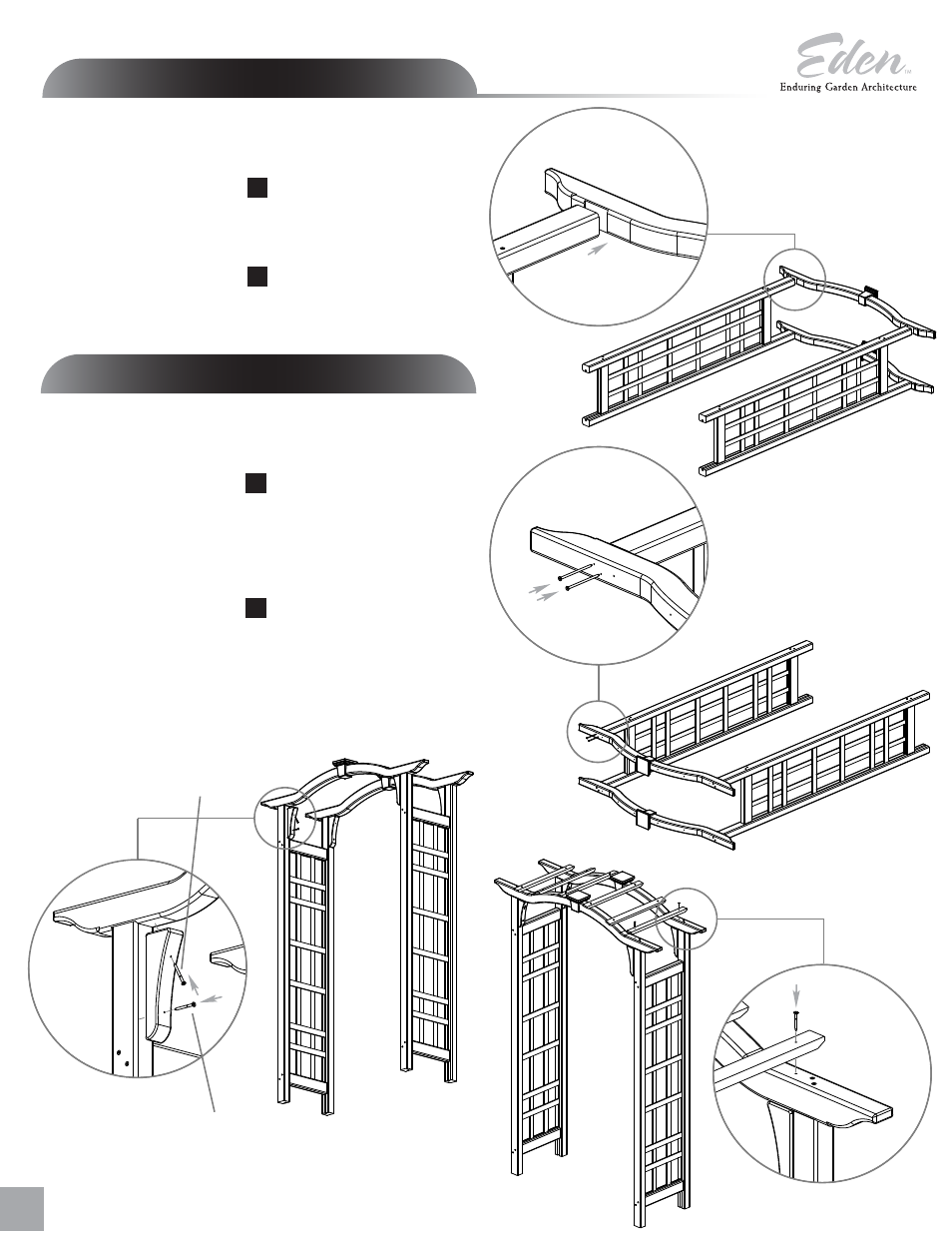

Lay down the side panels and arches as shown aside. Align the
notch on the underside of the arch as shown. Make sure the side
panels and arch are flush to each other.
Fasten the arches to the posts using the provided 3½” screws
(two per post).
1
2
2
S T E P T W O
3
Attach Braces and Rafters
Stand arbor upright, place and align the braces to the posts and
arches. Ensure that the faces of the posts and braces are flush to
each other. Fasten the brace to the post using the provided 2”
screws; fasten the brace to the swoop top arch using the provided
3“ screws as shown below.
Fasten the six arch rafters onto the arches using two 1½”
screws per rafter. Align to pre-drilled holes to ensure proper
spacing.
3
4
4
2” Screw
3” Screw
