Mytek DIO MADI Card – User Manual
Card Installation
The DIO MADI card can be installed in either
DIOCARD1 or DIOCARD2 slot. The card can be
installed with any card available for the 8x192 converter.

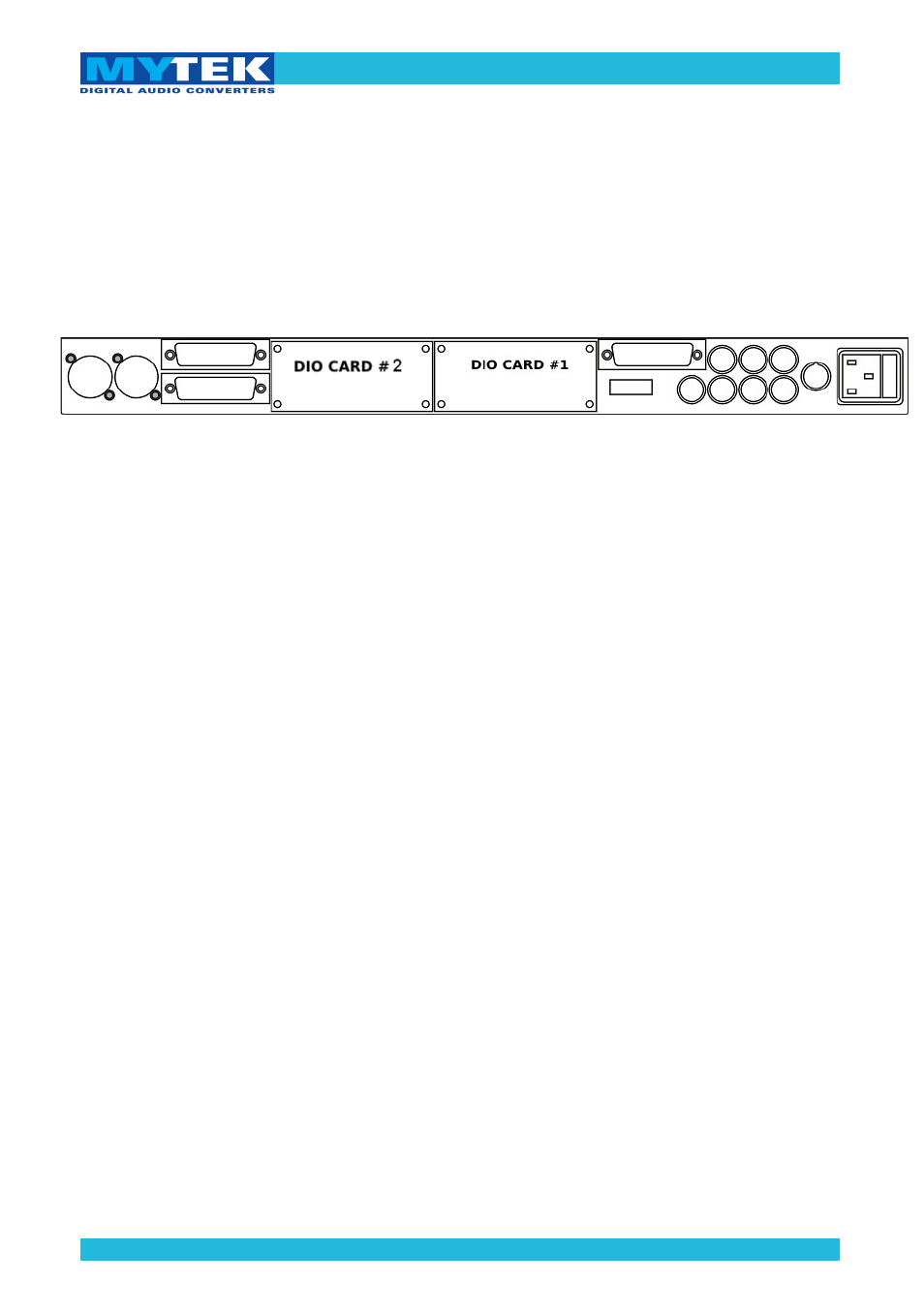

8x192 ADDA converter’s rear panel
WARNING!
Remember to follow basic safety rules on electronic
device handling while opening the converter:
✔
Keep your hands dry,
✔
Turn off power and detach power and signal cables
while working with the top cover removed.
To install the DIO MADI card:
1. Find the DIOCARD1 or DIOCARD2 expansion
slot at the mainboard’s layout.
2. Make sure that the power cord and all signal and
clock lines are disconnected.
