Mytek DIO MADI Card – User Manual

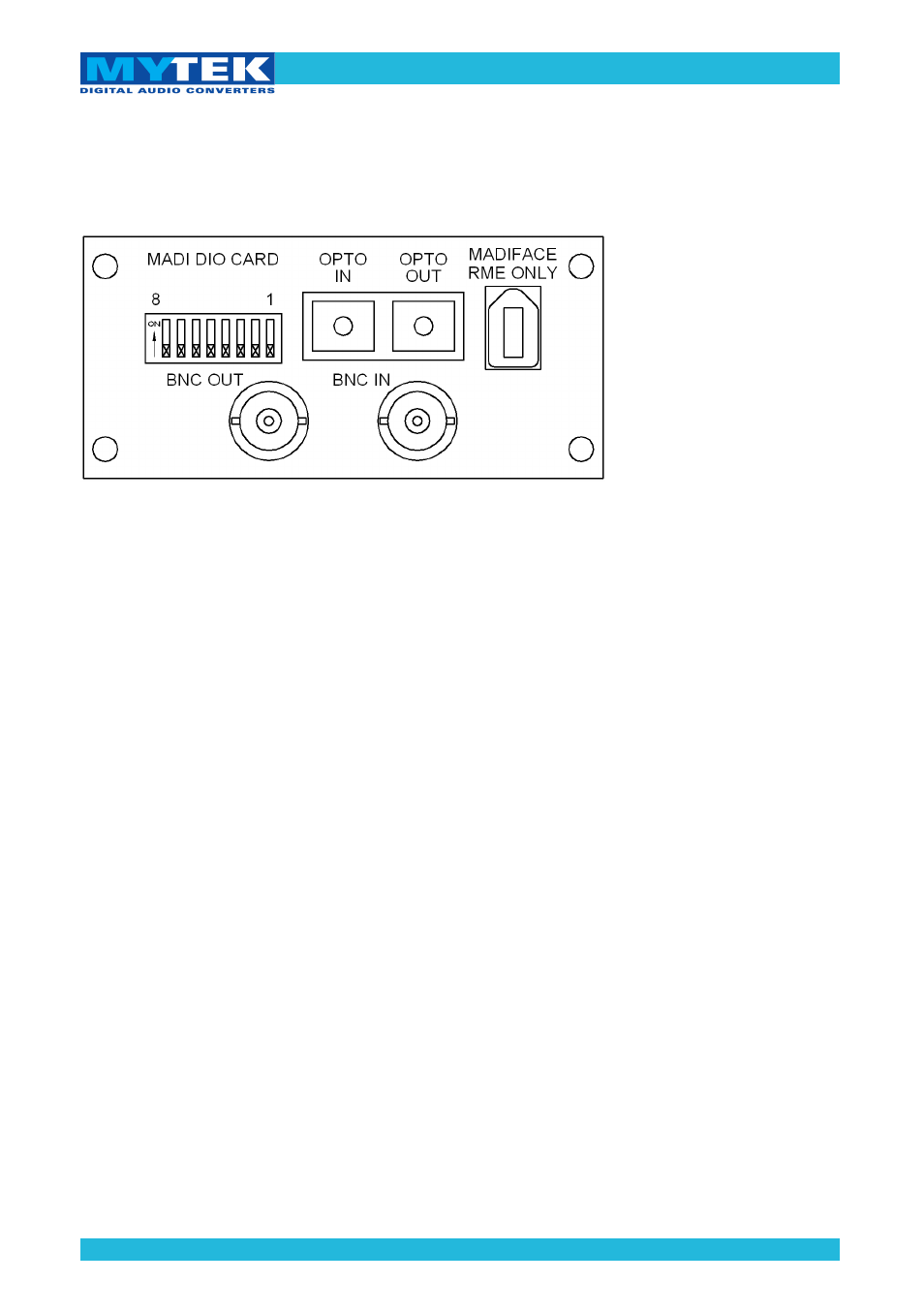

DipSwitch configuration
1,2,3 - channel position (transmitter and receiver)
1 – OFF , 2 – OFF , 3 – OFF: channels 1 – 8
1 – ON , 2 – OFF , 3 – OFF: channels 9 - 16
1 – OFF , 2 – ON , 3 – OFF: channels 17 - 24
1 – ON , 2 – ON , 3 – OFF: channels 25 - 32
1 – OFF , 2 – OFF , 3 – ON: channels 33 – 40
1 – ON , 2 – OFF , 3 – ON: channels 41 - 48
1 – OFF , 2 – ON , 3 – ON: channels 49 - 56
1 – ON , 2 – ON , 3 – ON: channels 57 – 64
4 – format (64 channels - OFF , 56 channels - ON)
5 – frame (48k – OFF , 96k – ON)
7,8 – input selector:
7-OFF , 8-OFF – MADIFACE
7-OFF , 8-ON – BNC
7-ON , 8-ON – OPT
