Mytek DIO MADI Card – User Manual
Connecting Clock Signal
If the DIO MADI card is connected to a device that
has no external input clock, the device should be set
to Slave or AutoSync mode.
Our recommended setup is to use the Mytek
8X192ADDA as the clock source feeding all other
converters from it's multiple clock outputs to all
slave devices in a star configuration.

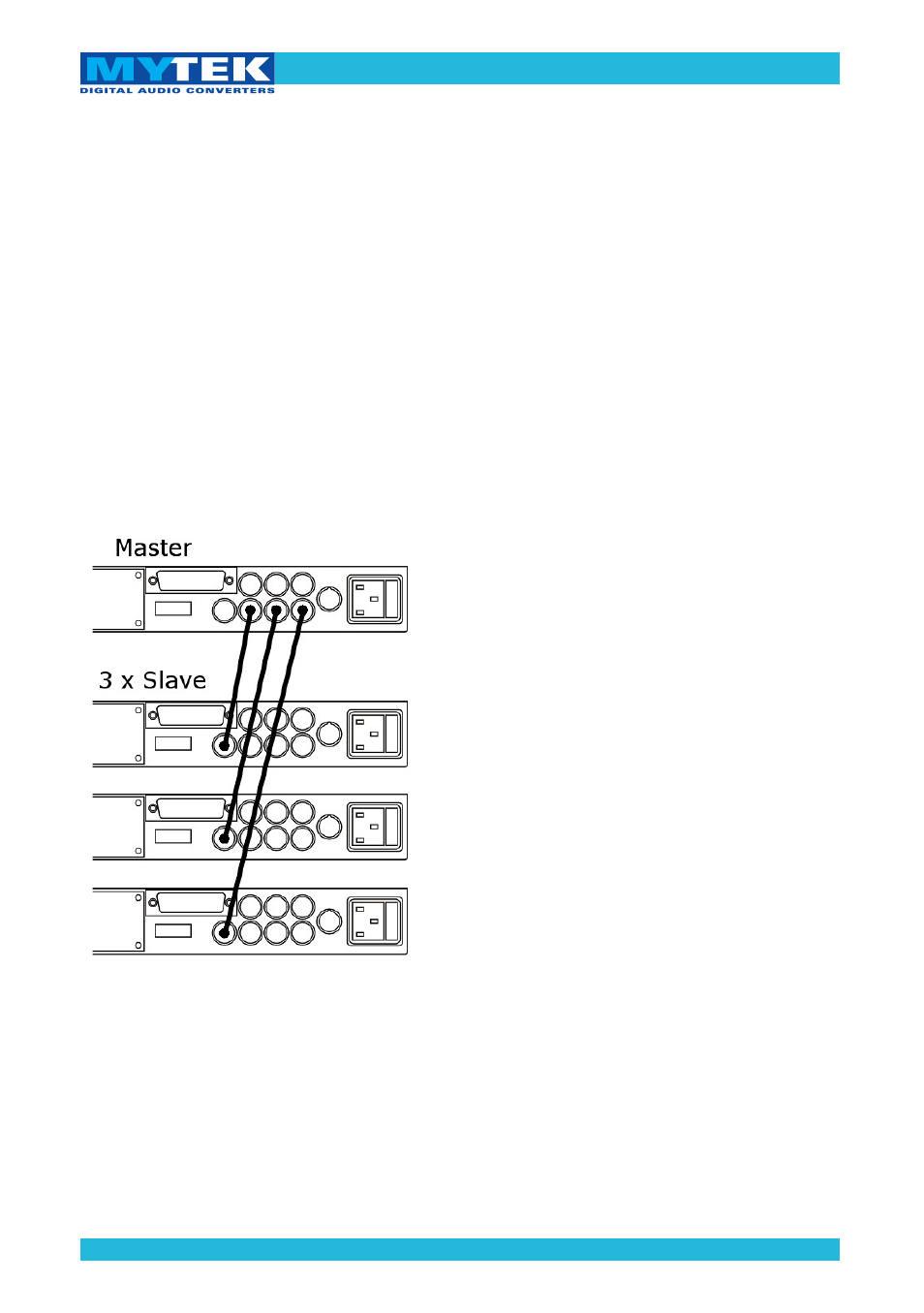

Clock connections
Page: 11/24
