Millennia Media HV-3R page 20 of 40



Link Matrix

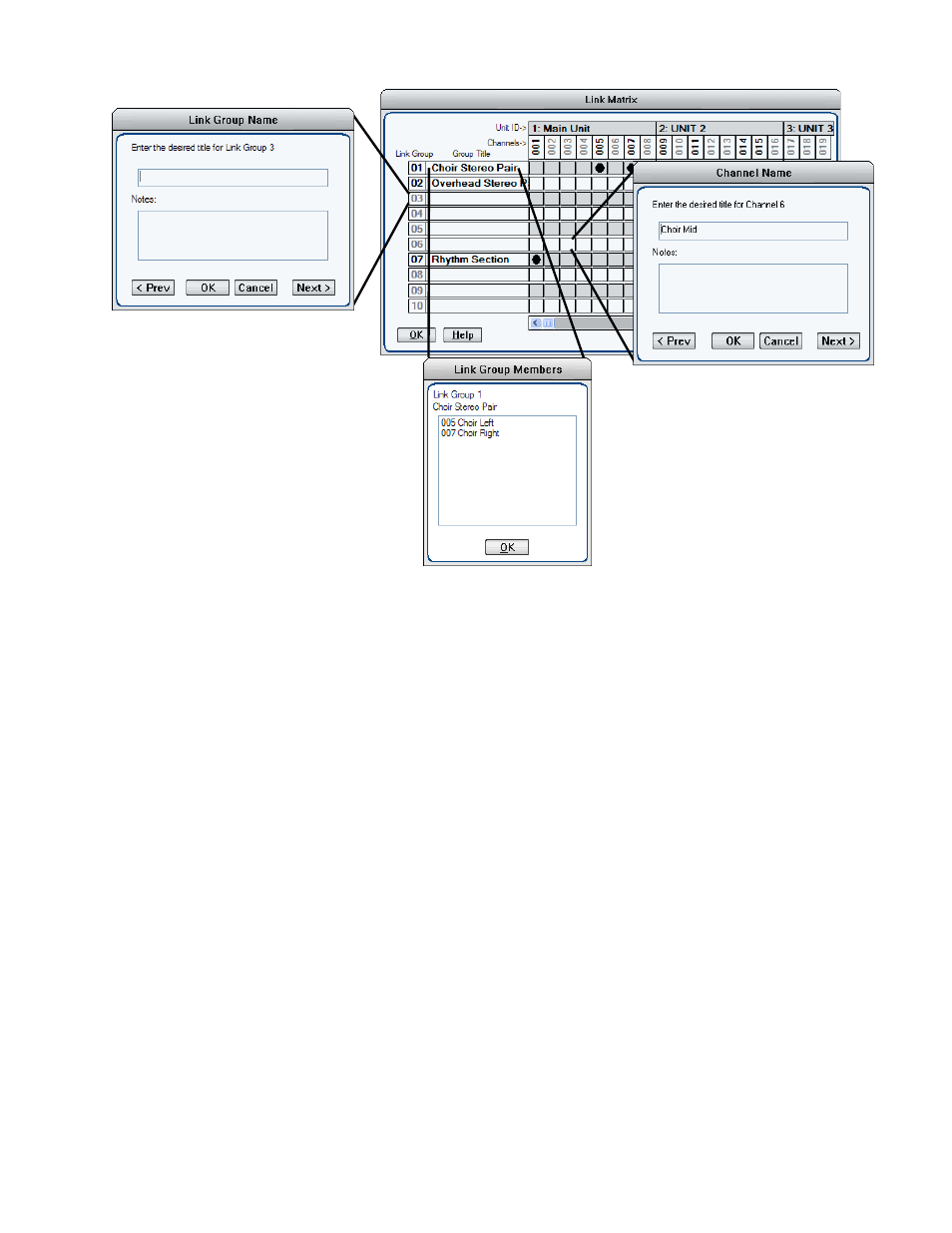

The Link Matrix dialog box provides for easier linking
and unlinking of channels and can be accessed via
shortcut ctrl-L or from the pull down menus
(Edit>Link).

Name a Link Group by right clicking a Link
Group number.

See the members of a group by double clicking
the group’s name.

Right click a link to bring up the channel naming
dialog box.
