MAXSANTAFEEVSYS User Manual
4) Plot View Options:
i. Plot Counts: This option plots the ADC code itself on the Y-axis with the number of samples
on the x-axis.
ii. Plot Volts: This option plots the converted Voltage value.
iii. Plot Current: Plots the current measured across the 250
Ω shunt resistance on the AIN2 input.
iv. Plot Temp: Reserved for future use.

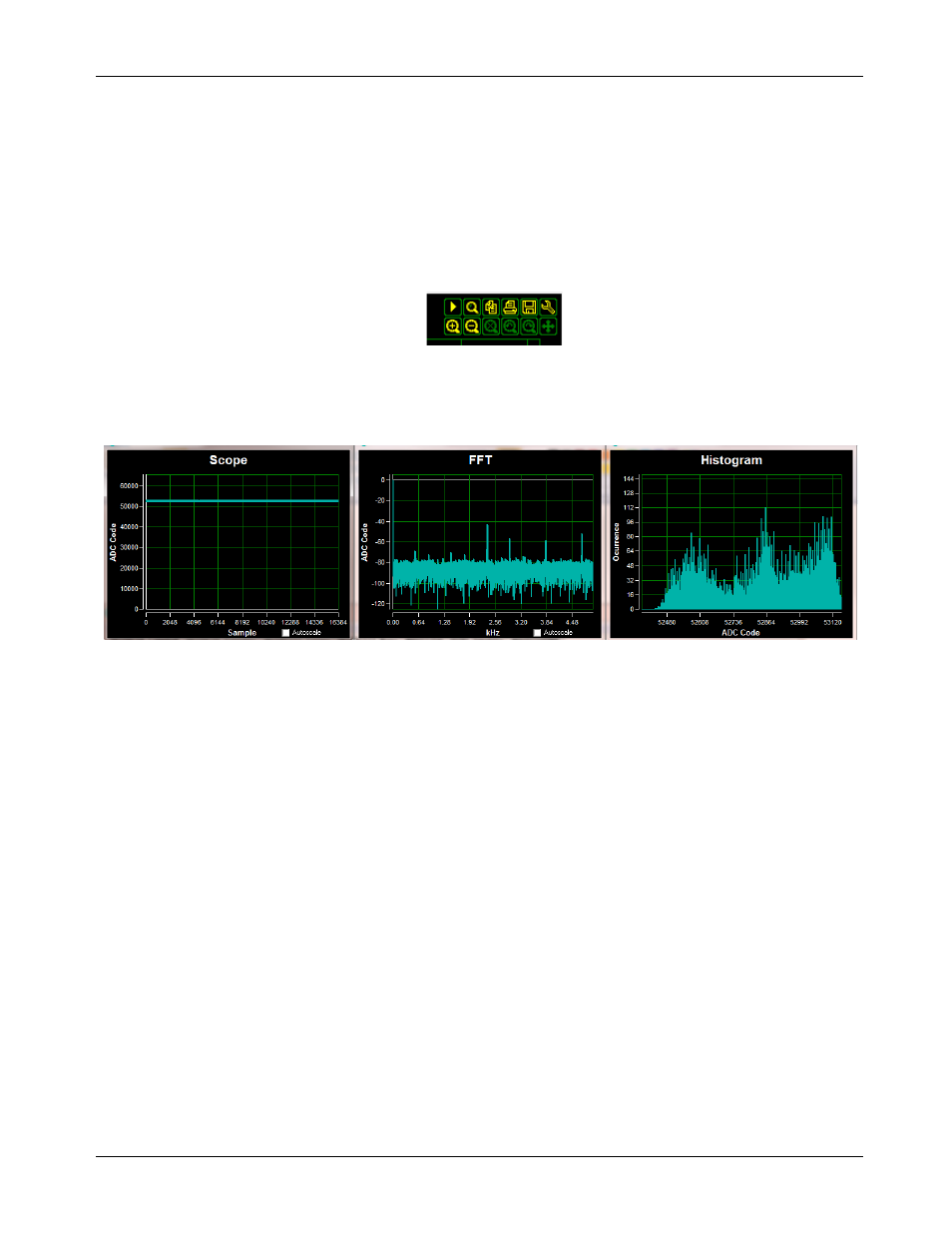

5) Scope Options: Holding the mouse cursor over the top right corner of the Scope or the Histogram plot
will display the plot settings options available to the user which includes Play/Pause, Zoom in/out, Pan,
Print, Save and waveform settings.
6) Plot in Windows: This pushbutton allows user to view the following displays in separate windows:
I. ADC Code of the current reading
II. FFT measurement
III. Histogram Measurement
Rev 0 10
