MAX11300PMB1 Peripheral Module and Munich (USB2PMB1) Adapter Board Quick Start Guide

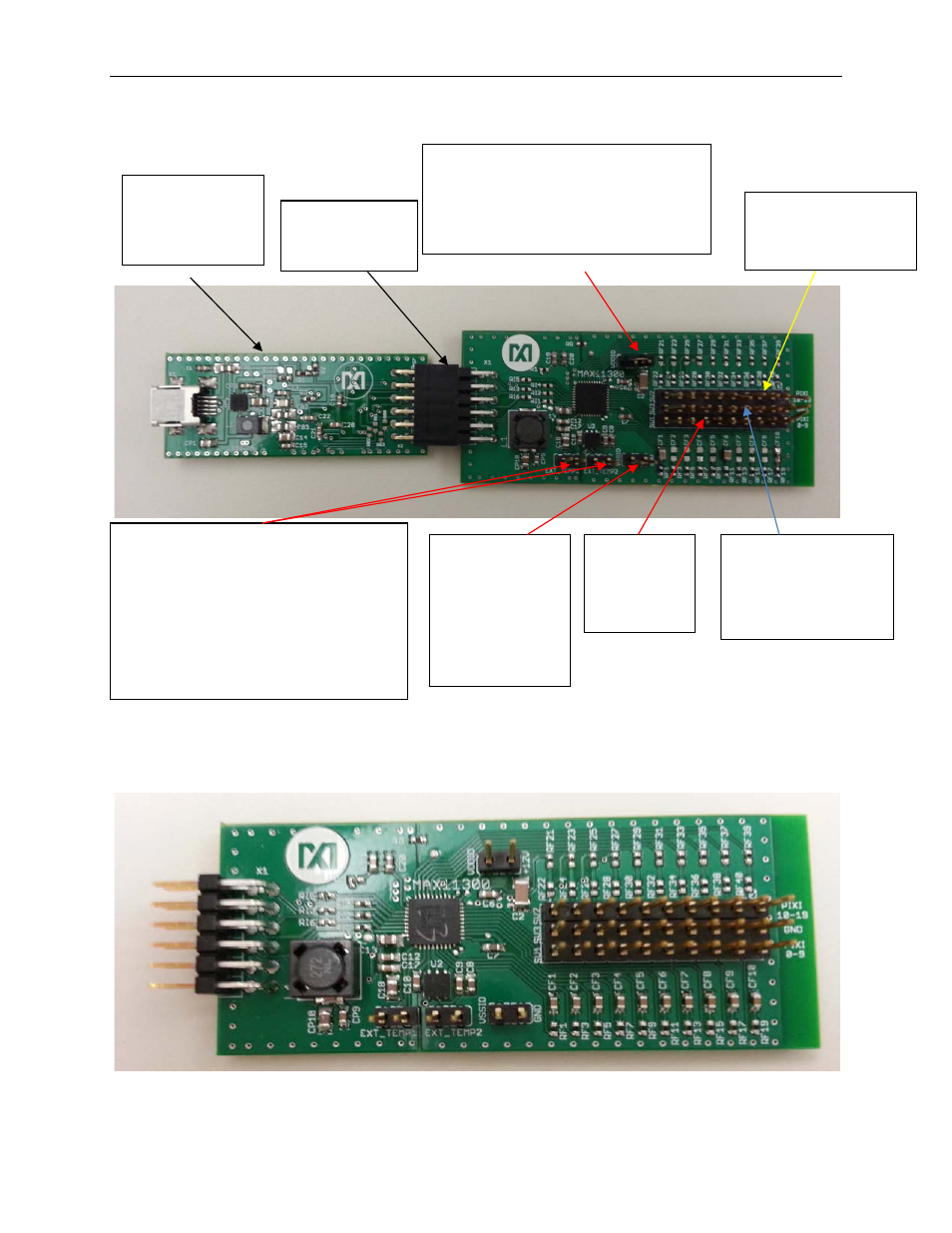

Figure 1. MAX11300PMB1 Connected to Munich Adapter Board

Figure 2. MAX11300PMB1 Board

THE MUNICH
BOARD
(USB2PMB1)

Pmod
CONNECTORS

VDDIO PROVIDES ON-BOARD +12V
TO AVDD OF THE MAX11300. FOR
BEST PERFORMANCE, USE +12.5V
EXTERNAL POWER SUPPLY.

P10 TO P19 (FROM
LEFT TO RIGHT)

VSSIO.
CONNECT TO
GND (OR -12V
EXTERNAL
POWER
SUPPLY FOR
BIPOLAR.

EXTERNAL TEMPERATURE-
SENSOR HEADERS. CONNECT THE
BASE AND COLLECTOR OF DIODE-
CONNECTED TRANSISTORS SUCH
AS THE 2N3906 TO TEMP1 OR
TEMP2 PIN AND THE EMITTER TO
EXT PIN TO MEASURE THE
EXTERNAL TEMPERATURE.

P0 TO P9
(FROM
LEFT TO
RIGHT)

ALL PINS IN THE
MIDDLE ROW ARE
CONNECTED TO
GND.
