MAX11300PMB1 Peripheral Module and Munich (USB2PMB1) Adapter Board Quick Start Guide

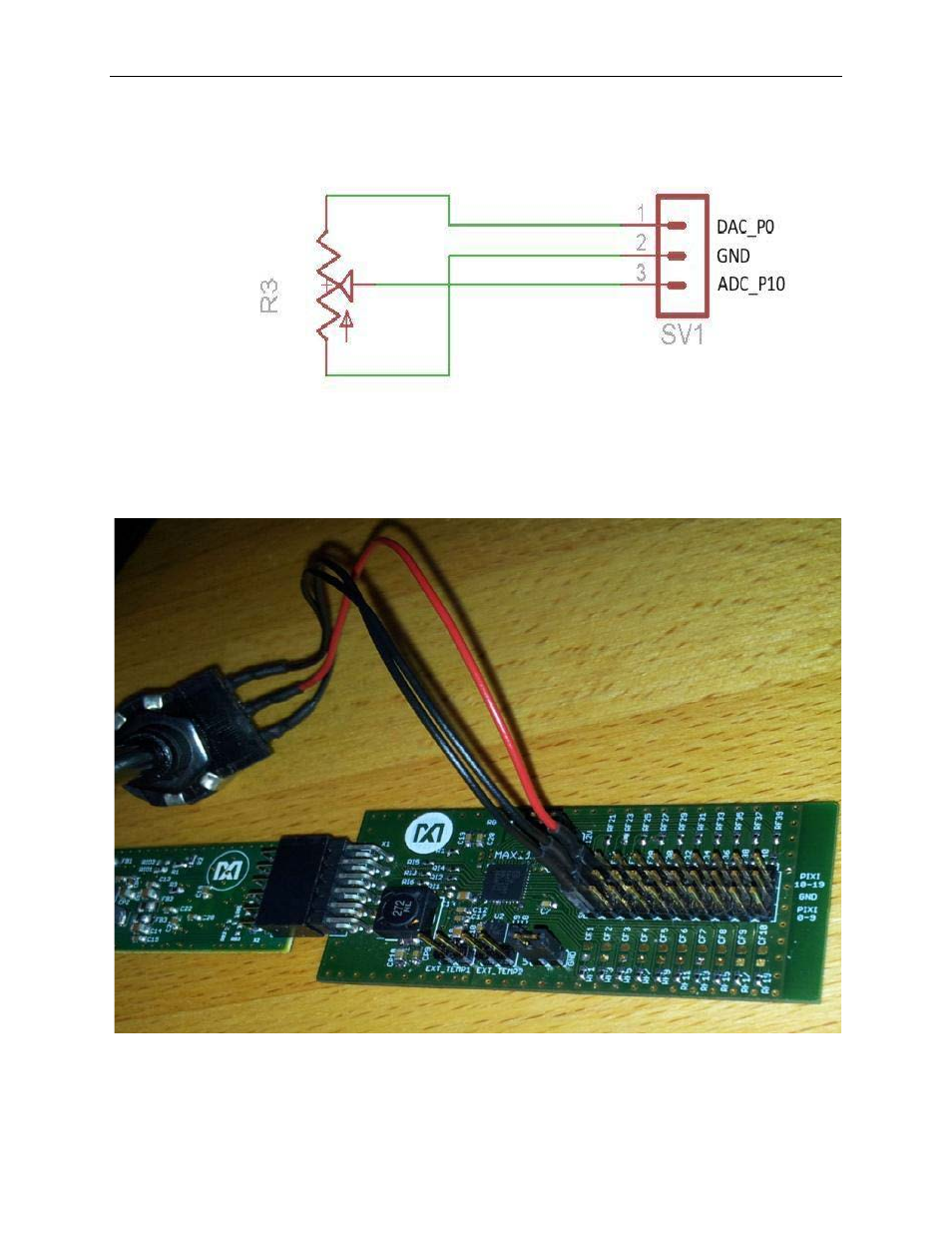

Figure 28. Potentiometer Schematic Connection

to MAX11300PMB Ports

Figure 29. Potentiometer Setup for Demonstrating the

Behavior of a DAC with ADC Monitoring

27
