EMB-M3 User`s Manual 33

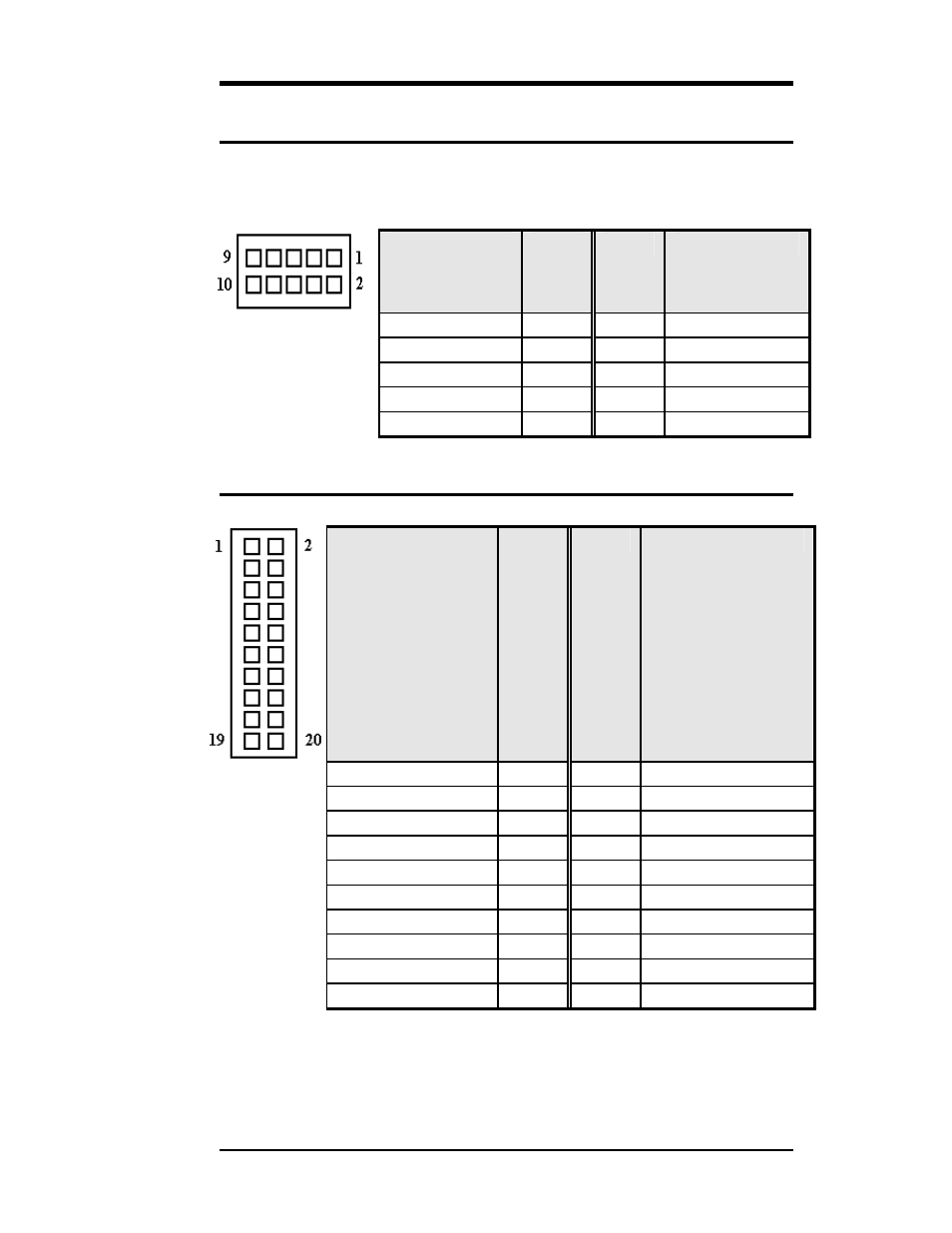

DIO1 and DIO2 Connectors
DIO port support 8 digital I/O bits. Each bit can be configured as Input
or outputs individually. All bits are 5V tolerant.
Signal Name Pin # Pin # Signal Name
DIO_0 1 2 DIO_1
DIO_2 3 4 DIO_3
DIO_4 5 6 DIO_5
DIO_6 7 8 DIO_7
GND 9 10 +5V
AUDIO_INT Connector
Signal Name Pin # Pin # Signal Name
LINE-IN-L 1 2 LINE-IN-R
GND 3 4 GND
LINE-OUT-L 5 6 LINE-OUT-R
GND 7 8 GND
MIC1-IN 9 10 MIC2-IN
GND 11 12 GND
LFE-OUT 13 14 CENTER-OUT
SURR-OUT-L 15 16 SURR-OUT-R
GND 17 18 GND
SPDIF-OUT 19 20 SPDIF-IN
