18 EMB-M3 User`s Manual

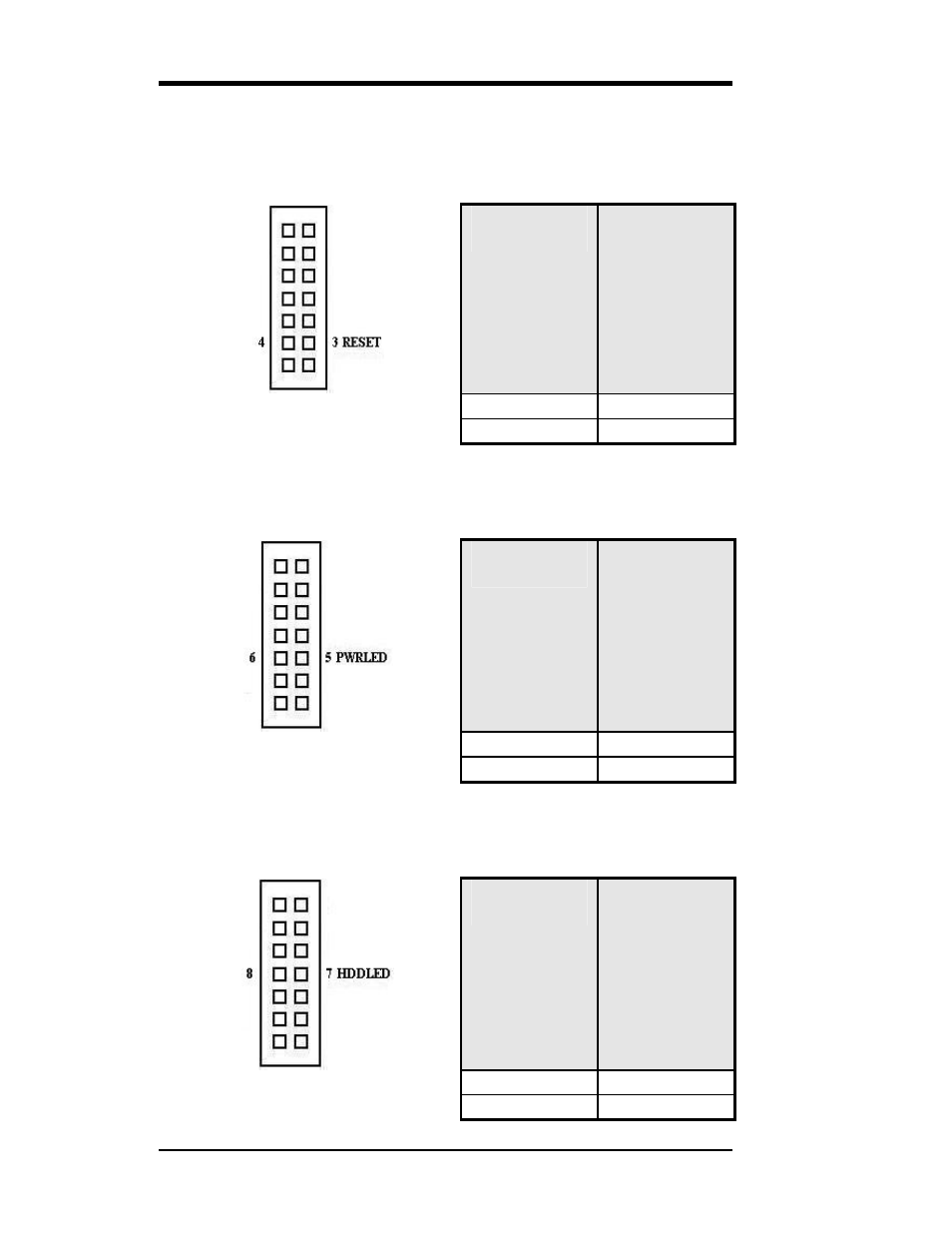

RESET Switch
The reset switch allows the user to reset the system without turning
the main power switch Off and then On. Orientation is not required
when making a connection to this header.
RESET
Pin #
Signal Name
3 Reset
4 Ground
Power-On LED
This connector allows users to connect to Front Panl Power
indicator.
PWR LED
Pin #
Signal Name
5 +5V
6 Ground
IDE Hard Disk LED Connector
This connector connects to the hard drive activity LED on control
panel. This LED will flash when the HDD is being accessed.
IDE LED
Pin #
Signal Name
7 IDE_ACT
8 Ground
