EMB-M3 User`s Manual 19
ATX Power ON/OFF Button
This 2-pin connector acts as the “Power Supply On/Off Switch”
on the SBC card. When pressed, the switch will force the SBC
card to power on. When pressed again, it will force the SBC card
to power off.

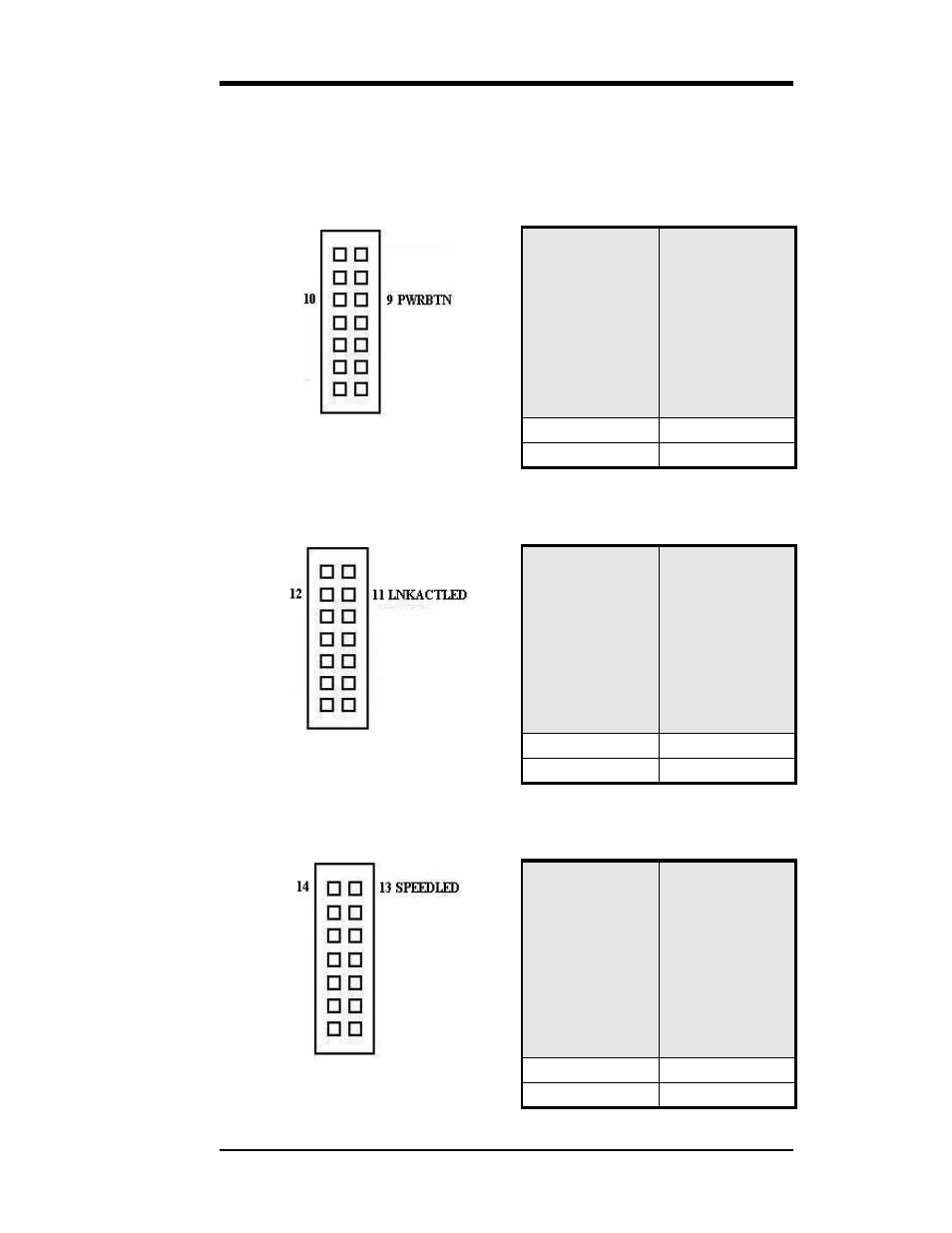

PWR BTN
Pin #
Signal Name
9 PWR-BTN
10 GND
LNKACTLED
LNKACT
LED
Pin #
Signal Name
11 ACTLED-
12 LNKLED-
SPEEDLED
SPEED LED
Pin #
Signal Name
13 SPDLED+
14 SPDLED-
