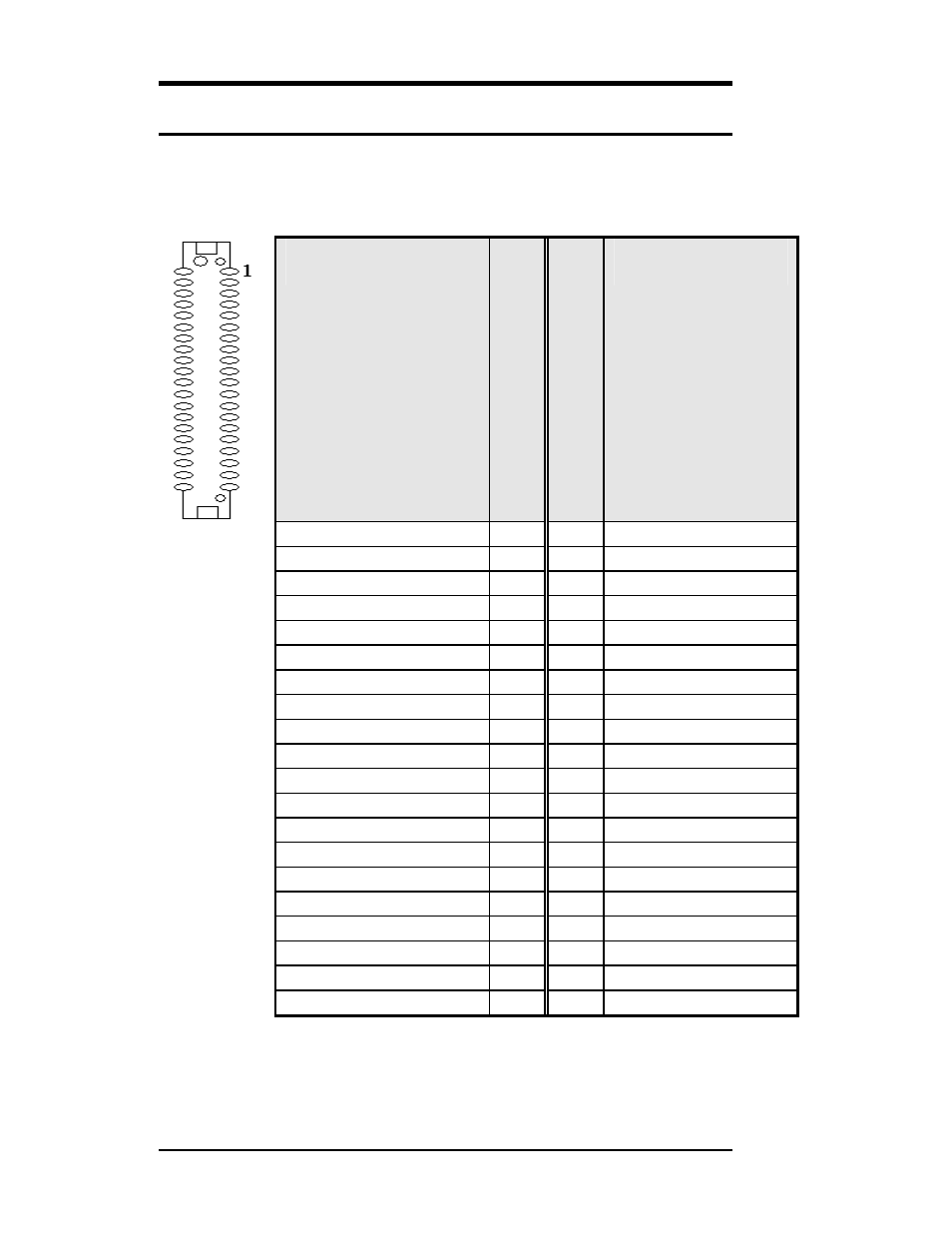

LVDS LCD Connector
The LCD panel, inverter for LCD LAMP, Touch-screen Serial
Interface must be connected to this LVDS header, using the below
described connector:
Signal
Name
Pin
#
Pin
#
Signal
Name
+12V/+5V 1 2 +12V/+5V
GND 3 4 GND
LCDVDD 5V/3.3V 5 6 LCDVDD 5V/3.3V
GND 7 8 GND
BRIGHTNES 9 10 BCKLITE_ON
LVDS_GND 11 12 LVDS_GND
CHA_TX0+ 13 14 CHB_TX0+
CHA_TX0- 15 16 CHB_TX0-
LVDS_GND 17 18 LVDS_GND
CHA_TX1+ 19 20 CHB_TX1+
CHA_TX1- 21 22 CHB_TX1-
LVDS_GND 23 24 LVDS_GND
CHA_TX2+ 25 26 CHB_TX2+
CHA_TX2- 27 28 CHB_TX2-
LVDS_GND 29 30 LVDS_GND
CHA_TXC+ 31 32 CHB_TXC+
CHA_TXC- 33 34 CHB_TXC-
LVDS_GND 35 36 LVDS_GND
CHA_TX3+ 37 38 CHB_TX3+
CHA_TX3- 39 40 CHB_TX3-
