BRIM-A6 User’s Guide Page 4-1
CHAPTER 4
LANVIEW LEDs
This chapter describes how to use LANVIEW LEDs to monitor BRIM
status and diagnose BRIM problems. Figure 4-1 shows the location of
each of the BRIM-A6 LEDs as well as the APIM LEDs.

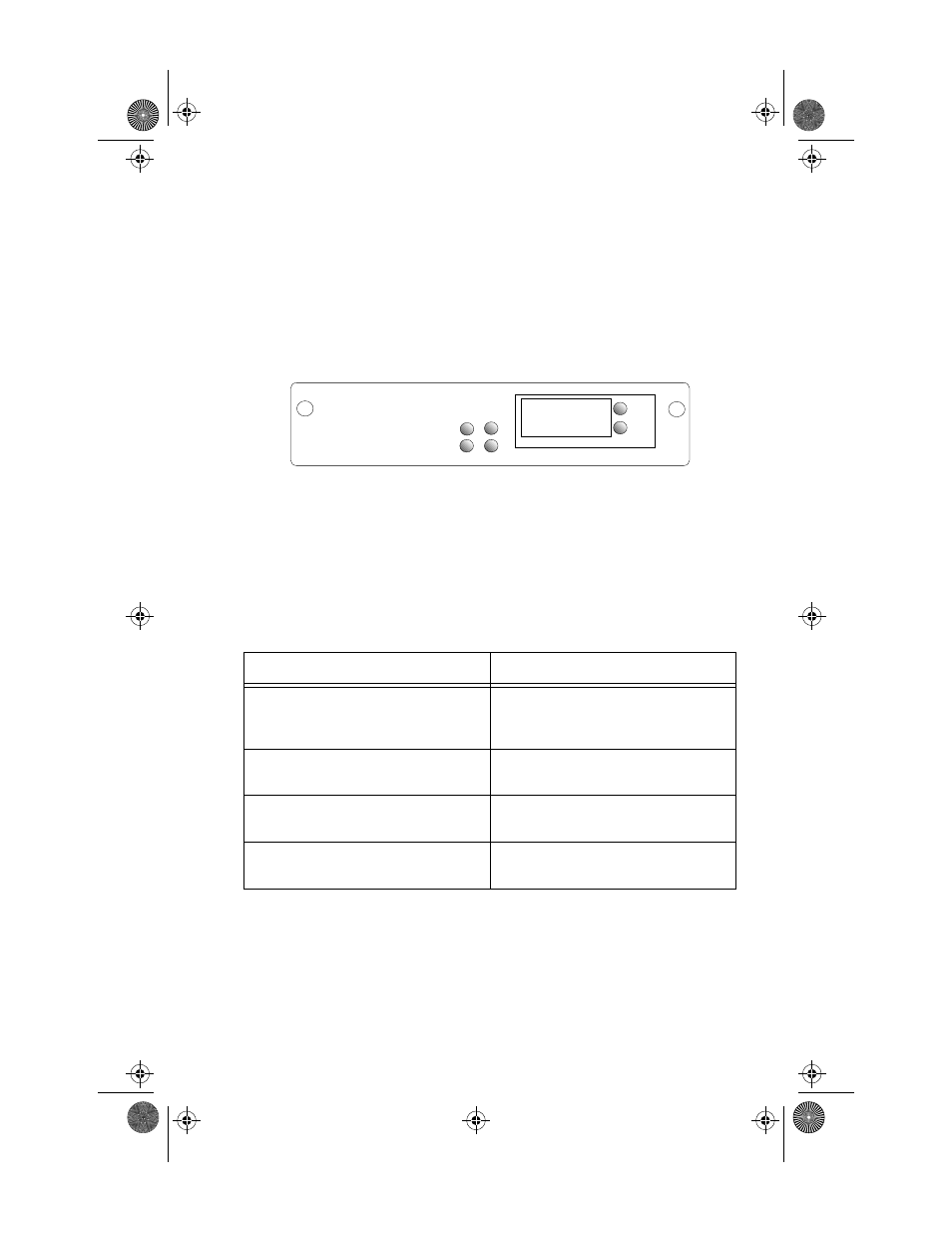

Figure 4-1 The BRIM-A6
4.1 BRIM-A6 LEDs
Table 4-1 describes each of the BRIM-A6 LEDs.
Table 4-1 BRIM LEDs
LED Definition
STS
(Status) Green - Board OK.
Red - Board Error.
Yellow - Standby.
PWR
(Power) Green (on) - Power is on.
Off - No power.
XMT
(Transmit) Green - Cells being transmitted.
RCV
(Receive) Yellow - Cells being received.
APIM
LNK
STS
PWR
XMT RCV
STS
BRIM-A6
131103
